SDO HMI 2014-09-27 22:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 17.91 | 0.00 | 9.36 | 7.47 | 206.70 | -18.72 | 87.07 | 0.3203 | 491.7 | 505.3 | |
|
previous
or next observation for the same group /

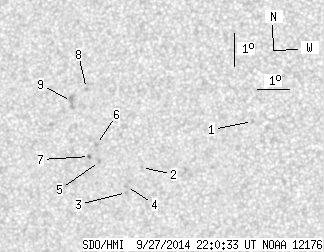

back to the solar disc SDO HMI 2014-09-27 22:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.15 | 0.00 | 0.59 | 8.03 | 211.37 | -14.04 | 84.37 | 0.2425 | -800.0 | -617.6 | |
| 0.00 | 1.32 | 0.00 | 0.69 | 6.54 | 207.93 | -17.48 | 90.07 | 0.2998 | -829.0 | -515.1 | |
| 0.00 | 1.41 | 0.00 | 0.73 | 5.77 | 207.48 | -17.94 | 92.51 | 0.3080 | 858.0 | 693.2 | |
| 0.00 | 1.50 | 0.00 | 0.78 | 5.95 | 207.48 | -17.94 | 91.92 | 0.3079 | 924.0 | 703.8 | |
| 0.00 | 1.41 | 0.00 | 0.74 | 6.67 | 206.59 | -18.83 | 89.50 | 0.3219 | 907.0 | 678.6 | |
| 0.00 | 1.76 | 0.00 | 0.92 | 7.18 | 206.47 | -18.94 | 87.91 | 0.3237 | 881.0 | 635.2 | |
| 0.00 | 1.68 | 0.00 | 0.88 | 6.81 | 206.27 | -19.15 | 89.04 | 0.3272 | 878.0 | 694.2 | |
| 0.00 | 1.15 | 0.00 | 0.60 | 8.85 | 206.07 | -19.34 | 82.84 | 0.3313 | 787.0 | 639.7 | |
| 0.00 | 6.53 | 0.00 | 3.43 | 8.44 | 205.61 | -19.81 | 84.16 | 0.3384 | 819.0 | 671.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
