SDO HMI 2014-09-27 23:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.53 | 12.35 | 0.38 | 8.61 | -14.47 | 185.36 | -39.51 | 118.72 | 0.7044 | -89.9 | -98.2 | |
|
previous
or next observation for the same group /

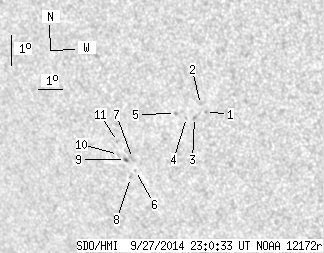

back to the solar disc SDO HMI 2014-09-27 23:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.06 | 0.00 | 0.71 | -13.36 | 187.62 | -37.25 | 118.68 | 0.6735 | 577.0 | 521.9 | |
| 0.00 | 0.79 | 0.00 | 0.53 | -13.15 | 187.46 | -37.40 | 118.30 | 0.6741 | 201.0 | 262.0 | |
| 0.00 | 1.50 | 0.00 | 1.01 | -13.59 | 187.15 | -37.72 | 118.68 | 0.6801 | 831.0 | 677.3 | |
| 0.00 | 0.53 | 0.00 | 0.36 | -13.61 | 186.83 | -38.04 | 118.51 | 0.6838 | 340.0 | 297.2 | |
| 0.00 | 1.41 | 0.00 | 0.96 | -13.52 | 186.41 | -38.45 | 118.13 | 0.6879 | 673.0 | 505.3 | |
| 0.00 | 0.71 | 0.00 | 0.50 | -15.51 | 184.37 | -40.50 | 119.44 | 0.7208 | -434.0 | -434.1 | |
| 0.00 | 2.47 | 0.00 | 1.76 | -15.12 | 184.34 | -40.53 | 118.94 | 0.7191 | -492.0 | -583.1 | |
| 0.00 | 0.97 | 0.00 | 0.70 | -15.75 | 184.10 | -40.76 | 119.59 | 0.7249 | -603.0 | -546.6 | |
| 0.53 | 1.68 | 0.38 | 1.20 | -15.18 | 184.04 | -40.83 | 118.83 | 0.7226 | -689.5 | -595.0 | |
| 0.00 | 0.26 | 0.00 | 0.19 | -15.04 | 183.78 | -41.09 | 118.51 | 0.7246 | -542.0 | -563.3 | |
| 0.00 | 0.97 | 0.00 | 0.69 | -14.62 | 183.84 | -41.03 | 118.01 | 0.7218 | -622.0 | -542.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
