SDO HMI 2014-09-27 23:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 238.08 | 1047.95 | 148.66 | 655.67 | 14.88 | 262.16 | 37.29 | 285.72 | 0.6099 | -44.6 | -67.0 | |
|
previous
or next observation for the same group /

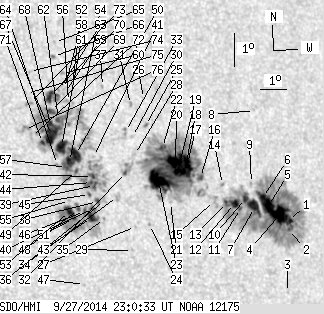

back to the solar disc SDO HMI 2014-09-27 23:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.85 | 335.41 | 3.22 | 220.03 | 13.28 | 266.73 | 41.86 | 282.27 | 0.6670 | -709.7 | -345.3 | |
| 0.97 | -1.00 | 0.64 | -1.00 | 13.01 | 266.67 | 41.80 | 281.87 | 0.6660 | -731.0 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.70 | 11.12 | 266.27 | 41.40 | 279.06 | 0.6594 | -288.0 | -328.7 | |
| 22.50 | -1.00 | 14.85 | -1.00 | 13.48 | 266.40 | 41.53 | 282.62 | 0.6630 | -960.1 | 999999 | |
| 13.77 | -1.00 | 9.03 | -1.00 | 13.79 | 266.01 | 41.14 | 283.13 | 0.6584 | -984.3 | 999999 | |
| 6.00 | -1.00 | 3.93 | -1.00 | 14.05 | 265.82 | 40.95 | 283.56 | 0.6564 | -833.7 | 999999 | |
| 13.32 | -1.00 | 8.67 | -1.00 | 13.77 | 265.43 | 40.57 | 283.19 | 0.6510 | -991.3 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.64 | 16.69 | 266.13 | 41.26 | 287.48 | 0.6646 | -416.0 | -411.5 | |
| 0.00 | 1.06 | 0.00 | 0.69 | 14.50 | 265.47 | 40.60 | 284.30 | 0.6525 | -635.0 | -475.1 | |
| 4.50 | -1.00 | 2.92 | -1.00 | 14.07 | 265.13 | 40.26 | 283.70 | 0.6475 | -770.0 | 999999 | |
| 1.15 | -1.00 | 0.74 | -1.00 | 13.79 | 264.86 | 40.00 | 283.30 | 0.6437 | -952.7 | 999999 | |
| 5.47 | -1.00 | 3.52 | -1.00 | 13.95 | 264.66 | 39.79 | 283.59 | 0.6413 | -1011.5 | 999999 | |
| 1.41 | -1.00 | 0.91 | -1.00 | 14.01 | 264.35 | 39.48 | 283.73 | 0.6373 | -912.4 | 999999 | |
| 0.00 | 1.50 | 0.00 | 0.96 | 14.56 | 264.30 | 39.44 | 284.60 | 0.6376 | -802.0 | -698.3 | |
| 0.00 | 7.41 | 0.00 | 4.72 | 14.10 | 263.88 | 39.02 | 283.96 | 0.6314 | -804.0 | -682.0 | |
| 2.21 | 280.96 | 1.40 | 176.08 | 14.84 | 263.48 | 38.61 | 285.19 | 0.6274 | 252.4 | -415.4 | |
| 11.91 | -16.00 | 7.52 | -16.00 | 15.30 | 263.06 | 38.19 | 286.01 | 0.6228 | -868.7 | 999999 | |
| 6.35 | -16.00 | 4.00 | -16.00 | 15.03 | 262.88 | 38.02 | 285.63 | 0.6199 | -1123.1 | 999999 | |
| 5.47 | -16.00 | 3.43 | -16.00 | 15.08 | 262.62 | 37.75 | 285.77 | 0.6165 | -1472.5 | 999999 | |
| 17.65 | -16.00 | 11.08 | -16.00 | 15.39 | 262.60 | 37.74 | 286.27 | 0.6170 | -1227.3 | 999999 | |
| 0.00 | 0.71 | 0.00 | 0.44 | 14.17 | 262.16 | 37.29 | 284.39 | 0.6087 | 427.0 | 267.2 | |
| 3.71 | -16.00 | 2.32 | -16.00 | 15.85 | 262.19 | 37.33 | 287.11 | 0.6126 | -756.9 | 999999 | |
| 24.27 | -16.00 | 15.07 | -16.00 | 14.86 | 261.83 | 36.96 | 285.60 | 0.6056 | 534.1 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.54 | 13.57 | 261.23 | 36.37 | 283.58 | 0.5952 | 603.0 | 541.8 | |
| 0.00 | 2.03 | 0.00 | 1.26 | 16.56 | 261.68 | 36.82 | 288.40 | 0.6076 | -857.0 | -711.3 | |
| 0.00 | 0.97 | 0.00 | 0.61 | 17.38 | 261.79 | 36.93 | 289.70 | 0.6113 | -580.0 | -419.1 | |
| 0.00 | 0.79 | 0.00 | 0.49 | 13.54 | 260.69 | 35.82 | 283.64 | 0.5878 | 619.0 | 517.2 | |
| 0.00 | 1.41 | 0.00 | 0.87 | 15.71 | 261.07 | 36.20 | 287.19 | 0.5974 | -428.0 | -413.8 | |
| 0.00 | 0.97 | 0.00 | 0.59 | 12.83 | 260.45 | 35.59 | 282.48 | 0.5834 | 570.0 | 486.3 | |
| 0.00 | 1.06 | 0.00 | 0.65 | 16.26 | 261.11 | 36.24 | 288.09 | 0.5993 | -229.0 | -155.2 | |
| 0.00 | 1.94 | 0.00 | 1.20 | 17.24 | 261.25 | 36.38 | 289.64 | 0.6037 | -583.0 | -619.1 | |
| 1.24 | 9.09 | 0.76 | 5.57 | 15.19 | 260.62 | 35.75 | 286.45 | 0.5901 | 647.9 | 62.6 | |
| 0.00 | 2.56 | 0.00 | 1.58 | 16.43 | 260.87 | 36.01 | 288.44 | 0.5966 | -474.0 | -653.2 | |
| 0.00 | 4.15 | 0.00 | 2.52 | 14.49 | 260.18 | 35.31 | 285.38 | 0.5826 | 51.0 | -108.3 | |
| 0.00 | 0.97 | 0.00 | 0.59 | 13.86 | 259.57 | 34.70 | 284.44 | 0.5730 | 501.0 | 386.9 | |
| 0.00 | 2.82 | 0.00 | 1.71 | 14.40 | 259.67 | 34.80 | 285.35 | 0.5754 | 46.0 | 39.9 | |
| 0.00 | 1.24 | 0.00 | 0.76 | 17.86 | 260.30 | 35.43 | 290.98 | 0.5932 | 561.0 | 443.5 | |
| 1.50 | 3.09 | 0.90 | 1.86 | 14.39 | 259.40 | 34.53 | 285.40 | 0.5717 | 726.9 | 520.0 | |
| 2.21 | 251.31 | 1.33 | 150.78 | 14.88 | 259.37 | 34.51 | 286.26 | 0.5725 | 753.2 | 467.7 | |
| 1.32 | 84.18 | 0.80 | 50.25 | 14.19 | 259.21 | 34.35 | 285.10 | 0.5687 | 790.8 | 485.6 | |
| 0.00 | 1.15 | 0.00 | 0.69 | 15.76 | 259.50 | 34.64 | 287.73 | 0.5765 | 357.0 | 261.1 | |
| 1.59 | -39.00 | 0.96 | -39.00 | 15.16 | 259.35 | 34.48 | 286.74 | 0.5729 | 813.4 | 999999 | |
| 5.82 | -40.00 | 3.50 | -40.00 | 13.93 | 259.09 | 34.23 | 284.67 | 0.5665 | 900.5 | 999999 | |
| 0.97 | -39.00 | 0.58 | -39.00 | 14.98 | 259.28 | 34.41 | 286.45 | 0.5714 | 960.9 | 999999 | |
| 0.71 | 1.85 | 0.42 | 1.11 | 14.62 | 259.14 | 34.27 | 285.87 | 0.5687 | 864.5 | 747.5 | |
| 1.06 | -40.00 | 0.63 | -40.00 | 14.12 | 258.86 | 34.00 | 285.07 | 0.5637 | 819.8 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.58 | 11.93 | 258.52 | 33.65 | 281.24 | 0.5549 | 473.0 | 432.2 | |
| 0.97 | 3.71 | 0.58 | 2.21 | 14.20 | 258.65 | 33.79 | 285.26 | 0.5610 | 995.3 | 756.8 | |
| 0.88 | -39.00 | 0.53 | -39.00 | 15.38 | 258.79 | 33.92 | 287.29 | 0.5657 | 896.4 | 999999 | |
| 11.29 | -39.00 | 6.78 | -39.00 | 15.86 | 258.84 | 33.98 | 288.12 | 0.5678 | 841.0 | 999999 | |
| 1.50 | -40.00 | 0.89 | -40.00 | 13.94 | 258.42 | 33.56 | 284.86 | 0.5572 | 1034.8 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.59 | 17.99 | 259.17 | 34.31 | 291.64 | 0.5789 | 389.0 | 262.6 | |
| 6.97 | -40.00 | 4.15 | -40.00 | 14.16 | 258.31 | 33.44 | 285.28 | 0.5561 | 1099.9 | 999999 | |
| 7.59 | -39.00 | 4.54 | -39.00 | 15.67 | 258.58 | 33.71 | 287.87 | 0.5637 | 1092.9 | 999999 | |
| 0.00 | 1.41 | 0.00 | 0.84 | 14.49 | 258.37 | 33.50 | 285.86 | 0.5577 | 865.0 | 602.1 | |
| 0.00 | 3.88 | 0.00 | 2.34 | 17.49 | 258.91 | 34.04 | 290.89 | 0.5737 | -134.0 | 92.2 | |
| 3.09 | -39.00 | 1.85 | -39.00 | 15.49 | 258.43 | 33.57 | 287.61 | 0.5612 | 1026.1 | 999999 | |
| 0.00 | 1.32 | 0.00 | 0.80 | 17.89 | 258.84 | 33.98 | 291.60 | 0.5742 | 306.0 | 295.8 | |
| 0.00 | 0.88 | 0.00 | 0.53 | 17.71 | 258.77 | 33.90 | 291.32 | 0.5726 | 417.0 | 356.5 | |
| 0.00 | 1.50 | 0.00 | 0.91 | 18.35 | 258.87 | 34.01 | 292.37 | 0.5762 | 693.0 | 581.3 | |
| 9.97 | -39.00 | 5.96 | -39.00 | 16.14 | 258.37 | 33.50 | 288.76 | 0.5621 | 986.1 | 999999 | |
| 2.12 | -39.00 | 1.27 | -39.00 | 16.97 | 258.42 | 33.55 | 290.18 | 0.5654 | 736.7 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.64 | 17.88 | 258.61 | 33.75 | 291.67 | 0.5711 | 487.0 | 411.8 | |
| 0.00 | 1.59 | 0.00 | 0.95 | 15.61 | 258.12 | 33.25 | 287.91 | 0.5572 | 828.0 | 711.9 | |
| 0.00 | 0.97 | 0.00 | 0.59 | 19.32 | 258.79 | 33.92 | 294.02 | 0.5788 | 486.0 | 465.7 | |
| 0.00 | 1.85 | 0.00 | 1.12 | 18.89 | 258.65 | 33.78 | 293.37 | 0.5753 | 778.0 | 675.1 | |
| 17.56 | -39.00 | 10.48 | -39.00 | 16.53 | 258.07 | 33.20 | 289.55 | 0.5593 | 983.1 | 999999 | |
| 3.88 | -39.00 | 2.32 | -39.00 | 16.83 | 258.09 | 33.23 | 290.08 | 0.5606 | 954.2 | 999999 | |
| 2.91 | -39.00 | 1.74 | -39.00 | 17.23 | 258.17 | 33.31 | 290.73 | 0.5629 | 766.5 | 999999 | |
| 5.74 | 13.68 | 3.44 | 8.21 | 17.68 | 258.23 | 33.36 | 291.50 | 0.5653 | 838.2 | 645.3 | |
| 1.68 | -39.00 | 1.00 | -39.00 | 16.31 | 257.69 | 32.82 | 289.30 | 0.5534 | 1129.8 | 999999 | |
| 0.00 | 2.91 | 0.00 | 1.72 | 16.51 | 257.32 | 32.45 | 289.82 | 0.5490 | 821.0 | 691.5 | |
| 0.00 | 2.91 | 0.00 | 1.73 | 17.52 | 257.44 | 32.58 | 291.54 | 0.5542 | 770.0 | 690.4 | |
| 0.00 | 0.97 | 0.00 | 0.58 | 18.49 | 257.65 | 32.78 | 293.14 | 0.5606 | 704.0 | 584.8 | |
| 0.00 | 0.71 | 0.00 | 0.42 | 17.83 | 257.39 | 32.53 | 292.11 | 0.5547 | 823.0 | 705.2 | |
| 0.00 | 5.12 | 0.00 | 3.02 | 16.74 | 257.10 | 32.24 | 290.31 | 0.5468 | 723.0 | 677.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
