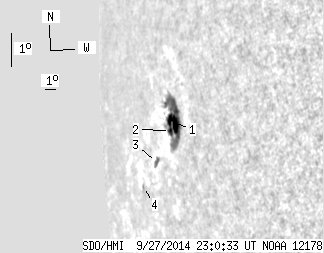

SDO HMI 2014-09-27 23:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.09 | 65.12 | 27.47 | 119.14 | -1.07 | 150.85 | -74.02 | 93.06 | 0.9636 | 366.3 | 178.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-27 23:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.12 | 58.86 | 19.85 | 105.51 | -0.82 | 151.22 | -73.65 | 92.86 | 0.9619 | 466.2 | 194.3 | |
| 2.38 | -1.00 | 4.34 | -1.00 | -1.10 | 150.87 | -74.00 | 93.10 | 0.9637 | 143.1 | 999999 | |
| 1.59 | 4.41 | 3.28 | 9.12 | -2.28 | 149.09 | -75.78 | 94.07 | 0.9721 | 131.1 | 52.2 | |
| 0.00 | 1.85 | 0.00 | 4.51 | -3.24 | 147.13 | -77.73 | 94.78 | 0.9799 | 122.0 | 63.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
