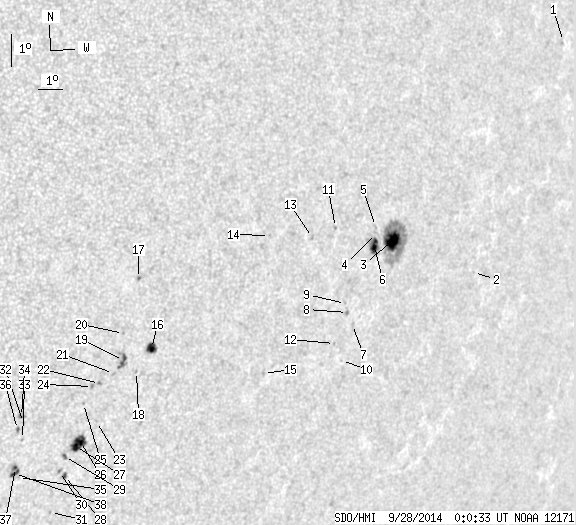

SDO HMI 2014-09-28 00:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 50.30 | 169.34 | 34.94 | 119.87 | -9.94 | 266.40 | 42.09 | 248.10 | 0.7121 | 185.6 | 132.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-28 00:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.53 | 0.00 | 0.45 | -2.88 | 278.19 | 53.87 | 261.52 | 0.8178 | 449.0 | 497.5 | |
| 0.00 | 0.88 | 0.00 | 0.72 | -9.64 | 274.68 | 50.36 | 252.35 | 0.7989 | 517.0 | 441.5 | |
| 16.24 | 75.10 | 12.18 | 56.45 | -8.28 | 270.70 | 46.39 | 252.59 | 0.7532 | 823.9 | 210.6 | |
| 0.00 | 2.03 | 0.00 | 1.50 | -8.00 | 269.96 | 45.65 | 252.67 | 0.7441 | 568.0 | 531.2 | |
| 0.00 | 0.88 | 0.00 | 0.65 | -7.77 | 269.89 | 45.57 | 252.93 | 0.7425 | 549.0 | 462.0 | |
| 7.85 | 14.21 | 5.81 | 10.50 | -8.37 | 269.93 | 45.61 | 252.18 | 0.7450 | 883.9 | 562.2 | |
| 0.00 | 2.12 | 0.00 | 1.58 | -10.78 | 269.38 | 45.07 | 248.87 | 0.7479 | 26.0 | 122.2 | |
| 0.00 | 1.77 | 0.00 | 1.30 | -10.38 | 269.09 | 44.78 | 249.26 | 0.7431 | 618.0 | 537.5 | |
| 0.00 | 0.79 | 0.00 | 0.58 | -10.08 | 268.95 | 44.64 | 249.57 | 0.7405 | 631.0 | 457.2 | |
| 0.00 | 0.26 | 0.00 | 0.20 | -11.89 | 269.12 | 44.81 | 247.36 | 0.7495 | 432.0 | 379.0 | |
| 0.00 | 1.41 | 0.00 | 1.01 | -7.65 | 268.16 | 43.84 | 252.40 | 0.7225 | 512.0 | 408.6 | |
| 0.00 | 0.88 | 0.00 | 0.65 | -11.32 | 268.71 | 44.39 | 247.89 | 0.7427 | 521.0 | 427.6 | |
| 0.00 | 1.59 | 0.00 | 1.12 | -7.88 | 267.22 | 42.91 | 251.70 | 0.7126 | 547.0 | 484.9 | |
| 0.00 | 0.97 | 0.00 | 0.66 | -7.67 | 265.43 | 41.12 | 251.20 | 0.6908 | 749.0 | 624.4 | |
| 0.00 | 1.41 | 0.00 | 1.00 | -12.02 | 265.85 | 41.54 | 245.59 | 0.7146 | 698.0 | 574.4 | |
| 6.09 | 8.30 | 3.98 | 5.43 | -10.86 | 261.21 | 36.90 | 244.52 | 0.6555 | 775.6 | 535.0 | |
| 0.00 | 1.68 | 0.00 | 1.07 | -8.62 | 260.44 | 36.12 | 247.26 | 0.6342 | 685.0 | 564.1 | |
| 0.00 | 1.24 | 0.00 | 0.81 | -11.55 | 260.74 | 36.43 | 243.26 | 0.6537 | 620.0 | 522.9 | |
| 2.38 | 6.62 | 1.54 | 4.28 | -11.16 | 260.19 | 35.88 | 243.45 | 0.6450 | 752.0 | 616.8 | |
| 0.00 | 0.97 | 0.00 | 0.62 | -10.31 | 260.07 | 35.76 | 244.59 | 0.6388 | 746.0 | 556.6 | |
| 0.00 | 1.50 | 0.00 | 0.97 | -11.55 | 259.87 | 35.55 | 242.69 | 0.6434 | 145.0 | 143.6 | |
| 0.00 | 1.50 | 0.00 | 0.96 | -11.83 | 259.38 | 35.07 | 241.97 | 0.6393 | -617.0 | -444.4 | |
| 0.00 | 1.06 | 0.00 | 0.69 | -13.04 | 259.45 | 35.14 | 240.34 | 0.6476 | -628.0 | -438.7 | |
| 0.00 | 1.59 | 0.00 | 1.02 | -11.91 | 259.13 | 34.81 | 241.69 | 0.6368 | -630.0 | -528.7 | |
| 0.00 | 0.79 | 0.00 | 0.51 | -12.42 | 258.87 | 34.55 | 240.78 | 0.6370 | -495.0 | -427.2 | |
| 7.32 | 16.06 | 4.74 | 10.39 | -13.64 | 258.95 | 34.64 | 239.16 | 0.6456 | -761.0 | -542.6 | |
| 5.30 | -26.00 | 3.42 | -26.00 | -13.79 | 258.79 | 34.47 | 238.84 | 0.6447 | -899.3 | 999999 | |
| 1.06 | 2.74 | 0.69 | 1.77 | -14.70 | 258.53 | 34.22 | 237.42 | 0.6478 | -630.8 | -459.9 | |
| 0.71 | 2.47 | 0.46 | 1.59 | -14.08 | 258.42 | 34.11 | 238.17 | 0.6425 | -868.4 | -711.3 | |
| 0.00 | 1.94 | 0.00 | 1.25 | -14.56 | 258.32 | 34.00 | 237.45 | 0.6445 | -765.0 | -673.5 | |
| 0.00 | 0.79 | 0.00 | 0.52 | -15.87 | 258.22 | 33.91 | 235.63 | 0.6524 | -541.0 | -424.3 | |
| 0.00 | 1.06 | 0.00 | 0.66 | -12.88 | 256.72 | 32.40 | 238.53 | 0.6147 | -199.0 | -261.4 | |
| 0.00 | 0.97 | 0.00 | 0.61 | -13.42 | 256.76 | 32.45 | 237.80 | 0.6190 | -431.0 | -369.2 | |
| 0.00 | 2.82 | 0.00 | 1.77 | -12.68 | 256.61 | 32.30 | 238.73 | 0.6122 | -770.0 | -674.6 | |
| 0.00 | 0.88 | 0.00 | 0.56 | -14.64 | 256.81 | 32.49 | 236.15 | 0.6281 | -611.0 | -484.9 | |
| 0.00 | 2.03 | 0.00 | 1.27 | -13.09 | 256.53 | 32.21 | 238.08 | 0.6140 | -724.0 | -665.7 | |
| 1.06 | 7.50 | 0.67 | 4.75 | -14.31 | 256.64 | 32.33 | 236.47 | 0.6239 | -862.6 | -755.6 | |
| 2.29 | -37.00 | 1.45 | -37.00 | -14.50 | 256.64 | 32.32 | 236.20 | 0.6252 | -817.6 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
