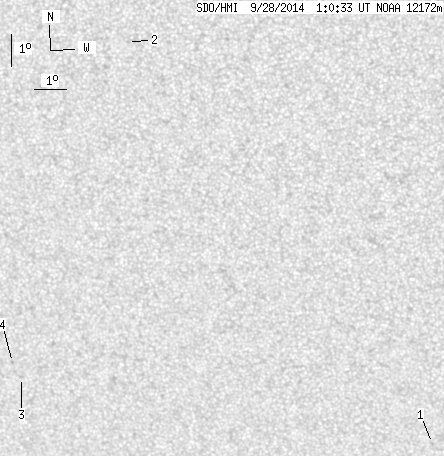

SDO HMI 2014-09-28 01:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.32 | 0.00 | 2.44 | -15.40 | 206.81 | -16.96 | 143.12 | 0.4786 | -360.2 | -248.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-28 01:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.24 | 0.00 | 0.69 | -18.63 | 215.67 | -8.10 | 162.73 | 0.4516 | 642.0 | 472.6 | |
| 0.00 | 0.79 | 0.00 | 0.42 | -6.09 | 206.62 | -17.14 | 126.76 | 0.3674 | -831.0 | -631.4 | |
| 0.00 | 1.32 | 0.00 | 0.77 | -16.87 | 202.37 | -21.39 | 138.51 | 0.5289 | -494.0 | -420.2 | |
| 0.00 | 0.97 | 0.00 | 0.56 | -16.39 | 202.13 | -21.64 | 137.55 | 0.5262 | -758.0 | -601.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
