group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
12175	244.16	1041.41	155.79	666.18	14.85	262.17	38.96	285.31	0.6317	-27.0	-62.0

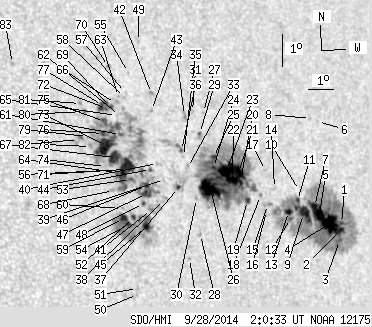

previous   or   next   observation for the same group / back to the solar disc SDO HMI 2014-09-28 02:00:33 UT See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!)

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
1	1.41	329.17	0.96	221.54	13.43	266.89	43.67	282.31	0.6898	-441.3	-329.9
2	4.41	-1.00	3.00	-1.00	13.23	266.76	43.54	282.02	0.6880	-674.6	999999
3	1.32	-1.00	0.90	-1.00	12.93	266.69	43.47	281.60	0.6869	-703.7	999999
4	24.72	-1.00	16.73	-1.00	13.47	266.38	43.17	282.42	0.6836	-951.7	999999
5	12.18	-1.00	8.20	-1.00	13.78	266.03	42.82	282.91	0.6795	-919.7	999999
6	0.00	0.71	0.00	0.48	16.58	266.66	43.45	286.88	0.6911	-490.0	-308.8
7	5.56	-1.00	3.74	-1.00	14.03	265.88	42.66	283.30	0.6779	-854.6	999999
8	0.00	1.15	0.00	0.78	16.69	266.39	43.18	287.10	0.6881	-492.0	-383.0
9	15.98	-1.00	10.65	-1.00	13.86	265.37	42.16	283.11	0.6714	-935.7	999999
10	0.00	0.35	0.00	0.24	14.56	265.37	42.16	284.16	0.6722	-110.0	-158.5
11	1.77	-1.00	1.17	-1.00	14.27	265.22	42.00	283.74	0.6699	-605.0	999999
12	1.32	-1.00	0.87	-1.00	13.75	264.81	41.59	283.02	0.6642	-926.7	999999
13	3.88	-1.00	2.57	-1.00	13.97	264.77	41.56	283.35	0.6640	-981.7	999999
14	0.00	1.85	0.00	1.22	14.70	264.36	41.15	284.53	0.6598	-592.0	-498.5
15	0.00	3.35	0.00	2.19	14.24	263.97	40.75	283.89	0.6541	-835.0	-709.6
16	0.00	0.62	0.00	0.40	14.07	263.89	40.67	283.64	0.6528	-668.0	-572.9
17	0.00	1.24	0.00	0.81	15.27	264.12	40.91	285.43	0.6576	91.0	96.2
18	0.00	1.24	0.00	0.81	14.54	263.75	40.53	284.38	0.6517	273.0	249.1
19	2.47	278.59	1.60	178.47	14.43	263.19	39.98	284.30	0.6444	102.3	-400.8
20	2.74	-19.00	1.77	-19.00	15.02	263.04	39.82	285.25	0.6434	-892.5	999999
21	10.24	-19.00	6.61	-19.00	15.30	263.02	39.81	285.68	0.6437	-873.6	999999
22	8.03	-19.00	5.17	-19.00	15.10	262.73	39.52	285.44	0.6396	-1261.8	999999
23	17.30	-19.00	11.10	-19.00	15.39	262.56	39.34	285.92	0.6379	-1155.5	999999
24	1.41	-19.00	0.90	-19.00	15.52	262.06	38.85	286.23	0.6317	-1138.3	999999
25	2.56	-19.00	1.64	-19.00	15.82	262.13	38.92	286.69	0.6332	-779.9	999999
26	33.01	-19.00	20.95	-19.00	14.90	261.80	38.59	285.30	0.6272	221.4	999999
27	0.00	0.79	0.00	0.51	17.21	262.06	38.85	288.87	0.6355	-655.0	-418.4
28	0.00	1.50	0.00	0.94	13.54	261.13	37.92	283.26	0.6161	661.0	505.4
29	0.62	3.27	0.39	2.08	16.59	261.75	38.53	287.98	0.6300	-533.4	-367.9
30	0.00	1.32	0.00	0.83	14.64	261.19	37.98	285.01	0.6187	711.0	580.0
31	0.00	1.24	0.00	0.79	17.27	261.63	38.42	289.09	0.6302	-607.0	-483.5
32	0.00	0.97	0.00	0.60	12.85	260.58	37.36	282.23	0.6076	644.0	514.8
33	0.00	2.30	0.00	1.44	15.60	261.04	37.83	286.59	0.6186	-603.0	-462.0
34	0.00	3.88	0.00	2.46	17.17	261.29	38.07	289.03	0.6255	-708.0	-683.5
35	0.00	1.06	0.00	0.67	15.94	260.96	37.74	287.16	0.6183	-238.0	-188.8
36	0.62	9.97	0.39	6.25	16.13	260.92	37.71	287.47	0.6182	-632.0	-579.8
37	1.59	13.15	0.99	8.23	15.02	260.56	37.35	285.77	0.6111	637.7	84.1
38	0.00	4.77	0.00	2.95	14.69	259.95	36.74	285.38	0.6023	133.0	71.1
39	0.00	0.79	0.00	0.49	15.30	260.07	36.86	286.34	0.6052	296.0	147.0
40	0.00	1.24	0.00	0.77	15.80	259.90	36.69	287.21	0.6041	346.0	159.6
41	0.00	5.30	0.00	3.26	14.43	259.40	36.18	285.07	0.5943	823.0	521.7
42	0.00	1.85	0.00	1.16	17.93	260.16	36.94	290.59	0.6131	676.0	567.8
43	0.00	1.32	0.00	0.83	17.42	260.03	36.82	289.80	0.6100	-850.0	-695.0
44	0.62	39.02	0.38	24.02	15.64	259.60	36.38	287.03	0.5997	494.1	496.4
45	5.47	82.09	3.35	49.95	13.93	259.11	35.90	284.30	0.5895	892.0	535.8
46	2.12	-44.00	1.30	-44.00	15.17	259.35	36.13	286.31	0.5952	764.5	999999
47	5.56	-44.00	3.42	-44.00	14.92	259.30	36.08	285.92	0.5940	836.6	999999
48	1.06	1.85	0.65	1.14	14.63	259.13	35.91	285.47	0.5911	813.7	719.8
49	0.00	0.97	0.00	0.61	19.55	260.06	36.84	293.19	0.6170	528.0	398.5
50	0.00	0.79	0.00	0.48	11.91	258.43	35.22	280.97	0.5770	549.0	351.4
51	0.00	1.94	0.00	1.18	12.09	258.46	35.25	281.27	0.5776	555.0	455.5
52	1.59	-45.00	0.97	-45.00	14.24	258.67	35.46	284.91	0.5841	874.0	999999
53	0.97	201.79	0.59	123.25	15.39	258.77	35.56	286.84	0.5880	851.3	441.2
54	2.74	-45.00	1.66	-45.00	14.04	258.44	35.23	284.63	0.5806	1031.9	999999
55	0.00	0.88	0.00	0.55	18.63	259.42	36.21	291.97	0.6059	412.0	337.9
56	20.13	-53.00	12.29	-53.00	15.70	258.65	35.43	287.40	0.5871	960.2	999999
57	0.00	1.32	0.00	0.82	18.03	259.16	35.95	291.10	0.6005	295.0	249.8
58	0.00	1.24	0.00	0.76	17.89	259.09	35.87	290.88	0.5991	448.0	326.8
59	5.12	-45.00	3.10	-45.00	14.23	258.29	35.07	285.00	0.5788	1114.4	999999
60	0.00	1.15	0.00	0.70	14.53	258.31	35.09	285.51	0.5797	439.0	464.8
61	0.97	-53.00	0.59	-53.00	16.77	258.68	35.46	289.19	0.5904	589.5	999999
62	0.00	0.62	0.00	0.38	17.35	258.77	35.55	290.12	0.5933	286.0	344.1
63	0.00	0.79	0.00	0.49	17.93	258.86	35.65	291.03	0.5963	489.0	388.8
64	0.71	-53.00	0.43	-53.00	15.64	258.29	35.07	287.39	0.5821	973.0	999999
65	0.00	0.44	0.00	0.27	17.36	258.65	35.44	290.17	0.5918	343.0	268.0
66	0.00	1.77	0.00	1.08	17.73	258.70	35.48	290.76	0.5935	435.0	378.1
67	9.89	-53.00	6.02	-53.00	16.09	258.30	35.09	288.17	0.5835	980.3	999999
68	0.00	1.41	0.00	0.86	15.10	258.07	34.86	286.54	0.5778	700.0	621.0
69	1.15	13.15	0.70	8.04	17.65	258.49	35.27	290.71	0.5905	623.2	622.2
70	0.00	1.77	0.00	1.09	18.87	258.70	35.48	292.63	0.5973	729.0	606.8
71	0.00	0.97	0.00	0.59	15.72	257.96	34.75	287.64	0.5779	785.0	646.8
72	0.79	-69.00	0.49	-69.00	17.60	258.32	35.11	290.68	0.5881	771.4	999999
73	21.36	-53.00	12.98	-53.00	16.48	258.04	34.83	288.90	0.5810	963.0	999999
74	0.00	0.97	0.00	0.59	15.84	257.91	34.70	287.87	0.5775	721.0	646.6
75	2.74	-53.00	1.67	-53.00	17.21	258.16	34.94	290.09	0.5848	826.7	999999
76	2.12	-53.00	1.29	-53.00	16.85	258.04	34.83	289.53	0.5821	923.7	999999
77	5.91	-69.00	3.61	-69.00	17.70	258.19	34.97	290.90	0.5867	779.1	999999
78	0.00	1.94	0.00	1.17	16.49	257.47	34.25	289.11	0.5734	812.0	722.8
79	0.00	0.44	0.00	0.27	16.80	257.42	34.20	289.66	0.5737	368.0	451.6
80	0.00	2.91	0.00	1.76	17.56	257.47	34.25	290.94	0.5768	936.0	733.8
81	0.00	1.85	0.00	1.12	17.82	257.37	34.16	291.41	0.5763	769.0	637.1
82	0.00	4.94	0.00	2.97	16.73	257.06	33.85	289.67	0.5687	839.0	768.2
83	0.00	1.41	0.00	0.84	19.20	255.10	31.88	294.81	0.5517	701.0	514.6

	Proj. U	-  Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	-  Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	-  Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	-  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	-  Heliographic latitude B; positive: North, negative: South
	L	-  Heliographic longitude L
	LCM	-  Longitudinal distance from the Sun's central meridian
	Pos. angle	-  Position angle
	r	-  Distance from the centre of Sun's disc in terms of Sun's radius
	MU	-  Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	-  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
