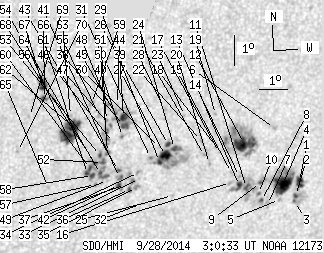

SDO HMI 2014-09-28 03:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 129.08 | 417.02 | 78.39 | 253.46 | -16.31 | 249.57 | 26.90 | 228.57 | 0.5797 | -71.1 | -9.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-28 03:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.47 | 9.80 | 3.51 | 6.28 | -17.43 | 254.00 | 31.34 | 231.49 | 0.6364 | 728.9 | 392.7 | |
| 1.24 | 10.68 | 0.79 | 6.88 | -17.89 | 253.94 | 31.28 | 230.85 | 0.6394 | 749.4 | 219.9 | |
| 0.44 | -2.00 | 0.28 | -2.00 | -18.09 | 253.94 | 31.28 | 230.61 | 0.6410 | 457.6 | 999999 | |
| 22.86 | 42.02 | 14.56 | 26.73 | -17.49 | 253.39 | 30.72 | 230.87 | 0.6304 | 941.9 | 579.6 | |
| 0.00 | 1.41 | 0.00 | 0.90 | -17.98 | 253.37 | 30.71 | 230.23 | 0.6342 | 411.0 | 350.1 | |
| 0.00 | 1.94 | 0.00 | 1.21 | -15.63 | 252.77 | 30.11 | 232.78 | 0.6089 | 679.0 | 543.2 | |
| 0.00 | 3.09 | 0.00 | 1.97 | -18.12 | 252.96 | 30.29 | 229.68 | 0.6310 | 559.0 | 485.4 | |
| 0.97 | 3.00 | 0.62 | 1.91 | -17.97 | 252.71 | 30.04 | 229.64 | 0.6273 | 847.2 | 682.0 | |
| 0.97 | 4.59 | 0.61 | 2.89 | -17.37 | 252.56 | 29.90 | 230.27 | 0.6208 | 913.6 | 606.7 | |
| 0.53 | 30.02 | 0.33 | 18.85 | -17.73 | 252.55 | 29.89 | 229.80 | 0.6237 | 793.8 | 613.6 | |
| 2.30 | -10.00 | 1.44 | -10.00 | -17.51 | 252.08 | 29.41 | 229.65 | 0.6168 | 900.5 | 999999 | |
| 19.78 | 67.45 | 12.23 | 41.64 | -16.05 | 251.76 | 29.09 | 231.27 | 0.6013 | 915.4 | 589.2 | |
| 3.27 | -10.00 | 2.04 | -10.00 | -17.42 | 251.81 | 29.14 | 229.50 | 0.6133 | 920.6 | 999999 | |
| 0.00 | 0.62 | 0.00 | 0.39 | -17.13 | 251.76 | 29.09 | 229.84 | 0.6103 | 801.0 | 654.4 | |
| 0.00 | 2.03 | 0.00 | 1.26 | -16.97 | 251.44 | 28.78 | 229.73 | 0.6057 | 666.0 | 512.0 | |
| 0.00 | 2.03 | 0.00 | 1.27 | -17.30 | 251.46 | 28.80 | 229.32 | 0.6087 | 623.0 | 612.8 | |
| 0.00 | 0.88 | 0.00 | 0.54 | -16.29 | 250.90 | 28.24 | 230.12 | 0.5941 | 697.0 | 583.8 | |
| 0.00 | 1.41 | 0.00 | 0.87 | -16.09 | 250.77 | 28.10 | 230.25 | 0.5908 | 818.0 | 585.8 | |
| 0.00 | 1.24 | 0.00 | 0.75 | -15.04 | 250.58 | 27.91 | 231.50 | 0.5798 | 759.0 | 587.7 | |
| 0.00 | 1.15 | 0.00 | 0.71 | -16.63 | 250.60 | 27.94 | 229.36 | 0.5938 | 756.0 | 663.0 | |
| 0.00 | 1.15 | 0.00 | 0.70 | -16.36 | 250.38 | 27.72 | 229.51 | 0.5891 | 773.0 | 601.4 | |
| 0.00 | 1.41 | 0.00 | 0.86 | -15.86 | 250.20 | 27.54 | 230.00 | 0.5827 | -464.0 | -296.0 | |
| 0.00 | 0.97 | 0.00 | 0.58 | -15.00 | 249.48 | 26.82 | 230.44 | 0.5674 | 696.0 | 499.7 | |
| 2.03 | 48.64 | 1.23 | 29.42 | -16.06 | 249.28 | 26.62 | 228.77 | 0.5747 | -829.0 | -252.7 | |
| 0.00 | 1.15 | 0.00 | 0.70 | -17.61 | 249.45 | 26.78 | 226.89 | 0.5905 | -483.0 | -393.1 | |
| 1.94 | -24.00 | 1.17 | -24.00 | -15.92 | 249.05 | 26.39 | 228.72 | 0.5709 | -945.6 | 999999 | |
| 8.74 | -24.00 | 5.28 | -24.00 | -16.27 | 249.00 | 26.33 | 228.18 | 0.5736 | -932.4 | 999999 | |
| 0.00 | 1.85 | 0.00 | 1.10 | -14.77 | 248.76 | 26.09 | 230.00 | 0.5573 | 541.0 | 434.0 | |
| 2.47 | -24.00 | 1.49 | -24.00 | -16.46 | 248.81 | 26.15 | 227.73 | 0.5733 | -700.6 | 999999 | |
| 0.00 | 0.62 | 0.00 | 0.37 | -16.00 | 248.75 | 26.08 | 228.28 | 0.5684 | -934.0 | -746.6 | |
| 0.00 | 1.32 | 0.00 | 0.80 | -16.31 | 248.48 | 25.81 | 227.57 | 0.5684 | 635.0 | 517.7 | |
| 0.00 | 0.88 | 0.00 | 0.54 | -17.81 | 248.39 | 25.72 | 225.49 | 0.5816 | -396.0 | -378.4 | |
| 0.00 | 0.71 | 0.00 | 0.43 | -16.98 | 248.19 | 25.53 | 226.36 | 0.5717 | -439.0 | -331.0 | |
| 0.00 | 2.38 | 0.00 | 1.43 | -16.78 | 248.13 | 25.46 | 226.55 | 0.5692 | -682.0 | -482.3 | |
| 0.00 | 3.53 | 0.00 | 2.13 | -17.27 | 248.13 | 25.46 | 225.90 | 0.5739 | -508.0 | -389.5 | |
| 1.06 | 7.77 | 0.64 | 4.67 | -17.32 | 247.89 | 25.23 | 225.57 | 0.5719 | -677.4 | -583.7 | |
| 0.00 | 0.26 | 0.00 | 0.16 | -17.15 | 247.73 | 25.06 | 225.61 | 0.5686 | -523.0 | -450.7 | |
| 3.53 | 31.87 | 2.09 | 18.78 | -15.21 | 247.43 | 24.77 | 227.90 | 0.5469 | -761.9 | -463.6 | |
| 4.86 | -38.00 | 2.86 | -38.00 | -14.95 | 247.37 | 24.70 | 228.20 | 0.5437 | -811.7 | 999999 | |
| 0.00 | 1.68 | 0.00 | 0.99 | -15.57 | 247.41 | 24.74 | 227.38 | 0.5501 | -607.0 | -456.7 | |
| 0.00 | 3.80 | 0.00 | 2.27 | -16.91 | 247.49 | 24.82 | 225.66 | 0.5638 | -903.0 | -710.1 | |
| 1.41 | 4.68 | 0.85 | 2.81 | -17.17 | 247.49 | 24.82 | 225.31 | 0.5663 | -762.6 | -568.5 | |
| 0.79 | 2.12 | 0.47 | 1.27 | -16.68 | 247.42 | 24.75 | 225.89 | 0.5608 | -802.7 | -686.5 | |
| 0.00 | 0.53 | 0.00 | 0.31 | -14.52 | 247.11 | 24.44 | 228.52 | 0.5368 | -418.0 | -407.5 | |
| 0.44 | -38.00 | 0.26 | -38.00 | -14.81 | 247.08 | 24.41 | 228.07 | 0.5392 | -885.8 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.63 | -15.75 | 247.12 | 24.46 | 226.81 | 0.5487 | -393.0 | -369.2 | |
| 0.44 | 12.09 | 0.26 | 7.13 | -15.19 | 246.95 | 24.29 | 227.38 | 0.5415 | -873.8 | -727.0 | |
| 0.00 | 1.94 | 0.00 | 1.14 | -14.50 | 246.80 | 24.14 | 228.18 | 0.5333 | -772.0 | -656.7 | |
| 0.00 | 0.26 | 0.00 | 0.16 | -16.99 | 247.08 | 24.42 | 225.09 | 0.5604 | -397.0 | -370.3 | |
| 0.00 | 2.38 | 0.00 | 1.41 | -16.06 | 246.96 | 24.29 | 226.18 | 0.5501 | -761.0 | -618.8 | |
| 0.00 | 1.41 | 0.00 | 0.83 | -15.02 | 246.79 | 24.13 | 227.44 | 0.5382 | -922.0 | -761.0 | |
| 1.24 | 34.43 | 0.73 | 20.42 | -16.38 | 246.83 | 24.16 | 225.60 | 0.5518 | -824.1 | -703.8 | |
| 1.06 | -52.00 | 0.63 | -52.00 | -16.15 | 246.73 | 24.06 | 225.79 | 0.5485 | -998.3 | 999999 | |
| 1.15 | -52.00 | 0.68 | -52.00 | -16.74 | 246.81 | 24.14 | 225.09 | 0.5551 | -836.3 | 999999 | |
| 0.00 | 2.12 | 0.00 | 1.24 | -14.84 | 246.53 | 23.87 | 227.38 | 0.5337 | -620.0 | -564.0 | |
| 0.97 | -52.00 | 0.57 | -52.00 | -16.40 | 246.59 | 23.93 | 225.29 | 0.5496 | -1011.8 | 999999 | |
| 0.00 | 1.32 | 0.00 | 0.79 | -17.10 | 246.68 | 24.02 | 224.48 | 0.5574 | -694.0 | -578.0 | |
| 1.85 | -52.00 | 1.10 | -52.00 | -16.79 | 246.54 | 23.87 | 224.71 | 0.5529 | -824.8 | 999999 | |
| 0.00 | 2.74 | 0.00 | 1.59 | -14.44 | 246.22 | 23.55 | 227.57 | 0.5263 | -655.0 | -607.9 | |
| 1.77 | -52.00 | 1.05 | -52.00 | -16.56 | 246.44 | 23.77 | 224.90 | 0.5496 | -969.0 | 999999 | |
| 1.77 | -52.00 | 1.05 | -52.00 | -16.72 | 246.36 | 23.69 | 224.59 | 0.5503 | -839.3 | 999999 | |
| 12.89 | 34.16 | 7.50 | 19.90 | -15.15 | 245.65 | 22.99 | 225.87 | 0.5273 | -969.0 | -643.6 | |
| 0.00 | 1.06 | 0.00 | 0.61 | -14.79 | 245.55 | 22.88 | 226.25 | 0.5225 | -826.0 | -695.8 | |
| 13.95 | -62.00 | 8.13 | -62.00 | -15.47 | 245.52 | 22.86 | 225.26 | 0.5291 | -921.3 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.62 | -17.11 | 245.07 | 22.41 | 222.49 | 0.5415 | -763.0 | -547.1 | |
| 1.59 | 6.89 | 0.91 | 3.95 | -14.20 | 244.61 | 21.94 | 225.91 | 0.5064 | -924.6 | -537.3 | |
| 3.00 | 11.39 | 1.72 | 6.50 | -13.84 | 244.54 | 21.87 | 226.34 | 0.5020 | -913.2 | -527.9 | |
| 2.30 | -67.00 | 1.31 | -67.00 | -13.68 | 244.49 | 21.83 | 226.52 | 0.4999 | -925.2 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.51 | -14.76 | 244.16 | 21.50 | 224.52 | 0.5075 | 664.0 | 530.2 | |
| 0.00 | 1.15 | 0.00 | 0.66 | -15.88 | 243.88 | 21.22 | 222.58 | 0.5165 | 611.0 | 412.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
