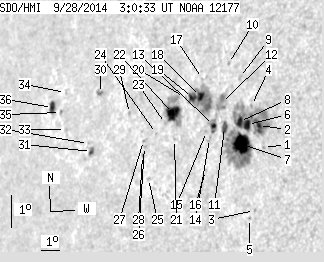

SDO HMI 2014-09-28 03:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 71.08 | 301.72 | 59.19 | 247.71 | 12.34 | 169.20 | -53.46 | 79.68 | 0.7992 | -88.5 | -3.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-28 03:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.97 | 0.00 | 0.75 | 11.91 | 172.20 | -50.46 | 80.19 | 0.7681 | -621.0 | -541.2 | |
| 2.03 | 156.17 | 1.58 | 122.99 | 12.54 | 171.79 | -50.87 | 79.38 | 0.7727 | -927.0 | -294.2 | |
| 0.00 | 1.06 | 0.00 | 0.82 | 10.00 | 172.21 | -50.45 | 82.69 | 0.7679 | -705.0 | -584.4 | |
| 0.00 | 1.32 | 0.00 | 1.04 | 13.11 | 171.29 | -51.38 | 78.66 | 0.7784 | -339.0 | -315.6 | |
| 0.00 | 1.06 | 0.00 | 0.82 | 9.74 | 172.03 | -50.64 | 83.03 | 0.7700 | -637.0 | -506.9 | |
| 5.39 | -2.00 | 4.23 | -2.00 | 12.53 | 171.25 | -51.41 | 79.42 | 0.7785 | -749.7 | 999999 | |
| 23.13 | -2.00 | 18.22 | -2.00 | 11.90 | 171.12 | -51.54 | 80.22 | 0.7798 | -909.6 | 999999 | |
| 4.86 | -2.00 | 3.85 | -2.00 | 12.58 | 170.84 | -51.83 | 79.36 | 0.7830 | -523.5 | 999999 | |
| 0.00 | 1.59 | 0.00 | 1.27 | 13.89 | 170.44 | -52.22 | 77.70 | 0.7875 | -622.0 | -455.4 | |
| 0.00 | 1.32 | 0.00 | 1.08 | 14.26 | 169.76 | -52.90 | 77.27 | 0.7948 | -413.0 | -323.5 | |
| 3.62 | -2.00 | 2.91 | -2.00 | 12.33 | 170.15 | -52.51 | 79.69 | 0.7902 | -441.1 | 999999 | |
| 0.00 | 13.24 | 0.00 | 10.74 | 13.06 | 169.78 | -52.88 | 78.78 | 0.7942 | -72.0 | -22.7 | |
| 1.77 | 9.62 | 1.44 | 7.84 | 12.34 | 169.59 | -53.08 | 79.69 | 0.7960 | -102.0 | 125.7 | |
| 0.00 | 2.47 | 0.00 | 2.02 | 11.94 | 169.50 | -53.17 | 80.20 | 0.7969 | -268.0 | -153.1 | |
| 0.00 | 1.06 | 0.00 | 0.87 | 12.13 | 169.29 | -53.38 | 79.96 | 0.7991 | 446.0 | 458.7 | |
| 0.00 | 0.97 | 0.00 | 0.79 | 10.97 | 169.55 | -53.11 | 81.42 | 0.7963 | -401.0 | -304.4 | |
| 0.00 | 0.53 | 0.00 | 0.44 | 13.69 | 168.59 | -54.07 | 78.03 | 0.8065 | 371.0 | 381.2 | |
| 4.24 | 45.20 | 3.52 | 37.52 | 13.14 | 168.66 | -54.00 | 78.71 | 0.8056 | 949.4 | 627.2 | |
| 3.88 | -18.00 | 3.26 | -18.00 | 13.07 | 168.26 | -54.40 | 78.80 | 0.8096 | 788.2 | 999999 | |
| 0.00 | 0.53 | 0.00 | 0.45 | 13.03 | 167.85 | -54.82 | 78.86 | 0.8138 | 164.0 | 232.8 | |
| 0.00 | 0.88 | 0.00 | 0.75 | 11.74 | 167.71 | -54.95 | 80.46 | 0.8150 | 439.0 | 316.4 | |
| 14.21 | 36.46 | 12.18 | 31.24 | 12.50 | 167.42 | -55.24 | 79.52 | 0.8179 | 772.0 | 304.7 | |
| 0.00 | 1.24 | 0.00 | 1.07 | 12.16 | 167.09 | -55.57 | 79.93 | 0.8211 | 35.0 | 45.2 | |
| 0.00 | 0.79 | 0.00 | 0.69 | 11.82 | 166.70 | -55.96 | 80.35 | 0.8249 | 213.0 | 235.8 | |
| 0.00 | 1.50 | 0.00 | 1.31 | 10.45 | 166.66 | -56.00 | 82.02 | 0.8255 | 400.0 | 352.0 | |
| 0.00 | 1.06 | 0.00 | 0.94 | 11.37 | 166.17 | -56.49 | 80.89 | 0.8300 | 625.0 | 570.8 | |
| 0.00 | 1.15 | 0.00 | 1.02 | 11.55 | 166.07 | -56.60 | 80.68 | 0.8310 | 655.0 | 587.5 | |
| 0.00 | 1.41 | 0.00 | 1.25 | 11.10 | 166.15 | -56.52 | 81.22 | 0.8303 | 548.0 | 492.1 | |
| 0.00 | 1.41 | 0.00 | 1.28 | 12.27 | 165.03 | -57.63 | 79.80 | 0.8407 | 494.0 | 435.5 | |
| 1.06 | 3.09 | 1.01 | 2.96 | 12.69 | 163.15 | -59.51 | 79.29 | 0.8576 | -682.2 | -484.7 | |
| 2.03 | 3.88 | 1.94 | 3.71 | 10.93 | 163.23 | -59.43 | 81.35 | 0.8572 | -560.2 | -383.3 | |
| 0.00 | 0.97 | 0.00 | 0.93 | 11.15 | 162.98 | -59.69 | 81.09 | 0.8594 | -302.0 | -280.3 | |
| 0.00 | 0.97 | 0.00 | 0.98 | 11.42 | 161.44 | -61.23 | 80.74 | 0.8725 | 339.0 | 319.1 | |
| 0.00 | 1.06 | 0.00 | 1.08 | 12.51 | 161.02 | -61.65 | 79.48 | 0.8758 | 478.0 | 454.2 | |
| 0.00 | 1.41 | 0.00 | 1.44 | 11.88 | 160.94 | -61.73 | 80.19 | 0.8766 | 591.0 | 459.4 | |
| 4.86 | 7.33 | 5.05 | 7.62 | 11.98 | 160.37 | -62.29 | 80.06 | 0.8812 | 462.5 | 206.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
