group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
12175	227.95	1075.00	146.90	697.04	14.97	262.05	39.94	285.30	0.6445	15.8	-80.7

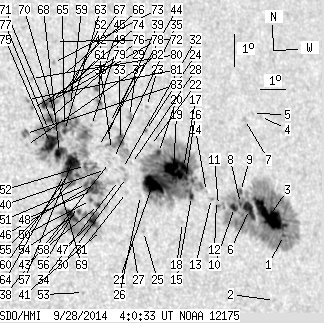

previous   or   next   observation for the same group / back to the solar disc SDO HMI 2014-09-28 04:00:33 UT See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!)

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
1	1.15	323.84	0.79	221.77	12.95	266.72	44.61	281.53	0.7008	-703.2	-341.1
2	0.00	1.24	0.00	0.84	11.04	265.94	43.82	278.83	0.6900	-644.0	-477.3
3	42.38	-1.00	29.14	-1.00	13.60	266.27	44.15	282.51	0.6958	-955.6	999999
4	0.00	1.59	0.00	1.11	16.60	266.67	44.56	286.73	0.7044	-348.0	-260.2
5	0.00	1.15	0.00	0.79	16.72	266.36	44.24	286.96	0.7009	-400.0	-359.4
6	11.21	-1.00	7.61	-1.00	13.85	265.47	43.35	282.95	0.6862	-987.9	999999
7	0.00	2.91	0.00	2.00	16.57	265.96	43.85	286.81	0.6959	-743.0	-556.4
8	0.97	-1.00	0.66	-1.00	14.06	265.13	43.02	283.30	0.6823	-681.5	999999
9	1.06	-1.00	0.72	-1.00	14.42	265.22	43.10	283.82	0.6838	-493.3	999999
10	4.06	-1.00	2.73	-1.00	13.96	264.85	42.74	283.19	0.6788	-1020.3	999999
11	0.53	-1.00	0.35	-1.00	14.07	264.21	42.09	283.44	0.6708	-890.7	999999
12	0.00	1.06	0.00	0.71	14.23	264.16	42.04	283.68	0.6704	-477.0	-576.5
13	0.00	2.03	0.00	1.35	14.30	263.97	41.85	283.83	0.6681	-754.0	-637.0
14	0.00	0.71	0.00	0.47	14.53	263.81	41.69	284.19	0.6665	300.0	173.4
15	1.85	268.13	1.22	174.45	14.43	263.17	41.05	284.13	0.6582	133.1	-424.1
16	0.26	-15.00	0.17	-15.00	14.99	263.05	40.93	285.00	0.6575	-897.0	999999
17	6.62	-15.00	4.35	-15.00	15.32	263.04	40.93	285.51	0.6580	-879.5	999999
18	0.00	1.06	0.00	0.69	13.67	262.63	40.52	283.07	0.6503	-357.0	-312.7
19	25.43	-15.00	16.59	-15.00	15.30	262.62	40.51	285.55	0.6526	-1223.5	999999
20	2.65	-15.00	1.72	-15.00	15.85	262.14	40.03	286.50	0.6475	-827.6	999999
21	20.66	-15.00	13.28	-15.00	14.91	261.68	39.56	285.13	0.6399	732.2	999999
22	0.00	1.68	0.00	1.08	16.09	261.87	39.76	286.92	0.6446	-314.0	-363.7
23	0.00	1.24	0.00	0.80	17.28	262.01	39.89	288.71	0.6489	-612.0	-463.6
24	0.00	1.41	0.00	0.91	16.56	261.78	39.67	287.66	0.6444	-665.0	-550.1
25	0.00	1.41	0.00	0.90	13.52	261.03	38.91	283.07	0.6292	632.0	461.8
26	0.00	0.71	0.00	0.45	14.61	261.13	39.02	284.78	0.6323	700.0	613.1
27	0.00	2.38	0.00	1.51	13.38	260.52	38.41	282.92	0.6224	588.0	455.6
28	0.00	0.62	0.00	0.39	15.60	260.99	38.87	286.36	0.6323	-285.0	-314.6
29	0.00	3.80	0.00	2.44	17.03	261.25	39.13	288.52	0.6387	-745.0	-682.9
30	0.00	4.33	0.00	2.75	15.20	260.70	38.58	285.79	0.6277	-128.0	-212.3
31	0.00	1.59	0.00	1.01	14.74	260.60	38.48	285.09	0.6256	378.0	343.2
32	0.00	2.12	0.00	1.34	15.48	260.60	38.48	286.26	0.6270	-267.0	-253.6
33	3.88	26.49	2.47	16.84	16.36	260.72	38.61	287.62	0.6304	-917.8	-262.3
34	0.00	1.32	0.00	0.84	15.13	260.36	38.25	285.75	0.6232	-586.0	-410.9
35	0.00	0.79	0.00	0.50	15.81	260.31	38.20	286.84	0.6239	-455.0	-424.9
36	0.00	1.50	0.00	0.95	16.08	260.30	38.18	287.29	0.6243	-247.0	-166.9
37	0.00	1.06	0.00	0.67	16.90	260.41	38.30	288.55	0.6277	-513.0	-447.1
38	0.00	0.97	0.00	0.61	15.70	260.13	38.01	286.71	0.6213	-248.0	-204.6
39	0.00	1.32	0.00	0.84	16.43	260.14	38.02	287.88	0.6231	-378.0	-305.5
40	0.00	0.88	0.00	0.56	15.50	259.93	37.81	286.44	0.6182	188.0	142.6
41	0.00	1.77	0.00	1.10	13.67	259.40	37.29	283.59	0.6078	171.0	218.3
42	1.24	4.94	0.78	3.13	17.54	260.17	38.05	289.62	0.6262	-844.6	-635.4
43	1.50	284.91	0.94	176.57	14.43	259.43	37.32	284.83	0.6096	675.0	434.7
44	0.00	1.41	0.00	0.89	16.21	259.81	37.69	287.62	0.6183	533.0	368.5
45	0.97	2.83	0.62	1.79	17.97	260.16	38.04	290.30	0.6272	637.9	448.1
46	4.94	-43.00	3.09	-43.00	15.10	259.45	37.33	285.92	0.6111	724.3	999999
47	7.15	73.63	4.44	45.40	13.99	259.15	37.04	284.17	0.6050	843.8	544.5
48	5.47	-43.00	3.41	-43.00	14.90	259.29	37.17	285.63	0.6086	851.0	999999
49	0.00	0.88	0.00	0.56	16.86	259.68	37.57	288.70	0.6182	349.0	194.1
50	0.97	-43.00	0.60	-43.00	14.60	259.15	37.04	285.18	0.6062	877.7	999999
51	1.50	-43.00	0.93	-43.00	15.10	259.10	36.98	286.00	0.6064	932.1	999999
52	1.32	-43.00	0.83	-43.00	15.67	259.18	37.06	286.91	0.6088	689.5	999999
53	0.00	1.06	0.00	0.65	11.86	258.40	36.28	280.74	0.5916	589.0	493.3
54	1.24	-47.00	0.76	-47.00	14.31	258.63	36.51	284.80	0.5986	858.8	999999
55	1.32	-43.00	0.82	-43.00	15.39	258.81	36.69	286.55	0.6032	876.2	999999
56	0.00	1.50	0.00	0.93	14.46	258.62	36.50	285.06	0.5987	646.0	496.6
57	15.19	-43.00	9.41	-43.00	15.83	258.70	36.59	287.30	0.6028	936.5	999999
58	7.42	-47.00	4.56	-47.00	14.20	258.34	36.22	284.69	0.5945	1101.5	999999
59	0.00	6.00	0.00	3.75	17.53	259.01	36.89	289.96	0.6113	-157.0	-3.1
60	7.33	-43.00	4.53	-43.00	15.50	258.52	36.40	286.81	0.5996	1069.6	999999
61	0.00	1.41	0.00	0.88	18.08	259.10	36.99	290.81	0.6141	468.0	326.1
62	0.00	3.88	0.00	2.43	17.90	259.02	36.90	290.55	0.6125	474.0	389.1
63	1.94	-43.00	1.20	-43.00	16.79	258.60	36.48	288.89	0.6039	619.0	999999
64	3.80	-43.00	2.34	-43.00	15.46	258.31	36.20	286.79	0.5968	1085.7	999999
65	0.71	-43.00	0.44	-43.00	16.94	258.64	36.52	289.13	0.6048	607.4	999999
66	0.00	1.15	0.00	0.72	18.46	258.92	36.81	291.49	0.6130	346.0	411.8
67	0.00	2.65	0.00	1.65	17.80	258.68	36.56	290.51	0.6078	526.0	389.7
68	8.12	-43.00	5.01	-43.00	16.14	258.26	36.15	287.93	0.5978	981.2	999999
69	0.00	1.06	0.00	0.65	15.20	258.03	35.92	286.44	0.5924	837.0	684.5
70	1.85	-43.00	1.15	-43.00	17.05	258.39	36.27	289.39	0.6018	663.1	999999
71	1.24	-43.00	0.76	-43.00	16.87	258.27	36.15	289.14	0.5998	814.7	999999
72	0.00	0.97	0.00	0.61	19.52	258.92	36.80	293.16	0.6164	581.0	430.5
73	0.00	1.59	0.00	0.99	18.88	258.67	36.56	292.25	0.6111	709.0	571.1
74	1.59	13.60	0.98	8.41	17.73	258.31	36.19	290.53	0.6028	646.1	634.3
75	19.25	-43.00	11.84	-43.00	16.43	257.98	35.86	288.50	0.5947	1007.4	999999
76	3.71	-43.00	2.29	-43.00	17.19	258.11	35.99	289.71	0.5986	856.6	999999
77	1.85	-43.00	1.14	-43.00	16.86	257.99	35.88	289.21	0.5961	905.3	999999
78	3.62	-74.00	2.23	-74.00	17.63	258.01	35.90	290.46	0.5986	850.3	999999
79	0.00	0.88	0.00	0.54	17.54	257.52	35.41	290.48	0.5920	887.0	776.1
80	0.00	0.97	0.00	0.60	18.45	257.70	35.58	291.92	0.5972	580.0	491.7
81	0.00	2.03	0.00	1.24	17.82	257.40	35.28	291.00	0.5912	805.0	705.3
82	0.00	1.15	0.00	0.70	16.43	257.05	34.94	288.80	0.5824	827.0	667.7
83	0.00	5.39	0.00	3.28	16.80	257.09	34.98	289.40	0.5840	791.0	766.3

	Proj. U	-  Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	-  Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	-  Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	-  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	-  Heliographic latitude B; positive: North, negative: South
	L	-  Heliographic longitude L
	LCM	-  Longitudinal distance from the Sun's central meridian
	Pos. angle	-  Position angle
	r	-  Distance from the centre of Sun's disc in terms of Sun's radius
	MU	-  Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	-  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
