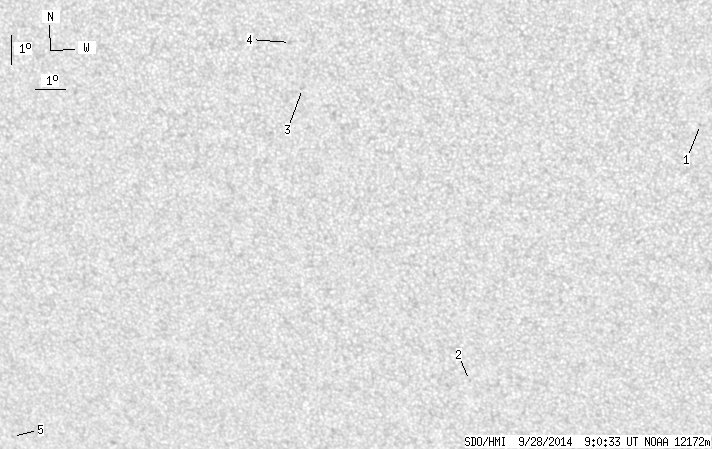

SDO HMI 2014-09-28 09:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.92 | 0.00 | 3.47 | -19.96 | 202.27 | -17.11 | 149.18 | 0.5286 | -107.6 | -183.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-28 09:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.97 | 0.00 | 0.53 | -17.80 | 214.69 | -4.69 | 169.41 | 0.4255 | 658.0 | 572.6 | |
| 0.00 | 0.71 | 0.00 | 0.43 | -26.77 | 206.49 | -12.89 | 160.12 | 0.5879 | 737.0 | 682.5 | |
| 0.00 | 1.77 | 0.00 | 1.00 | -16.91 | 201.95 | -17.43 | 144.20 | 0.4919 | -634.0 | -503.0 | |
| 0.00 | 1.68 | 0.00 | 0.94 | -15.42 | 201.70 | -17.68 | 141.88 | 0.4763 | -730.0 | -510.6 | |
| 0.00 | 0.79 | 0.00 | 0.57 | -29.64 | 189.02 | -30.36 | 142.87 | 0.7301 | -569.0 | -438.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
