SDO HMI 2014-09-28 09:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 133.72 | 456.99 | 83.66 | 287.17 | -16.38 | 249.55 | 30.17 | 231.70 | 0.6149 | -150.6 | -10.4 | |
|
previous
or next observation for the same group /

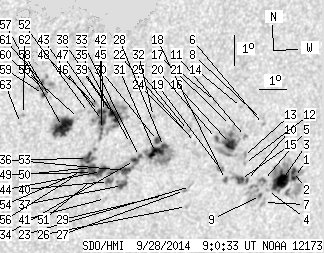

back to the solar disc SDO HMI 2014-09-28 09:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.09 | 72.04 | 2.07 | 48.07 | -17.52 | 254.40 | 35.02 | 234.39 | 0.6753 | 580.5 | 333.7 | |
| 2.82 | -1.00 | 1.89 | -1.00 | -17.32 | 254.31 | 34.93 | 234.59 | 0.6731 | 656.1 | 999999 | |
| 19.33 | -1.00 | 12.87 | -1.00 | -17.58 | 253.91 | 34.53 | 233.94 | 0.6707 | 964.5 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.76 | -17.88 | 253.44 | 34.06 | 233.21 | 0.6679 | 711.0 | 582.7 | |
| 1.32 | 22.69 | 0.87 | 14.97 | -17.53 | 253.21 | 33.83 | 233.46 | 0.6631 | 832.9 | 537.4 | |
| 0.00 | 1.50 | 0.00 | 0.97 | -15.68 | 252.84 | 33.47 | 235.57 | 0.6460 | 635.0 | 480.9 | |
| 0.00 | 3.88 | 0.00 | 2.58 | -18.27 | 253.37 | 33.99 | 232.67 | 0.6700 | 549.0 | 458.0 | |
| 0.00 | 0.35 | 0.00 | 0.23 | -15.51 | 252.74 | 33.36 | 235.71 | 0.6436 | 574.0 | 535.5 | |
| 0.97 | -5.00 | 0.64 | -5.00 | -18.03 | 253.20 | 33.82 | 232.84 | 0.6665 | 743.5 | 999999 | |
| 0.71 | 17.48 | 0.46 | 11.38 | -17.49 | 252.56 | 33.18 | 233.00 | 0.6559 | 701.2 | 659.5 | |
| 0.00 | 2.30 | 0.00 | 1.48 | -16.03 | 252.24 | 32.86 | 234.62 | 0.6418 | 617.0 | 480.3 | |
| 0.00 | 1.15 | 0.00 | 0.75 | -16.92 | 252.37 | 32.99 | 233.57 | 0.6497 | 801.0 | 700.1 | |
| 0.00 | 3.88 | 0.00 | 2.52 | -16.68 | 252.29 | 32.91 | 233.81 | 0.6471 | 681.0 | 707.8 | |
| 0.00 | 0.62 | 0.00 | 0.39 | -15.07 | 251.92 | 32.54 | 235.64 | 0.6314 | 657.0 | 524.3 | |
| 3.97 | -10.00 | 2.59 | -10.00 | -17.44 | 252.32 | 32.94 | 232.87 | 0.6530 | 913.0 | 999999 | |
| 10.59 | 43.17 | 6.79 | 27.65 | -16.22 | 251.71 | 32.33 | 233.94 | 0.6375 | 961.0 | 603.3 | |
| 0.00 | 0.44 | 0.00 | 0.28 | -15.63 | 251.61 | 32.23 | 234.64 | 0.6320 | 410.0 | 423.0 | |
| 1.15 | -10.00 | 0.74 | -10.00 | -17.40 | 251.75 | 32.37 | 232.45 | 0.6468 | 761.2 | 999999 | |
| 0.00 | 4.94 | 0.00 | 3.18 | -17.02 | 251.49 | 32.11 | 232.71 | 0.6412 | 892.0 | 711.4 | |
| 1.06 | -16.00 | 0.67 | -16.00 | -16.02 | 251.16 | 31.78 | 233.74 | 0.6300 | 920.2 | 999999 | |
| 0.00 | 1.94 | 0.00 | 1.22 | -14.81 | 250.92 | 31.54 | 235.17 | 0.6183 | 711.0 | 565.6 | |
| 0.00 | 1.32 | 0.00 | 0.84 | -16.10 | 250.40 | 31.02 | 232.99 | 0.6224 | -432.0 | -255.7 | |
| 0.00 | 0.44 | 0.00 | 0.28 | -17.54 | 250.48 | 31.10 | 231.17 | 0.6345 | -485.0 | -377.6 | |
| 0.00 | 0.97 | 0.00 | 0.61 | -15.89 | 250.18 | 30.80 | 233.07 | 0.6184 | -435.0 | -365.3 | |
| 0.00 | 1.59 | 0.00 | 1.00 | -15.69 | 250.08 | 30.70 | 233.25 | 0.6157 | -352.0 | -284.3 | |
| 0.00 | 1.50 | 0.00 | 0.96 | -18.20 | 250.46 | 31.08 | 230.32 | 0.6396 | 646.0 | 553.1 | |
| 0.00 | 1.77 | 0.00 | 1.13 | -17.66 | 250.28 | 30.90 | 230.84 | 0.6334 | -553.0 | -435.2 | |
| 1.85 | 47.14 | 1.16 | 29.43 | -16.16 | 249.25 | 29.87 | 231.88 | 0.6103 | -802.5 | -203.6 | |
| 0.00 | 2.38 | 0.00 | 1.51 | -17.78 | 249.53 | 30.15 | 230.02 | 0.6265 | -91.0 | -135.0 | |
| 2.56 | -28.00 | 1.59 | -28.00 | -15.95 | 249.00 | 29.62 | 231.93 | 0.6059 | -858.4 | 999999 | |
| 8.56 | -28.00 | 5.34 | -28.00 | -16.33 | 248.99 | 29.61 | 231.40 | 0.6090 | -939.3 | 999999 | |
| 0.00 | 1.59 | 0.00 | 0.98 | -15.15 | 248.73 | 29.35 | 232.76 | 0.5965 | -571.0 | -437.4 | |
| 0.97 | 85.63 | 0.60 | 52.70 | -16.43 | 248.43 | 29.05 | 230.74 | 0.6037 | 750.7 | -429.8 | |
| 2.38 | -33.00 | 1.48 | -33.00 | -16.55 | 248.27 | 28.89 | 230.43 | 0.6030 | 792.1 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.60 | -15.98 | 248.04 | 28.66 | 230.97 | 0.5957 | 180.0 | 183.2 | |
| 4.68 | -33.00 | 2.90 | -33.00 | -16.86 | 248.00 | 28.62 | 229.76 | 0.6028 | -619.4 | 999999 | |
| 3.44 | -33.00 | 2.14 | -33.00 | -17.35 | 247.97 | 28.59 | 229.09 | 0.6067 | -589.5 | 999999 | |
| 3.71 | 69.03 | 2.25 | 41.85 | -15.14 | 247.41 | 28.03 | 231.52 | 0.5817 | -701.0 | -445.0 | |
| 5.03 | -38.00 | 3.05 | -38.00 | -14.96 | 247.25 | 27.87 | 231.59 | 0.5785 | -834.8 | 999999 | |
| 1.68 | -33.00 | 1.04 | -33.00 | -17.19 | 247.44 | 28.06 | 228.78 | 0.5997 | -750.2 | 999999 | |
| 0.00 | 0.53 | 0.00 | 0.33 | -17.74 | 247.43 | 28.05 | 228.05 | 0.6045 | -452.0 | -428.8 | |
| 1.32 | -38.00 | 0.80 | -38.00 | -14.88 | 246.92 | 27.54 | 231.38 | 0.5741 | -838.9 | 999999 | |
| 5.39 | -38.00 | 3.26 | -38.00 | -15.17 | 246.92 | 27.54 | 230.98 | 0.5766 | -853.8 | 999999 | |
| 5.65 | -33.00 | 3.47 | -33.00 | -16.84 | 247.14 | 27.76 | 228.93 | 0.5935 | -783.0 | 999999 | |
| 0.62 | -38.00 | 0.37 | -38.00 | -15.46 | 246.93 | 27.55 | 230.58 | 0.5792 | -831.7 | 999999 | |
| 1.32 | -38.00 | 0.80 | -38.00 | -14.87 | 246.78 | 27.40 | 231.25 | 0.5724 | -926.2 | 999999 | |
| 0.00 | 1.32 | 0.00 | 0.80 | -14.71 | 246.72 | 27.34 | 231.42 | 0.5704 | -628.0 | -562.9 | |
| 0.00 | 1.85 | 0.00 | 1.11 | -14.60 | 246.56 | 27.19 | 231.42 | 0.5678 | -715.0 | -632.3 | |
| 3.27 | -33.00 | 2.00 | -33.00 | -16.86 | 246.82 | 27.44 | 228.59 | 0.5903 | -805.6 | 999999 | |
| 3.80 | -33.00 | 2.32 | -33.00 | -16.69 | 246.76 | 27.38 | 228.75 | 0.5881 | -841.3 | 999999 | |
| 0.00 | 2.91 | 0.00 | 1.79 | -17.12 | 246.83 | 27.45 | 228.25 | 0.5927 | -628.0 | -539.7 | |
| 0.00 | 0.88 | 0.00 | 0.53 | -14.88 | 246.39 | 27.01 | 230.84 | 0.5683 | -787.0 | -626.7 | |
| 6.53 | -33.00 | 3.98 | -33.00 | -16.38 | 246.57 | 27.19 | 228.96 | 0.5834 | -1030.4 | 999999 | |
| 1.59 | -33.00 | 0.97 | -33.00 | -16.80 | 246.42 | 27.04 | 228.26 | 0.5856 | -852.9 | 999999 | |
| 0.00 | 0.71 | 0.00 | 0.42 | -15.06 | 246.07 | 26.69 | 230.26 | 0.5662 | -679.0 | -562.5 | |
| 0.00 | 1.06 | 0.00 | 0.65 | -16.92 | 246.23 | 26.85 | 227.90 | 0.5846 | -701.0 | -513.8 | |
| 21.72 | 35.75 | 12.99 | 21.37 | -15.28 | 245.54 | 26.16 | 229.38 | 0.5625 | -964.3 | -667.1 | |
| 0.00 | 0.88 | 0.00 | 0.52 | -14.32 | 245.00 | 25.62 | 230.16 | 0.5478 | -587.0 | -406.1 | |
| 1.06 | 16.77 | 0.62 | 9.87 | -14.21 | 244.75 | 25.37 | 230.04 | 0.5439 | -841.2 | -469.3 | |
| 0.79 | -59.00 | 0.47 | -59.00 | -14.01 | 244.69 | 25.31 | 230.27 | 0.5415 | -951.9 | 999999 | |
| 0.79 | -59.00 | 0.47 | -59.00 | -13.82 | 244.67 | 25.29 | 230.52 | 0.5395 | -893.2 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.68 | -14.82 | 244.14 | 24.76 | 228.48 | 0.5428 | 622.0 | 409.5 | |
| 0.00 | 1.32 | 0.00 | 0.78 | -15.11 | 244.07 | 24.69 | 227.99 | 0.5448 | 493.0 | 487.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
