SDO HMI 2014-09-28 09:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.22 | 97.46 | 26.67 | 129.87 | -0.93 | 151.59 | -67.79 | 93.77 | 0.9293 | 510.9 | 164.4 | |
|
previous
or next observation for the same group /

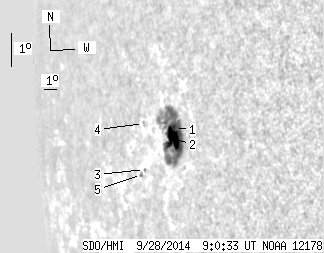

back to the solar disc SDO HMI 2014-09-28 09:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.30 | 93.49 | 3.02 | 123.92 | -0.57 | 151.86 | -67.52 | 93.42 | 0.9272 | 661.7 | 172.0 | |
| 17.92 | -1.00 | 23.65 | -1.00 | -0.92 | 151.69 | -67.69 | 93.78 | 0.9287 | 551.4 | 999999 | |
| 0.00 | 1.06 | 0.00 | 1.58 | -2.14 | 149.22 | -70.16 | 94.71 | 0.9446 | 196.0 | 185.7 | |
| 0.00 | 1.06 | 0.00 | 1.56 | -0.74 | 149.24 | -70.14 | 93.24 | 0.9434 | -364.0 | -328.9 | |
| 0.00 | 1.85 | 0.00 | 2.81 | -2.32 | 148.93 | -70.45 | 94.86 | 0.9464 | 285.0 | 164.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
