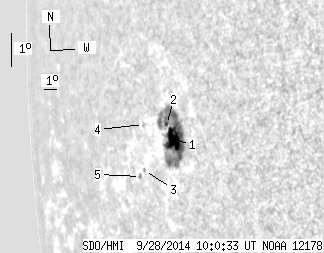

SDO HMI 2014-09-28 10:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.56 | 103.98 | 22.65 | 135.10 | -0.93 | 151.62 | -67.21 | 93.86 | 0.9255 | 442.4 | 173.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-28 10:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.59 | 99.57 | 21.38 | 128.68 | -0.91 | 151.77 | -67.06 | 93.86 | 0.9245 | 520.6 | 185.7 | |
| 0.97 | -1.00 | 1.27 | -1.00 | -0.52 | 151.24 | -67.60 | 93.36 | 0.9277 | 142.2 | 999999 | |
| 0.00 | 0.79 | 0.00 | 1.15 | -2.13 | 149.30 | -69.53 | 94.79 | 0.9410 | 216.0 | 228.0 | |
| 0.00 | 1.59 | 0.00 | 2.27 | -0.73 | 149.31 | -69.52 | 93.31 | 0.9398 | -427.0 | -369.6 | |
| 0.00 | 2.03 | 0.00 | 3.00 | -2.35 | 148.92 | -69.91 | 94.97 | 0.9434 | 246.0 | 142.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
