SDO HMI 2014-09-28 11:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 318.56 | 1605.96 | 182.12 | 915.42 | -11.36 | 241.17 | 22.89 | 230.50 | 0.4910 | 44.3 | -4.1 | |
|
previous
or next observation for the same group /

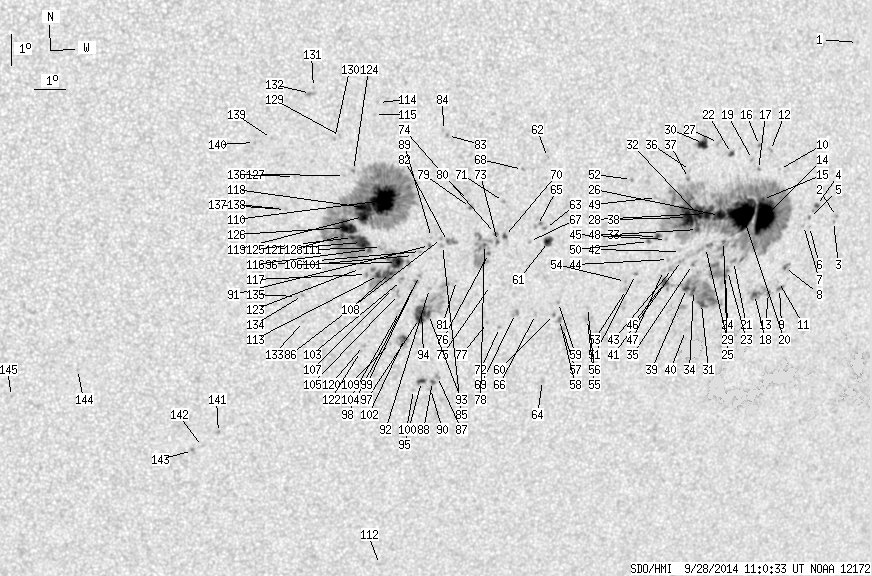

back to the solar disc SDO HMI 2014-09-28 11:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.06 | 0.00 | 0.64 | -5.93 | 250.39 | 32.11 | 249.01 | 0.5684 | 572.0 | 440.5 | |
| 0.00 | 1.50 | 0.00 | 0.92 | -11.33 | 250.15 | 31.86 | 240.40 | 0.5976 | 721.0 | 643.7 | |
| 0.00 | 1.06 | 0.00 | 0.65 | -11.48 | 250.06 | 31.77 | 240.10 | 0.5975 | 657.0 | 581.2 | |
| 1.24 | 4.68 | 0.75 | 2.85 | -10.93 | 249.38 | 31.10 | 240.38 | 0.5855 | 740.2 | 373.9 | |
| 0.00 | 1.32 | 0.00 | 0.81 | -11.30 | 249.17 | 30.89 | 239.67 | 0.5855 | 600.0 | 494.7 | |
| 0.00 | 1.06 | 0.00 | 0.65 | -11.58 | 249.21 | 30.92 | 239.27 | 0.5879 | 82.0 | 104.9 | |
| 0.00 | 1.32 | 0.00 | 0.81 | -11.54 | 248.99 | 30.70 | 239.15 | 0.5849 | 491.0 | 304.6 | |
| 0.88 | 4.50 | 0.54 | 2.75 | -12.84 | 248.47 | 30.19 | 236.80 | 0.5881 | 695.9 | 493.0 | |
| 0.88 | 3.18 | 0.54 | 1.95 | -13.50 | 248.38 | 30.10 | 235.77 | 0.5921 | -582.4 | -469.6 | |
| 0.00 | 0.88 | 0.00 | 0.53 | -9.71 | 247.94 | 29.66 | 241.09 | 0.5593 | 407.0 | 301.3 | |
| 0.00 | 0.62 | 0.00 | 0.38 | -13.27 | 248.32 | 30.03 | 236.04 | 0.5896 | 373.0 | 399.9 | |
| 0.00 | 1.77 | 0.00 | 1.05 | -9.10 | 247.57 | 29.28 | 241.76 | 0.5503 | 589.0 | 600.8 | |
| 0.71 | 15.36 | 0.43 | 9.36 | -13.60 | 248.01 | 29.72 | 235.28 | 0.5885 | -384.1 | -413.1 | |
| 40.86 | 641.61 | 24.49 | 380.05 | -11.19 | 247.53 | 29.25 | 238.43 | 0.5647 | 1045.5 | 407.8 | |
| 1.15 | -14.00 | 0.68 | -14.00 | -10.62 | 247.43 | 29.15 | 239.23 | 0.5594 | 1045.9 | 999999 | |
| 0.00 | 1.59 | 0.00 | 0.94 | -8.92 | 247.17 | 28.88 | 241.72 | 0.5440 | -770.0 | -594.1 | |
| 0.00 | 1.32 | 0.00 | 0.78 | -9.67 | 247.20 | 28.92 | 240.53 | 0.5496 | 798.0 | 730.9 | |
| 2.03 | -13.00 | 1.24 | -13.00 | -13.64 | 247.51 | 29.23 | 234.79 | 0.5830 | -645.9 | 999999 | |
| 0.00 | 1.41 | 0.00 | 0.83 | -9.34 | 246.96 | 28.68 | 240.85 | 0.5443 | 626.0 | 452.9 | |
| 53.39 | -14.00 | 31.73 | -14.00 | -11.05 | 246.78 | 28.50 | 237.97 | 0.5545 | 1281.0 | 999999 | |
| 0.00 | 2.91 | 0.00 | 1.74 | -12.53 | 246.63 | 28.35 | 235.58 | 0.5640 | 601.0 | 367.8 | |
| 1.59 | 3.09 | 0.93 | 1.81 | -9.11 | 246.21 | 27.93 | 240.57 | 0.5331 | 778.4 | 604.6 | |
| 0.71 | -14.00 | 0.42 | -14.00 | -12.81 | 246.45 | 28.17 | 235.00 | 0.5641 | 912.6 | 999999 | |
| 0.53 | -14.00 | 0.32 | -14.00 | -12.96 | 246.40 | 28.12 | 234.72 | 0.5648 | 882.3 | 999999 | |
| 0.79 | -14.00 | 0.47 | -14.00 | -11.87 | 246.21 | 27.92 | 236.17 | 0.5538 | 874.1 | 999999 | |
| 9.27 | -14.00 | 5.46 | -14.00 | -11.04 | 245.98 | 27.70 | 237.25 | 0.5445 | 1091.5 | 999999 | |
| 0.00 | 3.09 | 0.00 | 1.79 | -8.74 | 245.74 | 27.45 | 240.76 | 0.5243 | 655.0 | 570.4 | |
| 8.83 | -14.00 | 5.18 | -14.00 | -10.95 | 245.56 | 27.27 | 236.98 | 0.5386 | 1063.8 | 999999 | |
| 0.00 | 7.77 | 0.00 | 4.59 | -12.03 | 245.60 | 27.31 | 235.35 | 0.5477 | 617.0 | 508.4 | |
| 6.88 | 9.53 | 3.98 | 5.51 | -8.74 | 245.22 | 26.94 | 240.28 | 0.5177 | 1021.0 | 736.2 | |
| 3.71 | 80.84 | 2.22 | 48.16 | -13.81 | 245.67 | 27.39 | 232.76 | 0.5633 | -724.5 | 3.2 | |
| 13.33 | -14.00 | 7.80 | -14.00 | -10.93 | 245.21 | 26.93 | 236.67 | 0.5342 | 1138.1 | 999999 | |
| 1.85 | -14.00 | 1.09 | -14.00 | -11.44 | 245.26 | 26.98 | 235.92 | 0.5389 | 673.8 | 999999 | |
| 2.56 | -31.00 | 1.52 | -31.00 | -13.38 | 245.34 | 27.05 | 233.06 | 0.5558 | -423.7 | 999999 | |
| 0.35 | 3.35 | 0.21 | 1.98 | -12.54 | 245.21 | 26.92 | 234.17 | 0.5473 | -409.2 | -36.8 | |
| 0.00 | 0.97 | 0.00 | 0.56 | -9.56 | 244.85 | 26.56 | 238.54 | 0.5190 | 736.0 | 539.2 | |
| 0.00 | 2.38 | 0.00 | 1.38 | -9.81 | 244.80 | 26.51 | 238.08 | 0.5203 | 837.0 | 717.0 | |
| 17.56 | -14.00 | 10.25 | -14.00 | -11.04 | 244.88 | 26.59 | 236.17 | 0.5310 | 1196.9 | 999999 | |
| 2.21 | -31.00 | 1.31 | -31.00 | -13.30 | 245.09 | 26.80 | 232.91 | 0.5522 | -661.6 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.58 | -14.66 | 245.22 | 26.94 | 231.09 | 0.5654 | -709.0 | -456.9 | |
| 0.00 | 2.74 | 0.00 | 1.61 | -12.39 | 244.81 | 26.53 | 233.99 | 0.5413 | -458.0 | -235.7 | |
| 0.00 | 0.62 | 0.00 | 0.36 | -12.10 | 244.74 | 26.46 | 234.37 | 0.5381 | 505.0 | 465.9 | |
| 0.00 | 4.59 | 0.00 | 2.70 | -12.63 | 244.53 | 26.24 | 233.34 | 0.5400 | 113.0 | -66.3 | |
| 0.00 | 1.50 | 0.00 | 0.88 | -12.34 | 244.36 | 26.07 | 233.61 | 0.5355 | 726.0 | 614.5 | |
| 0.00 | 0.97 | 0.00 | 0.57 | -11.70 | 244.22 | 25.94 | 234.46 | 0.5285 | 768.0 | 652.9 | |
| 3.27 | -31.00 | 1.92 | -31.00 | -13.07 | 244.30 | 26.02 | 232.44 | 0.5411 | -857.1 | 999999 | |
| 0.00 | 1.85 | 0.00 | 1.09 | -12.68 | 244.22 | 25.94 | 232.94 | 0.5368 | -80.0 | -98.4 | |
| 1.94 | 3.79 | 1.13 | 2.20 | -11.58 | 243.90 | 25.62 | 234.30 | 0.5237 | 971.4 | 816.5 | |
| 0.00 | 2.12 | 0.00 | 1.22 | -10.35 | 243.76 | 25.47 | 236.14 | 0.5116 | 734.0 | 566.8 | |
| 0.71 | 1.94 | 0.41 | 1.13 | -11.73 | 243.61 | 25.33 | 233.76 | 0.5214 | 785.5 | 677.3 | |
| 0.00 | 1.24 | 0.00 | 0.72 | -12.75 | 243.27 | 24.99 | 231.80 | 0.5264 | 819.0 | 665.6 | |
| 0.00 | 1.32 | 0.00 | 0.75 | -9.74 | 242.86 | 24.58 | 236.20 | 0.4954 | -246.0 | -350.7 | |
| 0.00 | 1.06 | 0.00 | 0.62 | -13.22 | 243.02 | 24.73 | 230.80 | 0.5277 | 815.0 | 622.8 | |
| 0.00 | 1.15 | 0.00 | 0.67 | -12.96 | 242.96 | 24.67 | 231.12 | 0.5246 | 756.0 | 681.8 | |
| 0.00 | 4.59 | 0.00 | 2.66 | -14.12 | 241.79 | 23.51 | 228.04 | 0.5223 | 635.0 | 416.6 | |
| 0.00 | 1.24 | 0.00 | 0.71 | -13.73 | 241.75 | 23.47 | 228.56 | 0.5181 | 765.0 | 617.2 | |
| 0.00 | 4.68 | 0.00 | 2.70 | -14.33 | 240.97 | 22.69 | 226.71 | 0.5155 | 610.0 | 508.9 | |
| 0.62 | 3.09 | 0.36 | 1.78 | -14.07 | 240.84 | 22.56 | 226.93 | 0.5114 | 827.3 | 648.1 | |
| 0.00 | 1.41 | 0.00 | 0.81 | -13.52 | 240.75 | 22.47 | 227.64 | 0.5050 | 797.0 | 641.9 | |
| 0.35 | 1.32 | 0.20 | 0.76 | -13.90 | 240.63 | 22.34 | 226.91 | 0.5073 | 849.5 | 725.5 | |
| 5.21 | 7.85 | 2.94 | 4.43 | -11.55 | 240.24 | 21.96 | 230.05 | 0.4799 | -757.8 | -495.1 | |
| 0.00 | 1.68 | 0.00 | 0.93 | -8.91 | 240.02 | 21.74 | 234.31 | 0.4524 | -648.0 | -658.5 | |
| 0.00 | 1.59 | 0.00 | 0.89 | -11.14 | 240.11 | 21.83 | 230.56 | 0.4743 | 814.0 | 679.2 | |
| 0.00 | 2.21 | 0.00 | 1.28 | -16.02 | 240.49 | 22.20 | 223.72 | 0.5276 | 653.0 | 573.4 | |
| 0.00 | 3.44 | 0.00 | 1.93 | -11.03 | 239.84 | 21.56 | 230.39 | 0.4701 | 664.0 | 701.6 | |
| 0.00 | 1.50 | 0.00 | 0.86 | -13.87 | 240.02 | 21.74 | 226.17 | 0.5004 | 636.0 | 472.5 | |
| 0.00 | 1.32 | 0.00 | 0.74 | -11.52 | 239.62 | 21.33 | 229.27 | 0.4723 | 580.0 | 557.6 | |
| 0.00 | 1.06 | 0.00 | 0.59 | -9.24 | 239.23 | 20.94 | 232.66 | 0.4456 | 716.0 | 639.5 | |
| 0.00 | 4.41 | 0.00 | 2.51 | -13.80 | 239.35 | 21.07 | 225.36 | 0.4925 | 749.0 | 697.0 | |
| 1.06 | 2.38 | 0.59 | 1.33 | -11.33 | 238.78 | 20.50 | 228.45 | 0.4606 | 802.3 | 646.6 | |
| 0.00 | 1.59 | 0.00 | 0.88 | -10.22 | 238.67 | 20.38 | 230.17 | 0.4482 | 861.0 | 736.4 | |
| 0.00 | 1.06 | 0.00 | 0.60 | -14.23 | 238.86 | 20.58 | 224.06 | 0.4918 | 713.0 | 583.2 | |
| 0.62 | 49.42 | 0.34 | 27.50 | -11.48 | 238.56 | 20.28 | 227.90 | 0.4596 | 703.1 | 268.5 | |
| 0.71 | -73.00 | 0.39 | -73.00 | -11.22 | 238.48 | 20.19 | 228.21 | 0.4560 | 906.9 | 999999 | |
| 0.00 | 0.44 | 0.00 | 0.25 | -12.87 | 238.44 | 20.16 | 225.52 | 0.4728 | 606.0 | 533.2 | |
| 0.62 | -73.00 | 0.34 | -73.00 | -11.84 | 238.29 | 20.01 | 226.92 | 0.4604 | 657.9 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.60 | -14.05 | 238.45 | 20.16 | 223.74 | 0.4855 | 759.0 | 623.5 | |
| 0.44 | -73.00 | 0.25 | -73.00 | -11.55 | 238.14 | 19.86 | 227.18 | 0.4556 | 889.6 | 999999 | |
| 0.00 | 1.68 | 0.00 | 0.92 | -10.36 | 237.61 | 19.32 | 228.40 | 0.4371 | -869.0 | -764.5 | |
| 0.00 | 1.15 | 0.00 | 0.63 | -10.14 | 237.53 | 19.24 | 228.67 | 0.4339 | -626.0 | -484.2 | |
| 0.00 | 0.79 | 0.00 | 0.44 | -12.66 | 237.31 | 19.03 | 224.19 | 0.4583 | 596.0 | 508.6 | |
| 0.53 | 6.44 | 0.29 | 3.55 | -11.41 | 236.93 | 18.65 | 225.61 | 0.4404 | -1006.0 | -753.4 | |
| 0.00 | 1.68 | 0.00 | 0.91 | -8.08 | 236.74 | 18.46 | 231.29 | 0.4034 | -774.0 | -608.4 | |
| 0.00 | 1.15 | 0.00 | 0.62 | -7.92 | 236.61 | 18.32 | 231.40 | 0.4001 | -725.0 | -509.8 | |
| 0.00 | 1.77 | 0.00 | 0.97 | -11.53 | 236.78 | 18.49 | 225.17 | 0.4400 | -936.0 | -746.9 | |
| 0.00 | 1.24 | 0.00 | 0.68 | -11.30 | 236.73 | 18.44 | 225.47 | 0.4371 | -968.0 | -784.8 | |
| 0.00 | 3.27 | 0.00 | 1.85 | -15.73 | 236.95 | 18.67 | 219.21 | 0.4894 | -921.0 | -652.2 | |
| 0.97 | 2.47 | 0.55 | 1.40 | -15.89 | 236.80 | 18.52 | 218.78 | 0.4897 | -848.7 | -705.1 | |
| 0.00 | 0.79 | 0.00 | 0.44 | -11.26 | 236.40 | 18.12 | 225.03 | 0.4329 | -692.0 | -593.1 | |
| 0.00 | 1.77 | 0.00 | 1.00 | -16.11 | 236.76 | 18.47 | 218.41 | 0.4920 | -686.0 | -577.9 | |
| 0.44 | 1.85 | 0.24 | 1.02 | -11.51 | 236.35 | 18.07 | 224.54 | 0.4352 | -851.4 | -726.5 | |
| 0.00 | 0.79 | 0.00 | 0.44 | -12.88 | 236.45 | 18.17 | 222.52 | 0.4516 | -665.0 | -534.8 | |
| 2.65 | 50.57 | 1.48 | 28.16 | -13.71 | 236.48 | 18.20 | 221.32 | 0.4614 | -729.8 | -200.8 | |
| 8.65 | -93.00 | 4.81 | -93.00 | -13.57 | 236.24 | 17.96 | 221.15 | 0.4574 | -1076.8 | 999999 | |
| 2.65 | 4.85 | 1.50 | 2.75 | -15.87 | 236.44 | 18.16 | 218.25 | 0.4861 | -943.8 | -732.4 | |
| 0.00 | 1.15 | 0.00 | 0.63 | -11.69 | 236.08 | 17.79 | 223.80 | 0.4341 | -741.0 | -672.8 | |
| 5.74 | -93.00 | 3.20 | -93.00 | -13.83 | 236.20 | 17.91 | 220.71 | 0.4599 | -869.4 | 999999 | |
| 0.00 | 1.59 | 0.00 | 0.88 | -12.45 | 236.10 | 17.81 | 222.62 | 0.4430 | -795.0 | -644.8 | |
| 0.62 | 5.82 | 0.34 | 3.22 | -12.64 | 236.01 | 17.73 | 222.19 | 0.4442 | -864.9 | -528.3 | |
| 0.00 | 1.59 | 0.00 | 0.90 | -16.12 | 236.20 | 17.92 | 217.55 | 0.4869 | -637.0 | -536.8 | |
| 0.00 | 1.06 | 0.00 | 0.58 | -11.81 | 235.86 | 17.57 | 223.26 | 0.4331 | -771.0 | -559.3 | |
| 1.50 | 12.27 | 0.84 | 6.85 | -14.46 | 235.76 | 17.48 | 219.11 | 0.4629 | -1017.2 | -747.4 | |
| 0.00 | 3.00 | 0.00 | 1.65 | -12.59 | 235.52 | 17.24 | 221.48 | 0.4386 | -696.0 | -605.9 | |
| 0.00 | 0.62 | 0.00 | 0.34 | -13.58 | 235.53 | 17.25 | 220.00 | 0.4502 | -718.0 | -580.1 | |
| 0.00 | 2.65 | 0.00 | 1.46 | -13.03 | 235.46 | 17.17 | 220.69 | 0.4431 | -704.0 | -694.7 | |
| 10.15 | 63.01 | 5.56 | 34.54 | -12.01 | 235.32 | 17.04 | 222.05 | 0.4298 | -1061.6 | -657.2 | |
| 0.00 | 2.12 | 0.00 | 1.17 | -12.83 | 235.28 | 17.00 | 220.70 | 0.4390 | -594.0 | -438.2 | |
| 1.77 | -106.00 | 0.97 | -106.00 | -12.32 | 235.15 | 16.87 | 221.27 | 0.4316 | -984.7 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.49 | -14.60 | 235.32 | 17.03 | 218.20 | 0.4603 | -630.0 | -582.3 | |
| 43.69 | 472.16 | 23.61 | 254.97 | -10.03 | 234.79 | 16.51 | 224.45 | 0.4013 | -1352.2 | -484.9 | |
| 0.00 | 3.27 | 0.00 | 1.78 | -11.52 | 234.81 | 16.53 | 221.97 | 0.4186 | -694.0 | -660.1 | |
| 0.00 | 1.41 | 0.00 | 0.84 | -21.94 | 235.70 | 17.42 | 210.24 | 0.5534 | -702.0 | -554.1 | |
| 2.47 | -106.00 | 1.35 | -106.00 | -12.40 | 234.77 | 16.49 | 220.50 | 0.4286 | -1015.0 | 999999 | |
| 0.00 | 0.62 | 0.00 | 0.33 | -6.97 | 234.50 | 16.22 | 229.86 | 0.3643 | -908.0 | -800.3 | |
| 0.00 | 1.06 | 0.00 | 0.56 | -7.34 | 234.39 | 16.11 | 228.89 | 0.3668 | -672.0 | -558.8 | |
| 1.32 | -110.00 | 0.72 | -110.00 | -11.56 | 234.43 | 16.15 | 221.23 | 0.4152 | -780.0 | 999999 | |
| 0.00 | 1.59 | 0.00 | 0.87 | -12.36 | 234.38 | 16.10 | 219.89 | 0.4241 | -842.0 | -670.4 | |
| 10.24 | -110.00 | 5.52 | -110.00 | -10.23 | 234.20 | 15.92 | 223.05 | 0.3970 | -1462.4 | 999999 | |
| 7.77 | -110.00 | 4.19 | -110.00 | -10.51 | 234.18 | 15.90 | 222.53 | 0.4002 | -1156.0 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.64 | -14.63 | 234.44 | 16.16 | 216.70 | 0.4525 | -665.0 | -657.2 | |
| 12.80 | -110.00 | 6.94 | -110.00 | -11.33 | 234.16 | 15.88 | 221.13 | 0.4096 | -1023.2 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.49 | -14.82 | 234.36 | 16.08 | 216.30 | 0.4541 | -612.0 | -523.9 | |
| 0.00 | 0.88 | 0.00 | 0.48 | -12.16 | 234.18 | 15.90 | 219.84 | 0.4197 | -717.0 | -571.6 | |
| 0.00 | 1.32 | 0.00 | 0.71 | -9.06 | 233.80 | 15.51 | 224.42 | 0.3790 | -1115.0 | -959.2 | |
| 2.91 | -110.00 | 1.58 | -110.00 | -11.17 | 233.87 | 15.58 | 220.87 | 0.4045 | -1152.7 | 999999 | |
| 13.77 | -110.00 | 7.43 | -110.00 | -10.84 | 233.69 | 15.41 | 221.08 | 0.3988 | -1229.4 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.47 | -9.21 | 233.52 | 15.24 | 223.63 | 0.3776 | -168.0 | -156.2 | |
| 1.06 | -110.00 | 0.57 | -110.00 | -11.09 | 233.55 | 15.26 | 220.40 | 0.4003 | -827.6 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.52 | -7.95 | 233.31 | 15.03 | 225.64 | 0.3607 | 697.0 | 544.3 | |
| 0.00 | 1.24 | 0.00 | 0.66 | -8.04 | 233.16 | 14.87 | 225.17 | 0.3600 | 766.0 | 566.3 | |
| 0.00 | 0.88 | 0.00 | 0.46 | -6.44 | 232.45 | 14.17 | 227.11 | 0.3334 | -871.0 | -674.7 | |
| 0.00 | 3.18 | 0.00 | 1.67 | -6.62 | 232.36 | 14.08 | 226.53 | 0.3344 | -1028.0 | -759.4 | |
| 0.00 | 0.79 | 0.00 | 0.43 | -13.79 | 232.46 | 14.18 | 214.30 | 0.4238 | -783.0 | -646.3 | |
| 0.00 | 0.97 | 0.00 | 0.53 | -12.96 | 232.38 | 14.09 | 215.31 | 0.4123 | -862.0 | -741.7 | |
| 0.00 | 0.79 | 0.00 | 0.43 | -12.98 | 232.19 | 13.91 | 214.91 | 0.4109 | -855.0 | -749.0 | |
| 0.00 | 1.15 | 0.00 | 0.61 | -9.19 | 231.95 | 13.66 | 220.55 | 0.3603 | -871.0 | -716.1 | |
| 0.00 | 1.32 | 0.00 | 0.71 | -10.21 | 231.71 | 13.42 | 218.24 | 0.3707 | -803.0 | -591.5 | |
| 0.00 | 1.85 | 0.00 | 0.99 | -10.18 | 231.45 | 13.17 | 217.78 | 0.3677 | -830.0 | -650.9 | |
| 0.00 | 0.97 | 0.00 | 0.51 | -7.98 | 231.19 | 12.90 | 221.20 | 0.3372 | -848.0 | -693.4 | |
| 0.00 | 1.15 | 0.00 | 0.60 | -8.09 | 230.66 | 12.38 | 219.80 | 0.3330 | -881.0 | -729.8 | |
| 0.00 | 1.77 | 0.00 | 0.98 | -17.32 | 229.96 | 11.68 | 205.40 | 0.4522 | -757.0 | -654.0 | |
| 0.00 | 0.44 | 0.00 | 0.25 | -17.77 | 229.47 | 11.19 | 204.05 | 0.4554 | -735.0 | -601.6 | |
| 0.00 | 2.12 | 0.00 | 1.18 | -17.90 | 229.16 | 10.88 | 203.33 | 0.4552 | -797.0 | -693.6 | |
| 0.00 | 0.97 | 0.00 | 0.52 | -15.17 | 225.38 | 7.10 | 197.71 | 0.3939 | -730.0 | -587.2 | |
| 0.00 | 0.79 | 0.00 | 0.43 | -16.02 | 223.34 | 5.05 | 192.32 | 0.3986 | -794.0 | -676.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
