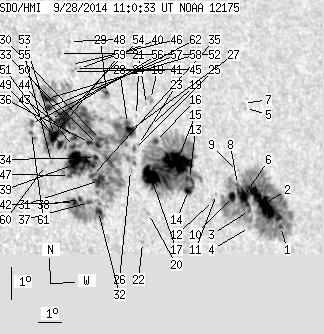

SDO HMI 2014-09-28 11:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 270.12 | 1189.65 | 184.21 | 811.79 | 15.22 | 261.48 | 43.20 | 285.14 | 0.6857 | -39.0 | -94.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-28 11:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.85 | 292.56 | 1.38 | 213.95 | 12.93 | 266.79 | 48.51 | 281.26 | 0.7467 | -640.5 | -300.6 | |
| 42.19 | -1.00 | 30.99 | -1.00 | 13.68 | 266.25 | 47.96 | 282.31 | 0.7409 | -888.3 | 999999 | |
| 0.97 | -1.00 | 0.70 | -1.00 | 13.53 | 265.51 | 47.23 | 282.16 | 0.7324 | -732.3 | 999999 | |
| 0.00 | 1.59 | 0.00 | 1.15 | 13.02 | 265.38 | 47.10 | 281.47 | 0.7306 | -302.0 | -272.9 | |
| 0.00 | 0.71 | 0.00 | 0.52 | 16.60 | 266.24 | 47.96 | 286.24 | 0.7436 | -569.0 | -487.2 | |
| 15.97 | -1.00 | 11.56 | -1.00 | 13.97 | 265.36 | 47.07 | 282.78 | 0.7309 | -908.5 | 999999 | |
| 0.00 | 0.79 | 0.00 | 0.59 | 16.76 | 266.20 | 47.92 | 286.46 | 0.7434 | -697.0 | -578.6 | |
| 0.53 | -1.00 | 0.38 | -1.00 | 14.35 | 265.19 | 46.90 | 283.31 | 0.7293 | -654.5 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.64 | 14.74 | 265.30 | 47.01 | 283.84 | 0.7309 | 321.0 | 189.6 | |
| 5.47 | -1.00 | 3.92 | -1.00 | 14.01 | 264.87 | 46.59 | 282.88 | 0.7253 | -990.3 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.69 | 14.13 | 264.18 | 45.90 | 283.11 | 0.7173 | -613.0 | -442.0 | |
| 0.00 | 1.06 | 0.00 | 0.75 | 13.96 | 264.00 | 45.72 | 282.89 | 0.7151 | -745.0 | -644.9 | |
| 4.85 | 261.94 | 3.38 | 180.47 | 14.68 | 263.13 | 44.84 | 284.00 | 0.7054 | -678.9 | -367.0 | |
| 5.56 | -13.00 | 3.86 | -13.00 | 14.35 | 263.00 | 44.72 | 283.55 | 0.7035 | -277.7 | 999999 | |
| 38.92 | -13.00 | 26.96 | -13.00 | 15.23 | 262.71 | 44.42 | 284.84 | 0.7010 | -1070.3 | 999999 | |
| 2.03 | -13.00 | 1.39 | -13.00 | 15.94 | 261.98 | 43.70 | 285.96 | 0.6933 | -775.9 | 999999 | |
| 24.80 | -13.00 | 16.83 | -13.00 | 14.93 | 261.50 | 43.22 | 284.59 | 0.6860 | 646.9 | 999999 | |
| 0.00 | 4.50 | 0.00 | 3.10 | 17.22 | 262.13 | 43.85 | 287.77 | 0.6972 | -560.0 | -517.3 | |
| 0.00 | 1.41 | 0.00 | 0.97 | 16.44 | 261.91 | 43.62 | 286.69 | 0.6931 | -717.0 | -492.1 | |
| 0.00 | 0.88 | 0.00 | 0.59 | 13.80 | 261.14 | 42.86 | 282.98 | 0.6802 | 400.0 | 327.0 | |
| 0.00 | 0.71 | 0.00 | 0.48 | 17.08 | 261.92 | 43.63 | 287.62 | 0.6944 | -504.0 | -451.8 | |
| 0.00 | 1.32 | 0.00 | 0.89 | 12.95 | 260.70 | 42.42 | 281.77 | 0.6738 | 574.0 | 494.4 | |
| 0.00 | 0.97 | 0.00 | 0.66 | 15.91 | 261.24 | 42.96 | 286.04 | 0.6842 | -748.0 | -659.4 | |
| 0.00 | 1.06 | 0.00 | 0.72 | 16.79 | 261.40 | 43.11 | 287.29 | 0.6876 | -617.0 | -487.7 | |
| 0.62 | 1.94 | 0.42 | 1.31 | 15.80 | 261.04 | 42.76 | 285.92 | 0.6816 | -938.6 | -762.9 | |
| 0.00 | 2.74 | 0.00 | 1.84 | 15.15 | 260.70 | 42.42 | 285.03 | 0.6765 | -645.0 | -601.5 | |
| 6.62 | 538.35 | 4.47 | 353.34 | 16.36 | 260.98 | 42.69 | 286.75 | 0.6818 | -952.7 | 116.0 | |
| 0.26 | -27.00 | 0.18 | -27.00 | 16.58 | 260.95 | 42.67 | 287.07 | 0.6818 | -611.3 | 999999 | |
| 1.32 | 11.21 | 0.89 | 7.51 | 17.55 | 260.33 | 42.05 | 288.63 | 0.6762 | -853.9 | -423.2 | |
| 1.41 | -27.00 | 0.94 | -27.00 | 16.18 | 259.70 | 41.42 | 286.74 | 0.6658 | -362.8 | 999999 | |
| 8.74 | -27.00 | 5.74 | -27.00 | 14.95 | 259.36 | 41.07 | 284.95 | 0.6594 | 786.8 | 999999 | |
| 3.35 | -27.00 | 2.19 | -27.00 | 14.02 | 259.11 | 40.82 | 283.59 | 0.6548 | 802.0 | 999999 | |
| 2.12 | -27.00 | 1.40 | -27.00 | 16.04 | 259.54 | 41.26 | 286.56 | 0.6635 | 254.7 | 999999 | |
| 2.03 | -27.00 | 1.34 | -27.00 | 15.65 | 259.36 | 41.08 | 286.02 | 0.6606 | 441.0 | 999999 | |
| 1.94 | -27.00 | 1.27 | -27.00 | 15.12 | 259.11 | 40.83 | 285.26 | 0.6565 | 874.2 | 999999 | |
| 2.91 | -27.00 | 1.92 | -27.00 | 16.13 | 259.23 | 40.95 | 286.75 | 0.6598 | 426.4 | 999999 | |
| 1.24 | -27.00 | 0.80 | -27.00 | 14.32 | 258.80 | 40.52 | 284.09 | 0.6513 | 819.4 | 999999 | |
| 1.50 | -27.00 | 0.97 | -27.00 | 14.44 | 258.46 | 40.18 | 284.33 | 0.6471 | 770.9 | 999999 | |
| 36.36 | -27.00 | 23.68 | -27.00 | 15.55 | 258.68 | 40.39 | 286.00 | 0.6518 | 927.3 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.70 | 18.39 | 259.43 | 41.15 | 290.09 | 0.6672 | 106.0 | 126.8 | |
| 0.00 | 0.79 | 0.00 | 0.53 | 18.41 | 259.27 | 40.98 | 290.15 | 0.6652 | 416.0 | 307.6 | |
| 2.82 | -27.00 | 1.82 | -27.00 | 14.37 | 258.20 | 39.92 | 284.26 | 0.6437 | 1095.0 | 999999 | |
| 2.91 | -27.00 | 1.90 | -27.00 | 16.32 | 258.66 | 40.38 | 287.17 | 0.6530 | 647.4 | 999999 | |
| 2.21 | -27.00 | 1.44 | -27.00 | 16.05 | 258.55 | 40.27 | 286.79 | 0.6511 | 830.5 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.64 | 18.32 | 259.12 | 40.83 | 290.07 | 0.6631 | 520.0 | 440.0 | |
| 0.00 | 0.97 | 0.00 | 0.64 | 18.54 | 259.14 | 40.85 | 290.38 | 0.6639 | 443.0 | 371.1 | |
| 1.41 | -27.00 | 0.91 | -27.00 | 15.19 | 258.18 | 39.90 | 285.54 | 0.6448 | 884.2 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.59 | 19.24 | 259.27 | 40.98 | 291.39 | 0.6673 | 554.0 | 505.1 | |
| 0.53 | -27.00 | 0.34 | -27.00 | 16.05 | 258.18 | 39.90 | 286.87 | 0.6464 | 871.2 | 999999 | |
| 18.80 | -27.00 | 12.23 | -27.00 | 16.90 | 258.35 | 40.07 | 288.12 | 0.6504 | 742.0 | 999999 | |
| 3.71 | -27.00 | 2.40 | -27.00 | 16.15 | 258.04 | 39.76 | 287.05 | 0.6449 | 1015.1 | 999999 | |
| 0.00 | 1.24 | 0.00 | 0.81 | 18.91 | 258.74 | 40.46 | 291.05 | 0.6601 | 456.0 | 439.2 | |
| 12.09 | -27.00 | 7.80 | -27.00 | 16.44 | 257.87 | 39.59 | 287.54 | 0.6433 | 1056.1 | 999999 | |
| 0.79 | -27.00 | 0.51 | -27.00 | 16.72 | 257.90 | 39.61 | 287.96 | 0.6442 | 861.0 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.74 | 15.64 | 257.56 | 39.27 | 286.37 | 0.6376 | 710.0 | 573.1 | |
| 0.79 | -27.00 | 0.51 | -27.00 | 16.94 | 257.83 | 39.55 | 288.31 | 0.6439 | 888.4 | 999999 | |
| 3.35 | 48.80 | 2.17 | 31.73 | 17.31 | 257.84 | 39.56 | 288.87 | 0.6449 | 880.5 | 320.7 | |
| 5.38 | -57.00 | 3.49 | -57.00 | 17.58 | 257.88 | 39.59 | 289.29 | 0.6460 | 790.3 | 999999 | |
| 1.24 | -27.00 | 0.79 | -27.00 | 16.22 | 257.53 | 39.25 | 287.28 | 0.6385 | 1012.8 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.62 | 15.57 | 257.30 | 39.01 | 286.31 | 0.6341 | 823.0 | 717.5 | |
| 0.53 | 3.88 | 0.34 | 2.48 | 16.60 | 256.98 | 38.69 | 288.01 | 0.6322 | 955.2 | 785.9 | |
| 0.00 | 3.35 | 0.00 | 2.14 | 16.87 | 257.04 | 38.76 | 288.42 | 0.6337 | 870.0 | 758.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
