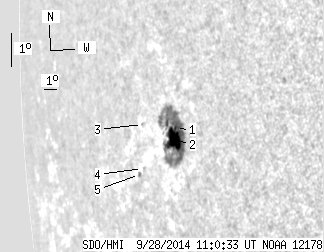

SDO HMI 2014-09-28 11:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.91 | 102.64 | 26.32 | 129.88 | -0.96 | 151.67 | -66.61 | 93.98 | 0.9215 | 472.1 | 182.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-28 11:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.26 | 99.20 | 0.33 | 124.99 | -0.59 | 151.93 | -66.35 | 93.62 | 0.9195 | 742.7 | 188.9 | |
| 20.65 | -1.00 | 25.99 | -1.00 | -0.94 | 151.77 | -66.51 | 93.97 | 0.9209 | 506.1 | 999999 | |
| 0.00 | 0.97 | 0.00 | 1.36 | -0.76 | 149.29 | -69.00 | 93.42 | 0.9367 | -337.0 | -372.3 | |
| 0.00 | 0.62 | 0.00 | 0.87 | -2.11 | 149.19 | -69.09 | 94.83 | 0.9384 | 306.0 | 340.6 | |
| 0.00 | 1.85 | 0.00 | 2.66 | -2.32 | 148.91 | -69.38 | 95.02 | 0.9402 | 203.0 | 160.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
