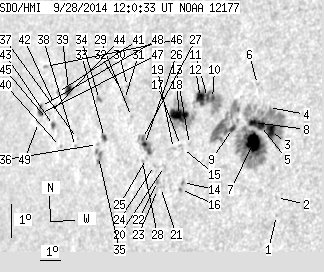

SDO HMI 2014-09-28 12:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 81.36 | 395.72 | 61.43 | 296.53 | 12.26 | 168.87 | -48.87 | 79.62 | 0.7495 | 23.8 | 10.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-28 12:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.97 | 0.00 | 0.68 | 9.89 | 172.39 | -45.35 | 82.82 | 0.7086 | -616.0 | -516.3 | |
| 0.00 | 1.15 | 0.00 | 0.80 | 10.43 | 172.29 | -45.44 | 82.06 | 0.7099 | -562.0 | -416.8 | |
| 9.44 | 230.22 | 6.70 | 165.87 | 12.41 | 171.62 | -46.12 | 79.31 | 0.7187 | -896.5 | -206.8 | |
| 0.00 | 0.71 | 0.00 | 0.50 | 13.09 | 171.37 | -46.37 | 78.38 | 0.7220 | -326.0 | -239.5 | |
| 5.65 | -3.00 | 4.04 | -3.00 | 12.52 | 171.15 | -46.59 | 79.18 | 0.7243 | -771.7 | 999999 | |
| 0.00 | 1.32 | 0.00 | 0.96 | 13.74 | 170.71 | -47.03 | 77.54 | 0.7302 | -451.0 | -381.9 | |
| 18.53 | -3.00 | 13.31 | -3.00 | 11.99 | 170.95 | -46.78 | 79.93 | 0.7263 | -857.5 | 999999 | |
| 5.03 | -3.00 | 3.62 | -3.00 | 12.59 | 170.82 | -46.92 | 79.11 | 0.7282 | -583.6 | 999999 | |
| 2.47 | -3.00 | 1.81 | -3.00 | 12.33 | 169.92 | -47.82 | 79.51 | 0.7385 | -507.4 | 999999 | |
| 1.76 | 40.77 | 1.32 | 30.60 | 13.14 | 168.78 | -48.96 | 78.47 | 0.7519 | 863.4 | 530.6 | |
| 2.91 | -10.00 | 2.19 | -10.00 | 13.15 | 168.54 | -49.19 | 78.47 | 0.7546 | 794.6 | 999999 | |
| 5.82 | -10.00 | 4.41 | -10.00 | 13.12 | 168.22 | -49.52 | 78.53 | 0.7582 | 742.9 | 999999 | |
| 0.00 | 0.26 | 0.00 | 0.20 | 11.68 | 168.06 | -49.67 | 80.45 | 0.7594 | 487.0 | 521.7 | |
| 0.00 | 1.76 | 0.00 | 1.34 | 10.52 | 168.00 | -49.74 | 81.98 | 0.7600 | 698.0 | 568.3 | |
| 0.00 | 0.26 | 0.00 | 0.20 | 11.53 | 167.76 | -49.97 | 80.65 | 0.7627 | -244.0 | -330.7 | |
| 0.00 | 1.32 | 0.00 | 1.01 | 10.30 | 167.95 | -49.79 | 82.27 | 0.7605 | 629.0 | 542.5 | |
| 0.00 | 1.32 | 0.00 | 1.01 | 11.61 | 167.65 | -50.09 | 80.54 | 0.7640 | -230.0 | -156.6 | |
| 16.50 | 49.59 | 12.70 | 38.09 | 12.50 | 167.37 | -50.36 | 79.39 | 0.7672 | 697.6 | 372.9 | |
| 0.00 | 1.41 | 0.00 | 1.09 | 11.49 | 167.34 | -50.39 | 80.71 | 0.7673 | 254.0 | 186.4 | |
| 0.00 | 0.97 | 0.00 | 0.75 | 10.92 | 167.04 | -50.69 | 81.46 | 0.7706 | 629.0 | 536.9 | |
| 0.00 | 0.53 | 0.00 | 0.41 | 10.28 | 166.99 | -50.74 | 82.29 | 0.7711 | 464.0 | 406.8 | |
| 0.00 | 2.21 | 0.00 | 1.72 | 10.44 | 166.81 | -50.92 | 82.08 | 0.7731 | 460.0 | 393.1 | |
| 0.00 | 0.44 | 0.00 | 0.34 | 10.20 | 166.86 | -50.87 | 82.39 | 0.7725 | 244.0 | 221.4 | |
| 0.00 | 0.53 | 0.00 | 0.41 | 10.90 | 166.56 | -51.18 | 81.48 | 0.7759 | 490.0 | 519.5 | |
| 0.00 | 0.88 | 0.00 | 0.70 | 11.08 | 166.12 | -51.61 | 81.25 | 0.7806 | 536.0 | 494.6 | |
| 2.03 | 14.29 | 1.61 | 11.31 | 11.48 | 165.92 | -51.82 | 80.73 | 0.7828 | 792.5 | 538.4 | |
| 0.71 | -26.00 | 0.56 | -26.00 | 11.65 | 165.77 | -51.96 | 80.52 | 0.7843 | 652.4 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.91 | 10.97 | 165.95 | -51.79 | 81.39 | 0.7824 | 526.0 | 430.9 | |
| 0.00 | 1.06 | 0.00 | 0.85 | 12.26 | 165.05 | -52.68 | 79.76 | 0.7920 | 504.0 | 354.1 | |
| 0.00 | 1.15 | 0.00 | 0.94 | 13.13 | 164.59 | -53.15 | 78.67 | 0.7970 | 609.0 | 556.8 | |
| 0.00 | 2.03 | 0.00 | 1.66 | 12.73 | 164.56 | -53.18 | 79.17 | 0.7972 | 583.0 | 516.0 | |
| 0.00 | 0.97 | 0.00 | 0.80 | 12.96 | 164.38 | -53.35 | 78.89 | 0.7991 | 453.0 | 392.0 | |
| 1.94 | 4.24 | 1.61 | 3.51 | 11.51 | 163.87 | -53.87 | 80.71 | 0.8041 | -562.8 | -426.4 | |
| 0.71 | 2.91 | 0.59 | 2.45 | 12.61 | 163.28 | -54.46 | 79.35 | 0.8102 | -672.6 | -483.4 | |
| 0.00 | 6.79 | 0.00 | 5.65 | 10.91 | 163.72 | -54.02 | 81.45 | 0.8057 | -766.0 | -551.2 | |
| 0.00 | 1.24 | 0.00 | 1.03 | 11.27 | 163.57 | -54.17 | 81.01 | 0.8072 | -418.0 | -333.6 | |
| 0.00 | 0.26 | 0.00 | 0.23 | 11.35 | 162.48 | -55.26 | 80.91 | 0.8181 | -259.0 | -157.0 | |
| 0.00 | 0.79 | 0.00 | 0.68 | 11.10 | 162.44 | -55.29 | 81.21 | 0.8185 | -216.0 | -222.2 | |
| 4.24 | 5.82 | 3.71 | 5.10 | 12.75 | 161.55 | -56.19 | 79.20 | 0.8272 | 605.8 | 450.3 | |
| 0.00 | 0.97 | 0.00 | 0.85 | 11.02 | 161.64 | -56.09 | 81.29 | 0.8263 | 530.0 | 448.9 | |
| 0.00 | 1.50 | 0.00 | 1.33 | 12.61 | 160.98 | -56.76 | 79.38 | 0.8326 | 406.0 | 388.8 | |
| 0.00 | 0.79 | 0.00 | 0.71 | 12.23 | 160.93 | -56.80 | 79.82 | 0.8330 | 376.0 | 389.3 | |
| 1.41 | 3.00 | 1.25 | 2.66 | 11.61 | 161.08 | -56.66 | 80.58 | 0.8317 | 610.5 | 496.5 | |
| 0.00 | 1.32 | 0.00 | 1.18 | 11.94 | 160.75 | -56.99 | 80.18 | 0.8348 | 566.0 | 490.1 | |
| 0.00 | 0.79 | 0.00 | 0.71 | 11.75 | 160.69 | -57.04 | 80.40 | 0.8353 | 400.0 | 322.0 | |
| 0.00 | 1.41 | 0.00 | 1.29 | 13.31 | 160.04 | -57.70 | 78.54 | 0.8414 | 508.0 | 400.4 | |
| 1.68 | 5.74 | 1.52 | 5.20 | 11.89 | 160.25 | -57.49 | 80.23 | 0.8394 | 433.3 | 324.5 | |
| 0.53 | -47.00 | 0.48 | -47.00 | 12.10 | 160.18 | -57.56 | 79.98 | 0.8401 | 192.5 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.80 | 11.61 | 160.22 | -57.51 | 80.56 | 0.8397 | 248.0 | 217.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
