SDO HMI 2014-09-28 13:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 287.80 | 1155.30 | 198.72 | 802.89 | 15.20 | 261.61 | 44.43 | 284.91 | 0.7005 | -31.8 | -104.2 | |
|
previous
or next observation for the same group /

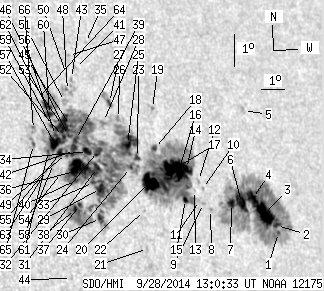

back to the solar disc SDO HMI 2014-09-28 13:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.15 | 295.55 | 0.87 | 220.45 | 12.95 | 266.78 | 49.59 | 281.24 | 0.7589 | -633.8 | -296.7 | |
| 3.00 | -1.00 | 2.27 | -1.00 | 13.17 | 266.74 | 49.55 | 281.52 | 0.7586 | -612.6 | 999999 | |
| 26.56 | -1.00 | 19.94 | -1.00 | 13.57 | 266.28 | 49.10 | 282.09 | 0.7537 | -929.3 | 999999 | |
| 10.32 | -1.00 | 7.69 | -1.00 | 14.07 | 265.86 | 48.67 | 282.78 | 0.7492 | -884.2 | 999999 | |
| 0.00 | 2.56 | 0.00 | 1.93 | 16.74 | 266.28 | 49.09 | 286.29 | 0.7563 | -642.0 | -488.8 | |
| 12.62 | -1.00 | 9.30 | -1.00 | 14.00 | 265.32 | 48.13 | 282.72 | 0.7431 | -914.6 | 999999 | |
| 5.12 | -1.00 | 3.74 | -1.00 | 14.00 | 264.86 | 47.67 | 282.78 | 0.7379 | -986.5 | 999999 | |
| 0.00 | 1.32 | 0.00 | 0.95 | 13.91 | 263.87 | 46.69 | 282.73 | 0.7264 | -614.0 | -565.7 | |
| 0.00 | 1.15 | 0.00 | 0.82 | 14.11 | 263.61 | 46.42 | 283.03 | 0.7235 | -737.0 | -571.5 | |
| 0.00 | 1.41 | 0.00 | 1.01 | 14.57 | 263.69 | 46.50 | 283.65 | 0.7248 | 359.0 | 390.8 | |
| 0.00 | 0.97 | 0.00 | 0.69 | 14.22 | 263.46 | 46.27 | 283.19 | 0.7218 | -415.0 | -405.2 | |
| 0.00 | 1.41 | 0.00 | 1.01 | 14.82 | 263.58 | 46.39 | 284.02 | 0.7238 | -383.0 | -242.9 | |
| 0.00 | 0.97 | 0.00 | 0.69 | 14.54 | 263.32 | 46.13 | 283.65 | 0.7205 | -336.0 | -319.2 | |
| 8.29 | 243.85 | 5.89 | 170.96 | 15.22 | 263.15 | 45.96 | 284.63 | 0.7192 | -715.3 | -353.8 | |
| 2.65 | -14.00 | 1.87 | -14.00 | 14.30 | 262.85 | 45.67 | 283.37 | 0.7148 | -20.6 | 999999 | |
| 17.29 | -14.00 | 12.21 | -14.00 | 15.16 | 262.77 | 45.59 | 284.59 | 0.7148 | -1068.8 | 999999 | |
| 20.03 | -14.00 | 14.04 | -14.00 | 15.20 | 262.38 | 45.20 | 284.69 | 0.7102 | -1250.9 | 999999 | |
| 2.21 | -14.00 | 1.54 | -14.00 | 15.94 | 261.93 | 44.74 | 285.80 | 0.7058 | -703.2 | 999999 | |
| 0.00 | 1.85 | 0.00 | 1.30 | 17.15 | 262.20 | 45.02 | 287.46 | 0.7108 | -624.0 | -567.7 | |
| 20.73 | -14.00 | 14.31 | -14.00 | 14.94 | 261.43 | 44.25 | 284.45 | 0.6985 | 689.9 | 999999 | |
| 0.00 | 1.24 | 0.00 | 0.84 | 12.97 | 260.87 | 43.68 | 281.67 | 0.6896 | 614.0 | 450.1 | |
| 0.00 | 0.88 | 0.00 | 0.60 | 14.12 | 261.01 | 43.82 | 283.32 | 0.6924 | 559.0 | 490.7 | |
| 2.21 | 476.68 | 1.52 | 318.61 | 15.73 | 261.12 | 43.94 | 285.63 | 0.6959 | -931.2 | 43.9 | |
| 1.41 | -23.00 | 0.96 | -23.00 | 15.45 | 260.75 | 43.56 | 285.29 | 0.6909 | -903.2 | 999999 | |
| 22.06 | -23.00 | 15.11 | -23.00 | 16.16 | 260.81 | 43.62 | 286.29 | 0.6927 | -893.3 | 999999 | |
| 0.00 | 2.65 | 0.00 | 1.81 | 16.97 | 260.65 | 43.46 | 287.49 | 0.6921 | -788.0 | -697.7 | |
| 1.94 | 8.56 | 1.32 | 5.84 | 17.48 | 260.41 | 43.22 | 288.27 | 0.6902 | -635.0 | -389.8 | |
| 0.00 | 9.09 | 0.00 | 6.15 | 16.93 | 259.99 | 42.80 | 287.56 | 0.6841 | -263.0 | -291.8 | |
| 10.85 | -23.00 | 7.25 | -23.00 | 14.92 | 259.33 | 42.15 | 284.74 | 0.6728 | 784.4 | 999999 | |
| 3.62 | -23.00 | 2.40 | -23.00 | 14.02 | 259.12 | 41.93 | 283.43 | 0.6689 | 771.8 | 999999 | |
| 4.85 | -23.00 | 3.24 | -23.00 | 15.56 | 259.37 | 42.18 | 285.68 | 0.6742 | 443.0 | 999999 | |
| 5.56 | -23.00 | 3.73 | -23.00 | 16.05 | 259.49 | 42.30 | 286.37 | 0.6765 | -115.3 | 999999 | |
| 1.41 | -23.00 | 0.94 | -23.00 | 15.13 | 259.09 | 41.90 | 285.08 | 0.6700 | 862.3 | 999999 | |
| 5.21 | -23.00 | 3.47 | -23.00 | 16.08 | 259.08 | 41.89 | 286.49 | 0.6714 | 505.6 | 999999 | |
| 0.00 | 0.79 | 0.00 | 0.54 | 19.38 | 259.96 | 42.78 | 291.10 | 0.6890 | 436.0 | 362.7 | |
| 32.91 | -23.00 | 21.78 | -23.00 | 15.56 | 258.69 | 41.51 | 285.79 | 0.6658 | 923.0 | 999999 | |
| 1.41 | 42.17 | 0.93 | 27.70 | 14.51 | 258.40 | 41.21 | 284.26 | 0.6605 | 836.0 | 586.5 | |
| 2.38 | -37.00 | 1.56 | -37.00 | 14.37 | 258.16 | 40.98 | 284.10 | 0.6573 | 1106.6 | 999999 | |
| 3.44 | -23.00 | 2.28 | -23.00 | 16.48 | 258.68 | 41.49 | 287.17 | 0.6672 | 446.8 | 999999 | |
| 2.82 | -23.00 | 1.86 | -23.00 | 15.24 | 258.37 | 41.18 | 285.38 | 0.6612 | 860.8 | 999999 | |
| 0.00 | 2.91 | 0.00 | 1.96 | 18.62 | 259.29 | 42.10 | 290.18 | 0.6793 | 320.0 | 267.2 | |
| 7.76 | -23.00 | 5.13 | -23.00 | 16.15 | 258.55 | 41.36 | 286.71 | 0.6650 | 797.0 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.77 | 18.33 | 259.03 | 41.85 | 289.82 | 0.6755 | 541.0 | 370.8 | |
| 0.00 | 1.68 | 0.00 | 1.09 | 12.31 | 257.57 | 40.39 | 281.02 | 0.6473 | 484.0 | 341.8 | |
| 0.26 | -23.00 | 0.18 | -23.00 | 16.92 | 258.59 | 41.40 | 287.84 | 0.6670 | 545.7 | 999999 | |
| 1.32 | -23.00 | 0.87 | -23.00 | 16.62 | 258.42 | 41.24 | 287.44 | 0.6643 | 662.1 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.77 | 19.04 | 259.12 | 41.93 | 290.83 | 0.6782 | 543.0 | 422.8 | |
| 0.00 | 9.97 | 0.00 | 6.65 | 17.98 | 258.76 | 41.57 | 289.38 | 0.6714 | 502.0 | 338.1 | |
| 1.94 | -23.00 | 1.28 | -23.00 | 16.08 | 258.20 | 41.01 | 286.68 | 0.6605 | 878.1 | 999999 | |
| 0.00 | 0.62 | 0.00 | 0.41 | 18.47 | 258.86 | 41.67 | 290.07 | 0.6737 | 347.0 | 319.6 | |
| 0.00 | 3.88 | 0.00 | 2.58 | 17.66 | 258.54 | 41.35 | 288.95 | 0.6680 | 458.0 | 378.1 | |
| 1.15 | -23.00 | 0.76 | -23.00 | 16.61 | 258.21 | 41.02 | 287.46 | 0.6617 | 836.8 | 999999 | |
| 16.59 | -23.00 | 10.95 | -23.00 | 16.94 | 258.26 | 41.07 | 287.95 | 0.6629 | 763.7 | 999999 | |
| 0.00 | 1.76 | 0.00 | 1.15 | 15.53 | 257.86 | 40.67 | 285.91 | 0.6552 | 832.0 | 659.2 | |
| 3.88 | -23.00 | 2.55 | -23.00 | 16.13 | 257.96 | 40.78 | 286.80 | 0.6577 | 999.7 | 999999 | |
| 0.26 | -23.00 | 0.17 | -23.00 | 16.66 | 257.89 | 40.70 | 287.62 | 0.6578 | 917.0 | 999999 | |
| 11.56 | -23.00 | 7.57 | -23.00 | 16.45 | 257.80 | 40.61 | 287.32 | 0.6562 | 1087.0 | 999999 | |
| 0.00 | 1.76 | 0.00 | 1.15 | 15.82 | 257.60 | 40.41 | 286.41 | 0.6525 | 789.0 | 655.8 | |
| 0.97 | -23.00 | 0.64 | -23.00 | 16.98 | 257.81 | 40.62 | 288.11 | 0.6574 | 874.1 | 999999 | |
| 3.44 | 27.88 | 2.26 | 18.34 | 17.31 | 257.82 | 40.63 | 288.62 | 0.6583 | 867.5 | 327.3 | |
| 1.15 | -23.00 | 0.75 | -23.00 | 16.20 | 257.48 | 40.30 | 287.01 | 0.6518 | 1031.4 | 999999 | |
| 4.76 | -60.00 | 3.13 | -60.00 | 17.60 | 257.77 | 40.58 | 289.05 | 0.6583 | 807.6 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.63 | 15.63 | 257.26 | 40.08 | 286.19 | 0.6479 | 862.0 | 738.5 | |
| 0.00 | 0.97 | 0.00 | 0.63 | 17.81 | 257.41 | 40.22 | 289.46 | 0.6544 | 690.0 | 600.6 | |
| 0.71 | 3.62 | 0.46 | 2.34 | 16.46 | 256.93 | 39.75 | 287.53 | 0.6453 | 848.6 | 758.7 | |
| 0.00 | 3.88 | 0.00 | 2.52 | 16.91 | 257.05 | 39.86 | 288.19 | 0.6478 | 734.0 | 723.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
