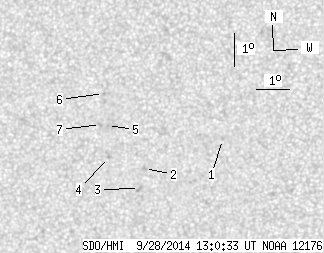

SDO HMI 2014-09-28 13:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 11.20 | 0.00 | 5.63 | 7.21 | 207.33 | -9.86 | 87.33 | 0.1716 | 359.1 | 336.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-28 13:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.79 | 0.00 | 0.40 | 7.55 | 210.19 | -7.00 | 83.60 | 0.1221 | -849.0 | -676.1 | |
| 0.00 | 2.12 | 0.00 | 1.06 | 6.64 | 207.82 | -9.37 | 90.56 | 0.1625 | -826.0 | -665.1 | |
| 0.00 | 2.73 | 0.00 | 1.37 | 6.04 | 207.67 | -9.51 | 94.20 | 0.1655 | 943.0 | 818.8 | |
| 0.00 | 1.41 | 0.00 | 0.71 | 6.95 | 206.71 | -10.48 | 88.67 | 0.1814 | 825.0 | 626.1 | |
| 0.00 | 0.97 | 0.00 | 0.49 | 7.91 | 206.65 | -10.53 | 83.39 | 0.1831 | 925.0 | 702.1 | |
| 0.00 | 1.59 | 0.00 | 0.80 | 8.87 | 206.50 | -10.68 | 78.36 | 0.1878 | 701.0 | 516.4 | |
| 0.00 | 1.59 | 0.00 | 0.80 | 7.94 | 206.44 | -10.75 | 83.36 | 0.1868 | 795.0 | 679.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
