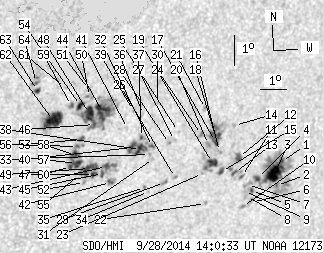

SDO HMI 2014-09-28 14:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 132.92 | 412.69 | 85.63 | 268.58 | -16.51 | 249.88 | 33.24 | 234.19 | 0.6486 | -133.1 | 0.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-28 14:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.76 | 84.42 | 1.23 | 58.70 | -17.25 | 254.52 | 37.88 | 236.78 | 0.7032 | 670.8 | 308.1 | |
| 0.53 | -1.00 | 0.37 | -1.00 | -18.03 | 254.51 | 37.87 | 235.81 | 0.7080 | 429.0 | 999999 | |
| 17.47 | -1.00 | 12.14 | -1.00 | -17.62 | 254.33 | 37.69 | 236.19 | 0.7036 | 936.8 | 999999 | |
| 2.38 | -1.00 | 1.64 | -1.00 | -17.74 | 253.68 | 37.04 | 235.60 | 0.6977 | 829.4 | 999999 | |
| 1.15 | 2.21 | 0.79 | 1.52 | -18.12 | 253.53 | 36.90 | 235.03 | 0.6987 | 715.8 | 572.9 | |
| 0.00 | 4.15 | 0.00 | 2.87 | -18.52 | 253.59 | 36.96 | 234.58 | 0.7019 | 498.0 | 404.2 | |
| 0.00 | 3.53 | 0.00 | 2.42 | -17.91 | 253.32 | 36.69 | 235.14 | 0.6952 | 789.0 | 706.8 | |
| 0.00 | 1.94 | 0.00 | 1.34 | -18.31 | 253.38 | 36.75 | 234.69 | 0.6983 | 279.0 | 293.7 | |
| 0.00 | 1.06 | 0.00 | 0.73 | -18.13 | 253.26 | 36.62 | 234.82 | 0.6960 | 349.0 | 394.1 | |
| 0.00 | 2.12 | 0.00 | 1.46 | -18.63 | 253.30 | 36.67 | 234.24 | 0.6997 | 542.0 | 445.0 | |
| 0.71 | 15.17 | 0.48 | 10.29 | -17.62 | 253.02 | 36.38 | 235.28 | 0.6902 | 677.9 | 701.3 | |
| 2.56 | -11.00 | 1.73 | -11.00 | -16.98 | 252.76 | 36.12 | 235.89 | 0.6832 | 871.5 | 999999 | |
| 1.23 | -11.00 | 0.84 | -11.00 | -17.47 | 252.71 | 36.07 | 235.25 | 0.6859 | 761.0 | 999999 | |
| 0.00 | 1.50 | 0.00 | 1.00 | -15.91 | 252.37 | 35.74 | 236.98 | 0.6722 | 553.0 | 447.2 | |
| 1.94 | 21.61 | 1.31 | 14.45 | -17.40 | 252.19 | 35.55 | 234.96 | 0.6800 | 745.0 | 623.4 | |
| 0.00 | 1.94 | 0.00 | 1.30 | -16.73 | 251.96 | 35.33 | 235.64 | 0.6732 | 803.0 | 698.8 | |
| 2.56 | 26.73 | 1.70 | 17.70 | -16.38 | 251.74 | 35.10 | 235.91 | 0.6685 | 905.2 | 528.5 | |
| 6.00 | -17.00 | 3.98 | -17.00 | -16.19 | 251.70 | 35.06 | 236.14 | 0.6667 | 866.4 | 999999 | |
| 5.29 | -15.00 | 3.54 | -15.00 | -17.07 | 251.77 | 35.13 | 235.06 | 0.6734 | 916.0 | 999999 | |
| 0.00 | 3.09 | 0.00 | 2.04 | -16.46 | 251.49 | 34.85 | 235.62 | 0.6663 | 400.0 | 344.7 | |
| 0.00 | 2.21 | 0.00 | 1.44 | -15.27 | 251.14 | 34.50 | 236.91 | 0.6545 | 866.0 | 706.2 | |
| 0.00 | 1.50 | 0.00 | 1.01 | -18.42 | 251.80 | 35.17 | 233.39 | 0.6830 | 709.0 | 531.1 | |
| 0.00 | 0.88 | 0.00 | 0.59 | -17.41 | 251.46 | 34.82 | 234.40 | 0.6725 | 794.0 | 665.4 | |
| 0.00 | 2.56 | 0.00 | 1.68 | -16.11 | 251.15 | 34.51 | 235.82 | 0.6603 | 837.0 | 651.2 | |
| 0.00 | 0.53 | 0.00 | 0.34 | -15.95 | 250.25 | 33.61 | 235.33 | 0.6494 | -361.0 | -292.0 | |
| 0.00 | 1.68 | 0.00 | 1.10 | -17.47 | 250.44 | 33.80 | 233.53 | 0.6622 | -440.0 | -258.7 | |
| 0.00 | 1.50 | 0.00 | 0.98 | -16.24 | 250.15 | 33.52 | 234.89 | 0.6504 | -326.0 | -302.8 | |
| 0.00 | 1.41 | 0.00 | 0.92 | -16.32 | 249.98 | 33.34 | 234.64 | 0.6491 | -440.0 | -331.2 | |
| 0.00 | 2.38 | 0.00 | 1.56 | -17.60 | 250.05 | 33.41 | 233.05 | 0.6591 | -507.0 | -390.1 | |
| 0.00 | 0.71 | 0.00 | 0.45 | -14.98 | 249.29 | 32.65 | 235.87 | 0.6320 | 608.0 | 426.9 | |
| 0.00 | 1.06 | 0.00 | 0.69 | -16.78 | 249.47 | 32.83 | 233.64 | 0.6469 | 102.0 | 194.8 | |
| 0.62 | 23.91 | 0.40 | 15.34 | -16.38 | 249.36 | 32.72 | 234.06 | 0.6428 | -570.1 | -321.8 | |
| 0.00 | 1.06 | 0.00 | 0.68 | -16.63 | 249.29 | 32.66 | 233.68 | 0.6440 | -298.0 | -264.6 | |
| 0.00 | 0.71 | 0.00 | 0.46 | -17.86 | 249.50 | 32.86 | 232.28 | 0.6553 | -274.0 | -194.9 | |
| 0.00 | 0.97 | 0.00 | 0.63 | -17.72 | 249.32 | 32.68 | 232.31 | 0.6523 | -529.0 | -483.8 | |
| 0.00 | 0.71 | 0.00 | 0.45 | -15.31 | 248.83 | 32.19 | 235.05 | 0.6292 | -513.0 | -372.8 | |
| 0.79 | 2.82 | 0.51 | 1.81 | -16.05 | 248.89 | 32.25 | 234.10 | 0.6353 | -775.6 | -653.7 | |
| 6.00 | -32.00 | 3.85 | -32.00 | -16.45 | 248.92 | 32.28 | 233.62 | 0.6386 | -854.9 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.67 | -15.15 | 248.43 | 31.80 | 234.94 | 0.6236 | -303.0 | -335.9 | |
| 4.23 | -32.00 | 2.71 | -32.00 | -16.36 | 248.57 | 31.94 | 233.44 | 0.6342 | 581.1 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.56 | -15.72 | 248.31 | 31.67 | 234.06 | 0.6266 | 552.0 | 435.8 | |
| 0.97 | 5.20 | 0.62 | 3.34 | -17.46 | 248.00 | 31.37 | 231.51 | 0.6366 | -596.8 | -386.0 | |
| 2.29 | 15.88 | 1.46 | 10.12 | -16.92 | 247.75 | 31.12 | 232.00 | 0.6297 | -687.4 | -384.6 | |
| 14.47 | 76.83 | 9.03 | 47.87 | -15.11 | 247.30 | 30.66 | 234.02 | 0.6107 | -674.0 | -346.3 | |
| 1.32 | -43.00 | 0.84 | -43.00 | -17.14 | 247.65 | 31.01 | 231.61 | 0.6304 | -651.1 | 999999 | |
| 0.79 | -44.00 | 0.50 | -44.00 | -15.51 | 247.07 | 30.44 | 233.27 | 0.6113 | -583.7 | 999999 | |
| 2.12 | 43.93 | 1.34 | 27.64 | -17.16 | 247.32 | 30.68 | 231.31 | 0.6270 | -720.2 | -636.0 | |
| 9.26 | -44.00 | 5.76 | -44.00 | -15.14 | 246.83 | 30.20 | 233.56 | 0.6058 | -853.2 | 999999 | |
| 8.91 | -47.00 | 5.63 | -47.00 | -16.95 | 247.14 | 30.50 | 231.41 | 0.6234 | -786.1 | 999999 | |
| 0.00 | 3.70 | 0.00 | 2.29 | -14.59 | 246.75 | 30.11 | 234.24 | 0.6005 | -578.0 | -480.8 | |
| 0.00 | 0.88 | 0.00 | 0.54 | -14.36 | 246.71 | 30.08 | 234.53 | 0.5983 | -560.0 | -445.9 | |
| 0.00 | 1.85 | 0.00 | 1.17 | -17.40 | 247.03 | 30.40 | 230.74 | 0.6259 | -520.0 | -399.5 | |
| 1.32 | 3.18 | 0.83 | 1.98 | -15.97 | 246.68 | 30.04 | 232.29 | 0.6106 | -900.0 | -720.4 | |
| 3.44 | -44.00 | 2.12 | -44.00 | -14.86 | 246.46 | 29.83 | 233.61 | 0.5994 | -771.2 | 999999 | |
| 0.79 | -47.00 | 0.50 | -47.00 | -17.09 | 246.83 | 30.20 | 230.95 | 0.6213 | -676.8 | 999999 | |
| 0.53 | -47.00 | 0.33 | -47.00 | -16.19 | 246.57 | 29.93 | 231.89 | 0.6112 | -1073.8 | 999999 | |
| 5.29 | -47.00 | 3.32 | -47.00 | -16.75 | 246.63 | 29.99 | 231.21 | 0.6164 | -841.6 | 999999 | |
| 4.32 | -47.00 | 2.70 | -47.00 | -16.49 | 246.55 | 29.91 | 231.48 | 0.6133 | -963.7 | 999999 | |
| 0.00 | 2.82 | 0.00 | 1.74 | -14.84 | 246.14 | 29.50 | 233.34 | 0.5956 | -895.0 | -816.8 | |
| 1.68 | -47.00 | 1.05 | -47.00 | -16.84 | 246.43 | 29.79 | 230.91 | 0.6149 | -889.1 | 999999 | |
| 0.00 | 0.71 | 0.00 | 0.43 | -14.28 | 245.84 | 29.21 | 233.86 | 0.5878 | -540.0 | -414.5 | |
| 18.26 | 31.76 | 11.21 | 19.48 | -15.29 | 245.56 | 28.93 | 232.18 | 0.5928 | -931.4 | -642.4 | |
| 1.59 | 3.00 | 0.96 | 1.82 | -14.28 | 244.85 | 28.22 | 232.91 | 0.5766 | -787.2 | -619.9 | |
| 0.35 | 4.94 | 0.21 | 2.98 | -14.02 | 244.78 | 28.15 | 233.22 | 0.5736 | -895.8 | -752.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
