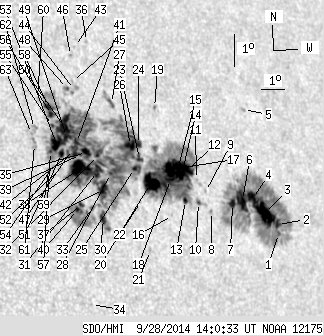

SDO HMI 2014-09-28 14:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 280.69 | 1208.76 | 196.13 | 846.89 | 15.20 | 261.61 | 44.98 | 284.83 | 0.7071 | -20.2 | -114.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-28 14:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.68 | 304.77 | 1.28 | 229.80 | 12.93 | 266.75 | 50.11 | 281.19 | 0.7646 | -606.1 | -266.8 | |
| 4.15 | -1.00 | 3.18 | -1.00 | 13.20 | 266.78 | 50.14 | 281.54 | 0.7650 | -530.5 | 999999 | |
| 28.14 | -1.00 | 21.35 | -1.00 | 13.59 | 266.26 | 49.62 | 282.08 | 0.7595 | -913.4 | 999999 | |
| 10.32 | -1.00 | 7.77 | -1.00 | 14.08 | 265.83 | 49.19 | 282.76 | 0.7551 | -867.8 | 999999 | |
| 0.00 | 1.76 | 0.00 | 1.34 | 16.78 | 266.28 | 49.64 | 286.28 | 0.7623 | -625.0 | -490.2 | |
| 16.05 | -1.00 | 11.97 | -1.00 | 14.07 | 265.35 | 48.71 | 282.77 | 0.7497 | -840.5 | 999999 | |
| 4.94 | -1.00 | 3.65 | -1.00 | 14.02 | 264.87 | 48.23 | 282.75 | 0.7442 | -985.7 | 999999 | |
| 0.00 | 1.68 | 0.00 | 1.21 | 13.86 | 263.85 | 47.22 | 282.62 | 0.7325 | -704.0 | -509.4 | |
| 0.00 | 1.06 | 0.00 | 0.77 | 14.48 | 263.75 | 47.11 | 283.47 | 0.7318 | 506.0 | 418.8 | |
| 1.06 | 4.59 | 0.76 | 3.30 | 14.18 | 263.35 | 46.71 | 283.10 | 0.7269 | -645.4 | -618.2 | |
| 0.00 | 0.97 | 0.00 | 0.70 | 14.87 | 263.45 | 46.81 | 284.04 | 0.7287 | -289.0 | -303.2 | |
| 8.91 | 836.24 | 6.39 | 571.02 | 15.21 | 263.14 | 46.50 | 284.54 | 0.7254 | -714.6 | -80.5 | |
| 2.38 | -12.00 | 1.70 | -12.00 | 14.29 | 262.79 | 46.15 | 283.30 | 0.7205 | 122.7 | 999999 | |
| 8.29 | -12.00 | 5.92 | -12.00 | 15.05 | 262.82 | 46.18 | 284.36 | 0.7216 | -1065.8 | 999999 | |
| 9.61 | -12.00 | 6.85 | -12.00 | 15.33 | 262.76 | 46.13 | 284.76 | 0.7213 | -992.0 | 999999 | |
| 0.00 | 0.79 | 0.00 | 0.56 | 13.89 | 262.10 | 45.47 | 282.81 | 0.7120 | -197.0 | -81.4 | |
| 15.79 | -12.00 | 11.18 | -12.00 | 15.27 | 262.39 | 45.75 | 284.72 | 0.7168 | -1241.3 | 999999 | |
| 5.65 | -12.00 | 3.99 | -12.00 | 14.97 | 262.30 | 45.67 | 284.31 | 0.7155 | -1286.5 | 999999 | |
| 0.00 | 1.68 | 0.00 | 1.19 | 17.19 | 262.25 | 45.61 | 287.41 | 0.7178 | -599.0 | -554.3 | |
| 19.49 | -12.00 | 13.57 | -12.00 | 14.92 | 261.40 | 44.77 | 284.36 | 0.7047 | 645.3 | 999999 | |
| 0.00 | 2.29 | 0.00 | 1.58 | 12.92 | 260.91 | 44.27 | 281.55 | 0.6968 | 613.0 | 428.3 | |
| 0.00 | 0.26 | 0.00 | 0.18 | 14.42 | 260.84 | 44.20 | 283.71 | 0.6973 | 568.0 | 500.7 | |
| 3.26 | -12.00 | 2.26 | -12.00 | 15.71 | 261.14 | 44.50 | 285.52 | 0.7026 | -940.8 | 999999 | |
| 3.35 | -12.00 | 2.33 | -12.00 | 16.14 | 261.21 | 44.58 | 286.11 | 0.7041 | -848.7 | 999999 | |
| 2.12 | -12.00 | 1.46 | -12.00 | 15.43 | 260.84 | 44.20 | 285.16 | 0.6986 | -1052.4 | 999999 | |
| 7.41 | -12.00 | 5.12 | -12.00 | 16.14 | 260.86 | 44.22 | 286.16 | 0.6999 | -1120.1 | 999999 | |
| 1.68 | 8.64 | 1.15 | 5.94 | 17.47 | 260.42 | 43.78 | 288.14 | 0.6969 | -699.9 | -385.8 | |
| 1.32 | -12.00 | 0.90 | -12.00 | 15.36 | 259.78 | 43.15 | 285.22 | 0.6857 | 203.7 | 999999 | |
| 12.35 | -12.00 | 8.32 | -12.00 | 14.91 | 259.37 | 42.73 | 284.62 | 0.6800 | 762.7 | 999999 | |
| 5.38 | 14.82 | 3.61 | 9.94 | 14.04 | 259.16 | 42.52 | 283.37 | 0.6763 | 745.1 | 491.3 | |
| 7.23 | -12.00 | 4.87 | -12.00 | 15.47 | 259.26 | 42.62 | 285.46 | 0.6794 | 628.9 | 999999 | |
| 1.23 | -12.00 | 0.83 | -12.00 | 15.95 | 259.38 | 42.75 | 286.14 | 0.6817 | 293.6 | 999999 | |
| 1.06 | -12.00 | 0.71 | -12.00 | 14.40 | 258.78 | 42.15 | 283.96 | 0.6720 | 814.3 | 999999 | |
| 0.00 | 0.71 | 0.00 | 0.46 | 11.50 | 258.14 | 41.50 | 279.68 | 0.6610 | 503.0 | 401.8 | |
| 6.00 | -12.00 | 4.02 | -12.00 | 16.07 | 258.95 | 42.31 | 286.41 | 0.6766 | 536.8 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.79 | 19.43 | 259.95 | 43.32 | 291.03 | 0.6954 | 546.0 | 413.0 | |
| 1.68 | -12.00 | 1.11 | -12.00 | 14.53 | 258.35 | 41.71 | 284.22 | 0.6668 | 843.2 | 999999 | |
| 25.23 | -12.00 | 16.82 | -12.00 | 15.61 | 258.57 | 41.94 | 285.80 | 0.6712 | 975.3 | 999999 | |
| 1.68 | -12.00 | 1.12 | -12.00 | 16.03 | 258.68 | 42.05 | 286.40 | 0.6733 | 632.3 | 999999 | |
| 1.76 | -12.00 | 1.17 | -12.00 | 14.39 | 258.15 | 41.52 | 284.04 | 0.6641 | 1131.4 | 999999 | |
| 3.26 | -12.00 | 2.18 | -12.00 | 16.41 | 258.61 | 41.98 | 286.97 | 0.6731 | 574.8 | 999999 | |
| 7.76 | -12.00 | 5.17 | -12.00 | 16.17 | 258.47 | 41.83 | 286.65 | 0.6709 | 827.7 | 999999 | |
| 0.00 | 0.71 | 0.00 | 0.48 | 19.32 | 259.39 | 42.75 | 291.01 | 0.6886 | 493.0 | 392.4 | |
| 0.00 | 3.97 | 0.00 | 2.68 | 18.01 | 258.98 | 42.35 | 289.24 | 0.6808 | -130.0 | 15.1 | |
| 0.00 | 1.06 | 0.00 | 0.71 | 18.26 | 258.97 | 42.34 | 289.60 | 0.6812 | 500.0 | 408.8 | |
| 0.00 | 1.15 | 0.00 | 0.78 | 19.06 | 259.13 | 42.50 | 290.71 | 0.6849 | 572.0 | 437.1 | |
| 1.76 | -12.00 | 1.17 | -12.00 | 16.07 | 258.19 | 41.55 | 286.55 | 0.6672 | 940.6 | 999999 | |
| 0.71 | 5.12 | 0.47 | 3.43 | 18.07 | 258.70 | 42.06 | 289.38 | 0.6775 | 575.4 | 441.4 | |
| 5.65 | -12.00 | 3.75 | -12.00 | 16.62 | 258.25 | 41.61 | 287.36 | 0.6690 | 796.3 | 999999 | |
| 16.94 | -12.00 | 11.26 | -12.00 | 16.93 | 258.25 | 41.61 | 287.81 | 0.6696 | 769.5 | 999999 | |
| 3.70 | -12.00 | 2.45 | -12.00 | 16.12 | 257.91 | 41.27 | 286.69 | 0.6638 | 967.2 | 999999 | |
| 0.00 | 2.03 | 0.00 | 1.34 | 15.68 | 257.75 | 41.12 | 286.04 | 0.6611 | 803.0 | 641.7 | |
| 11.73 | -12.00 | 7.74 | -12.00 | 16.44 | 257.78 | 41.15 | 287.19 | 0.6629 | 1076.5 | 999999 | |
| 0.00 | 1.50 | 0.00 | 0.98 | 15.79 | 257.49 | 40.85 | 286.27 | 0.6580 | 804.0 | 643.8 | |
| 1.15 | -12.00 | 0.76 | -12.00 | 17.00 | 257.76 | 41.13 | 288.02 | 0.6637 | 901.5 | 999999 | |
| 3.53 | -12.00 | 2.33 | -12.00 | 17.33 | 257.81 | 41.17 | 288.51 | 0.6651 | 876.4 | 999999 | |
| 0.71 | -12.00 | 0.46 | -12.00 | 16.22 | 257.47 | 40.84 | 286.92 | 0.6586 | 1012.0 | 999999 | |
| 4.59 | -12.00 | 3.03 | -12.00 | 17.58 | 257.76 | 41.12 | 288.90 | 0.6649 | 822.8 | 999999 | |
| 0.00 | 1.41 | 0.00 | 0.92 | 15.65 | 257.25 | 40.61 | 286.11 | 0.6547 | 879.0 | 730.5 | |
| 0.00 | 0.97 | 0.00 | 0.64 | 17.89 | 257.38 | 40.74 | 289.45 | 0.6610 | 503.0 | 436.1 | |
| 0.00 | 4.76 | 0.00 | 3.10 | 16.48 | 256.88 | 40.24 | 287.45 | 0.6517 | 814.0 | 776.6 | |
| 0.00 | 3.79 | 0.00 | 2.48 | 16.96 | 257.00 | 40.37 | 288.15 | 0.6542 | 746.0 | 713.6 | |
| 0.00 | 0.88 | 0.00 | 0.57 | 16.82 | 256.84 | 40.21 | 287.97 | 0.6519 | 865.0 | 778.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
