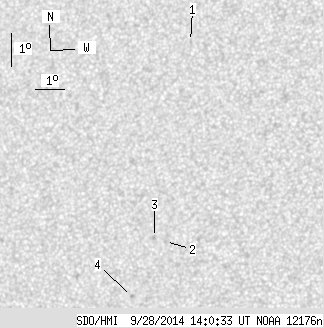

SDO HMI 2014-09-28 14:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.29 | 0.00 | 2.92 | 12.53 | 191.11 | -25.53 | 75.32 | 0.4390 | -660.5 | -542.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-28 14:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.15 | 0.00 | 0.64 | 17.65 | 191.57 | -25.06 | 63.82 | 0.4517 | -631.0 | -473.4 | |
| 0.00 | 1.06 | 0.00 | 0.58 | 11.56 | 191.45 | -25.18 | 77.35 | 0.4291 | -705.0 | -587.7 | |
| 0.00 | 1.85 | 0.00 | 1.02 | 11.66 | 191.07 | -25.57 | 77.24 | 0.4352 | -526.0 | -480.4 | |
| 0.00 | 1.23 | 0.00 | 0.68 | 9.85 | 190.45 | -26.19 | 81.52 | 0.4414 | -780.0 | -660.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
