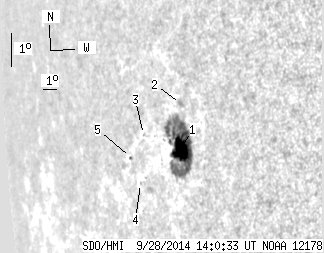

SDO HMI 2014-09-28 14:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.52 | 115.81 | 21.72 | 136.61 | -0.90 | 151.86 | -64.78 | 94.19 | 0.9088 | 478.9 | 176.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-28 14:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.52 | 109.73 | 21.72 | 129.11 | -0.93 | 151.93 | -64.71 | 94.23 | 0.9083 | 580.8 | 186.1 | |
| 0.00 | 3.97 | 0.00 | 4.63 | 0.44 | 151.95 | -64.69 | 92.74 | 0.9068 | 99.0 | 94.4 | |
| 0.00 | 0.26 | 0.00 | 0.35 | -0.81 | 149.16 | -67.48 | 93.69 | 0.9272 | -465.0 | -429.0 | |
| 0.00 | 0.79 | 0.00 | 1.06 | -2.34 | 148.81 | -67.83 | 95.26 | 0.9308 | 223.0 | 170.8 | |
| 0.00 | 1.06 | 0.00 | 1.46 | -1.63 | 148.05 | -68.58 | 94.40 | 0.9349 | -155.0 | -145.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
