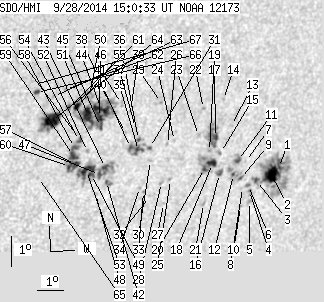

SDO HMI 2014-09-28 15:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 124.33 | 419.28 | 80.17 | 274.34 | -16.48 | 249.77 | 33.68 | 234.57 | 0.6531 | -196.1 | 9.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-28 15:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.20 | 87.67 | 1.55 | 61.53 | -17.42 | 254.57 | 38.48 | 236.97 | 0.7105 | 777.8 | 278.7 | |
| 15.26 | -1.00 | 10.69 | -1.00 | -17.63 | 254.34 | 38.25 | 236.55 | 0.7095 | 951.5 | 999999 | |
| 1.41 | -1.00 | 0.98 | -1.00 | -17.79 | 253.78 | 37.69 | 235.99 | 0.7046 | 845.0 | 999999 | |
| 0.35 | 2.47 | 0.25 | 1.72 | -18.10 | 253.57 | 37.49 | 235.46 | 0.7046 | 736.2 | 539.0 | |
| 0.00 | 2.29 | 0.00 | 1.60 | -18.47 | 253.67 | 37.58 | 235.08 | 0.7079 | 668.0 | 499.8 | |
| 0.62 | 2.20 | 0.43 | 1.53 | -17.93 | 253.49 | 37.41 | 235.62 | 0.7026 | 829.1 | 703.2 | |
| 0.00 | 0.62 | 0.00 | 0.42 | -17.12 | 253.18 | 37.09 | 236.41 | 0.6943 | 502.0 | 420.3 | |
| 0.00 | 1.32 | 0.00 | 0.92 | -17.98 | 253.27 | 37.18 | 235.40 | 0.7006 | 547.0 | 430.8 | |
| 0.71 | 12.52 | 0.49 | 8.59 | -17.67 | 253.11 | 37.02 | 235.67 | 0.6971 | 752.2 | 592.8 | |
| 0.00 | 0.97 | 0.00 | 0.68 | -18.61 | 253.34 | 37.26 | 234.68 | 0.7055 | 508.0 | 382.7 | |
| 2.03 | 5.38 | 1.39 | 3.67 | -17.06 | 252.85 | 36.76 | 236.25 | 0.6905 | 906.3 | 743.4 | |
| 0.88 | -9.00 | 0.60 | -9.00 | -17.52 | 252.80 | 36.71 | 235.64 | 0.6929 | 713.5 | 999999 | |
| 0.00 | 1.32 | 0.00 | 0.89 | -15.89 | 252.36 | 36.27 | 237.40 | 0.6778 | 562.0 | 449.3 | |
| 0.00 | 1.06 | 0.00 | 0.70 | -15.01 | 251.87 | 35.79 | 238.19 | 0.6669 | 596.0 | 488.1 | |
| 0.00 | 1.06 | 0.00 | 0.71 | -16.75 | 252.11 | 36.03 | 236.13 | 0.6807 | 765.0 | 582.9 | |
| 1.68 | 4.50 | 1.14 | 3.05 | -17.44 | 252.23 | 36.14 | 235.33 | 0.6865 | 743.5 | 599.9 | |
| 2.20 | 20.46 | 1.47 | 13.65 | -16.23 | 251.81 | 35.72 | 236.56 | 0.6741 | 810.0 | 717.4 | |
| 4.67 | 21.43 | 3.15 | 14.40 | -17.09 | 251.88 | 35.79 | 235.52 | 0.6805 | 938.5 | 588.7 | |
| 0.00 | 1.23 | 0.00 | 0.83 | -16.68 | 251.67 | 35.59 | 235.89 | 0.6756 | 809.0 | 732.3 | |
| 1.59 | -18.00 | 1.07 | -18.00 | -17.23 | 251.60 | 35.51 | 235.14 | 0.6785 | 884.8 | 999999 | |
| 0.00 | 1.59 | 0.00 | 1.08 | -18.40 | 251.83 | 35.74 | 233.86 | 0.6887 | 527.0 | 549.6 | |
| 0.00 | 1.06 | 0.00 | 0.70 | -15.25 | 251.15 | 35.07 | 237.36 | 0.6605 | 810.0 | 677.0 | |
| 0.00 | 2.12 | 0.00 | 1.40 | -16.12 | 251.13 | 35.05 | 236.21 | 0.6661 | 666.0 | 544.5 | |
| 0.00 | 1.06 | 0.00 | 0.69 | -16.22 | 250.24 | 34.15 | 235.41 | 0.6571 | -502.0 | -310.0 | |
| 0.00 | 1.23 | 0.00 | 0.82 | -17.50 | 250.35 | 34.26 | 233.85 | 0.6673 | -522.0 | -340.4 | |
| 0.00 | 1.15 | 0.00 | 0.75 | -16.33 | 250.00 | 33.91 | 235.07 | 0.6553 | -491.0 | -266.0 | |
| 0.00 | 0.71 | 0.00 | 0.47 | -18.28 | 250.25 | 34.17 | 232.80 | 0.6718 | 607.0 | 552.9 | |
| 0.00 | 2.03 | 0.00 | 1.34 | -17.57 | 250.02 | 33.94 | 233.50 | 0.6644 | -526.0 | -393.2 | |
| 0.00 | 0.97 | 0.00 | 0.62 | -14.94 | 249.51 | 33.42 | 236.54 | 0.6403 | 628.0 | 509.0 | |
| 0.00 | 1.94 | 0.00 | 1.27 | -16.81 | 249.45 | 33.36 | 234.02 | 0.6529 | 202.0 | 80.0 | |
| 0.53 | 3.35 | 0.34 | 2.17 | -16.38 | 249.33 | 33.24 | 234.48 | 0.6484 | -607.7 | -592.2 | |
| 0.00 | 0.35 | 0.00 | 0.23 | -18.01 | 249.66 | 33.57 | 232.67 | 0.6637 | 277.0 | 177.2 | |
| 0.00 | 0.97 | 0.00 | 0.64 | -17.82 | 249.39 | 33.31 | 232.68 | 0.6596 | -485.0 | -410.1 | |
| 0.00 | 1.06 | 0.00 | 0.69 | -17.68 | 249.21 | 33.13 | 232.72 | 0.6567 | -506.0 | -473.8 | |
| 3.53 | 16.40 | 2.28 | 10.58 | -16.45 | 248.93 | 32.84 | 234.07 | 0.6447 | -870.2 | -221.5 | |
| 0.79 | -35.00 | 0.51 | -35.00 | -16.09 | 248.86 | 32.78 | 234.49 | 0.6413 | -730.1 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.68 | -15.69 | 248.68 | 32.59 | 234.87 | 0.6364 | -508.0 | -396.4 | |
| 1.23 | -35.00 | 0.79 | -35.00 | -16.33 | 248.61 | 32.52 | 233.96 | 0.6403 | 593.2 | 999999 | |
| 0.00 | 0.79 | 0.00 | 0.50 | -15.15 | 248.40 | 32.31 | 235.36 | 0.6294 | -356.0 | -335.7 | |
| 0.00 | 0.88 | 0.00 | 0.56 | -15.83 | 248.33 | 32.24 | 234.40 | 0.6336 | 295.0 | 285.5 | |
| 0.00 | 2.38 | 0.00 | 1.51 | -14.87 | 248.02 | 31.93 | 235.43 | 0.6231 | -391.0 | -318.9 | |
| 0.71 | 4.06 | 0.45 | 2.62 | -17.39 | 247.92 | 31.83 | 232.00 | 0.6410 | -546.1 | -445.5 | |
| 2.29 | 18.08 | 1.47 | 11.59 | -16.93 | 247.79 | 31.71 | 232.50 | 0.6361 | -680.9 | -326.7 | |
| 10.94 | 80.17 | 6.87 | 50.23 | -15.01 | 247.31 | 31.23 | 234.63 | 0.6163 | -688.0 | -325.3 | |
| 1.41 | -44.00 | 0.89 | -44.00 | -15.57 | 247.37 | 31.28 | 233.93 | 0.6211 | -263.2 | 999999 | |
| 5.64 | -44.00 | 3.55 | -44.00 | -15.27 | 247.28 | 31.19 | 234.26 | 0.6179 | -682.6 | 999999 | |
| 1.94 | -43.00 | 1.24 | -43.00 | -17.14 | 247.61 | 31.53 | 232.06 | 0.6358 | -660.0 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.68 | -17.77 | 247.58 | 31.50 | 231.24 | 0.6404 | -435.0 | -379.2 | |
| 2.12 | 52.57 | 1.35 | 33.26 | -17.13 | 247.31 | 31.23 | 231.83 | 0.6325 | -766.0 | -552.3 | |
| 0.00 | 5.91 | 0.00 | 3.67 | -14.53 | 246.80 | 30.71 | 234.86 | 0.6069 | -530.0 | -507.7 | |
| 11.29 | -44.00 | 7.06 | -44.00 | -15.18 | 246.87 | 30.78 | 234.02 | 0.6125 | -837.2 | 999999 | |
| 0.00 | 1.59 | 0.00 | 1.00 | -16.36 | 247.03 | 30.94 | 232.58 | 0.6234 | -644.0 | -430.0 | |
| 9.08 | -49.00 | 5.78 | -49.00 | -16.98 | 247.10 | 31.02 | 231.83 | 0.6291 | -807.0 | 999999 | |
| 1.50 | -49.00 | 0.94 | -49.00 | -15.98 | 246.67 | 30.58 | 232.77 | 0.6166 | -830.5 | 999999 | |
| 3.26 | -44.00 | 2.03 | -44.00 | -14.86 | 246.42 | 30.33 | 234.07 | 0.6051 | -789.9 | 999999 | |
| 0.00 | 2.12 | 0.00 | 1.33 | -15.81 | 246.57 | 30.48 | 232.91 | 0.6141 | -553.0 | -547.1 | |
| 4.06 | -49.00 | 2.56 | -49.00 | -16.76 | 246.66 | 30.57 | 231.73 | 0.6226 | -838.7 | 999999 | |
| 1.59 | -49.00 | 1.00 | -49.00 | -16.19 | 246.53 | 30.44 | 232.35 | 0.6167 | -1068.7 | 999999 | |
| 4.67 | -49.00 | 2.94 | -49.00 | -16.45 | 246.53 | 30.45 | 232.02 | 0.6189 | -949.3 | 999999 | |
| 2.73 | -49.00 | 1.72 | -49.00 | -16.81 | 246.45 | 30.36 | 231.47 | 0.6208 | -890.1 | 999999 | |
| 1.23 | 2.29 | 0.76 | 1.42 | -14.87 | 246.09 | 30.01 | 233.76 | 0.6016 | -886.6 | -786.3 | |
| 0.00 | 0.62 | 0.00 | 0.38 | -14.28 | 245.90 | 29.81 | 234.41 | 0.5947 | -688.0 | -598.0 | |
| 0.00 | 1.23 | 0.00 | 0.76 | -14.48 | 245.50 | 29.41 | 233.76 | 0.5918 | -640.0 | -510.6 | |
| 17.37 | 30.96 | 10.72 | 19.09 | -15.26 | 245.54 | 29.46 | 232.73 | 0.5985 | -947.9 | -641.6 | |
| 0.00 | 0.97 | 0.00 | 0.61 | -17.10 | 245.38 | 29.29 | 230.10 | 0.6118 | -669.0 | -551.6 | |
| 1.50 | 2.82 | 0.91 | 1.72 | -14.31 | 244.87 | 28.78 | 233.41 | 0.5833 | -795.6 | -593.2 | |
| 1.32 | 7.23 | 0.80 | 4.39 | -14.05 | 244.76 | 28.68 | 233.68 | 0.5800 | -963.8 | -690.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
