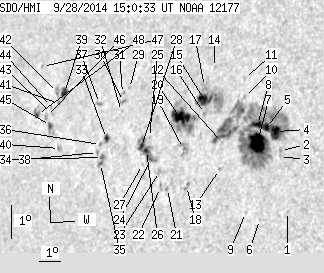

SDO HMI 2014-09-28 15:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 83.44 | 426.86 | 60.89 | 311.46 | 12.20 | 168.68 | -47.40 | 79.63 | 0.7327 | -28.0 | 35.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-28 15:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.79 | 0.00 | 0.54 | 10.07 | 172.57 | -43.51 | 82.54 | 0.6860 | -688.0 | -591.0 | |
| 0.00 | 1.15 | 0.00 | 0.79 | 11.87 | 171.94 | -44.14 | 79.95 | 0.6945 | -522.0 | -507.4 | |
| 0.00 | 0.44 | 0.00 | 0.30 | 11.68 | 171.94 | -44.15 | 80.22 | 0.6945 | -497.0 | -413.8 | |
| 9.79 | 237.78 | 6.76 | 166.67 | 12.42 | 171.61 | -44.47 | 79.18 | 0.6989 | -956.6 | -207.7 | |
| 4.85 | -4.00 | 3.37 | -4.00 | 12.51 | 171.20 | -44.88 | 79.09 | 0.7039 | -833.6 | 999999 | |
| 0.00 | 0.26 | 0.00 | 0.18 | 9.73 | 171.44 | -44.65 | 83.04 | 0.7001 | -511.0 | -458.3 | |
| 22.93 | -4.00 | 16.01 | -4.00 | 12.03 | 170.91 | -45.17 | 79.79 | 0.7072 | -900.8 | 999999 | |
| 5.29 | -4.00 | 3.71 | -4.00 | 12.57 | 170.80 | -45.29 | 79.03 | 0.7089 | -626.2 | 999999 | |
| 0.00 | 0.79 | 0.00 | 0.55 | 9.89 | 170.80 | -45.28 | 82.82 | 0.7079 | -403.0 | -329.8 | |
| 0.00 | 1.50 | 0.00 | 1.06 | 13.33 | 170.04 | -46.04 | 78.02 | 0.7184 | -343.0 | -276.8 | |
| 0.00 | 1.32 | 0.00 | 0.94 | 13.89 | 169.90 | -46.19 | 77.25 | 0.7205 | -368.0 | -286.3 | |
| 0.00 | 0.71 | 0.00 | 0.51 | 11.90 | 169.39 | -46.70 | 80.04 | 0.7253 | -228.0 | -212.8 | |
| 0.00 | 1.23 | 0.00 | 0.88 | 11.08 | 169.43 | -46.66 | 81.17 | 0.7246 | -556.0 | -470.6 | |
| 0.00 | 0.44 | 0.00 | 0.32 | 14.11 | 168.48 | -47.61 | 77.08 | 0.7372 | 546.0 | 511.2 | |
| 9.61 | 32.54 | 7.04 | 23.69 | 13.12 | 168.28 | -47.81 | 78.44 | 0.7388 | 807.1 | 587.2 | |
| 0.00 | 1.85 | 0.00 | 1.35 | 12.70 | 168.38 | -47.70 | 79.00 | 0.7374 | 641.0 | 600.7 | |
| 0.00 | 2.82 | 0.00 | 2.07 | 13.50 | 168.18 | -47.91 | 77.92 | 0.7402 | 119.0 | 111.4 | |
| 0.00 | 2.73 | 0.00 | 2.01 | 10.45 | 168.06 | -48.02 | 82.06 | 0.7405 | 581.0 | 560.3 | |
| 0.00 | 9.00 | 0.00 | 6.65 | 11.57 | 167.68 | -48.40 | 80.56 | 0.7450 | -321.0 | -150.2 | |
| 16.76 | 47.80 | 12.48 | 35.56 | 12.48 | 167.32 | -48.76 | 79.34 | 0.7494 | 742.5 | 442.4 | |
| 0.00 | 1.41 | 0.00 | 1.05 | 10.32 | 167.21 | -48.87 | 82.25 | 0.7502 | 555.0 | 510.2 | |
| 0.00 | 2.65 | 0.00 | 1.99 | 10.32 | 166.88 | -49.20 | 82.24 | 0.7539 | 373.0 | 326.4 | |
| 0.00 | 2.20 | 0.00 | 1.66 | 10.79 | 166.74 | -49.35 | 81.62 | 0.7556 | 700.0 | 632.6 | |
| 0.71 | 23.20 | 0.54 | 17.74 | 11.11 | 166.24 | -49.85 | 81.20 | 0.7613 | 652.6 | 580.7 | |
| 0.00 | 0.88 | 0.00 | 0.67 | 11.76 | 166.03 | -50.05 | 80.35 | 0.7636 | 447.0 | 434.6 | |
| 1.68 | -24.00 | 1.28 | -24.00 | 11.36 | 165.99 | -50.10 | 80.87 | 0.7641 | 852.0 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.81 | 10.93 | 165.90 | -50.19 | 81.44 | 0.7650 | 561.0 | 453.7 | |
| 1.94 | -24.00 | 1.49 | -24.00 | 11.46 | 165.72 | -50.36 | 80.75 | 0.7670 | 716.0 | 999999 | |
| 0.00 | 0.79 | 0.00 | 0.62 | 13.13 | 164.69 | -51.40 | 78.60 | 0.7787 | 575.0 | 550.0 | |
| 0.00 | 2.56 | 0.00 | 2.02 | 12.72 | 164.51 | -51.58 | 79.14 | 0.7804 | 555.0 | 394.3 | |
| 0.00 | 1.68 | 0.00 | 1.33 | 12.95 | 164.39 | -51.70 | 78.84 | 0.7818 | 492.0 | 399.4 | |
| 0.00 | 0.62 | 0.00 | 0.49 | 12.41 | 164.49 | -51.59 | 79.53 | 0.7805 | 199.0 | 177.9 | |
| 2.03 | 3.62 | 1.62 | 2.88 | 11.54 | 163.98 | -52.11 | 80.66 | 0.7859 | -552.4 | -479.6 | |
| 0.79 | 5.91 | 0.63 | 4.72 | 10.96 | 163.93 | -52.16 | 81.40 | 0.7864 | -743.3 | -527.3 | |
| 0.79 | -34.00 | 0.63 | -34.00 | 10.77 | 163.87 | -52.21 | 81.64 | 0.7870 | -601.2 | 999999 | |
| 0.00 | 1.59 | 0.00 | 1.27 | 11.34 | 163.73 | -52.36 | 80.92 | 0.7885 | -513.0 | -410.5 | |
| 0.00 | 2.47 | 0.00 | 2.00 | 12.55 | 163.34 | -52.74 | 79.39 | 0.7927 | -720.0 | -577.5 | |
| 0.00 | 2.03 | 0.00 | 1.63 | 11.09 | 163.64 | -52.44 | 81.24 | 0.7894 | -595.0 | -445.0 | |
| 3.53 | 6.09 | 2.98 | 5.14 | 12.71 | 161.46 | -54.62 | 79.22 | 0.8118 | 741.8 | 628.4 | |
| 0.00 | 2.65 | 0.00 | 2.22 | 11.03 | 161.69 | -54.39 | 81.31 | 0.8095 | 622.0 | 485.1 | |
| 0.00 | 1.32 | 0.00 | 1.12 | 12.36 | 161.25 | -54.83 | 79.66 | 0.8139 | 661.0 | 561.1 | |
| 0.00 | 4.23 | 0.00 | 3.60 | 12.68 | 161.10 | -54.99 | 79.27 | 0.8155 | 563.0 | 438.5 | |
| 0.00 | 0.62 | 0.00 | 0.53 | 12.03 | 160.98 | -55.11 | 80.07 | 0.8166 | 625.0 | 597.1 | |
| 0.00 | 0.79 | 0.00 | 0.68 | 12.23 | 160.92 | -55.17 | 79.82 | 0.8172 | 451.0 | 409.3 | |
| 1.59 | 6.17 | 1.35 | 5.26 | 11.67 | 161.03 | -55.05 | 80.52 | 0.8161 | 703.8 | 543.8 | |
| 0.00 | 2.47 | 0.00 | 2.12 | 11.91 | 160.74 | -55.34 | 80.21 | 0.8189 | 528.0 | 426.1 | |
| 0.00 | 1.50 | 0.00 | 1.31 | 13.37 | 160.04 | -56.04 | 78.44 | 0.8258 | 420.0 | 378.1 | |
| 1.15 | 5.20 | 1.00 | 4.53 | 11.93 | 160.25 | -55.84 | 80.20 | 0.8238 | 561.9 | 367.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
