SDO HMI 2014-09-28 16:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 40.56 | 130.08 | 33.45 | 109.01 | -9.79 | 266.51 | 50.98 | 252.13 | 0.8043 | 300.5 | 69.3 | |
|
previous
or next observation for the same group /

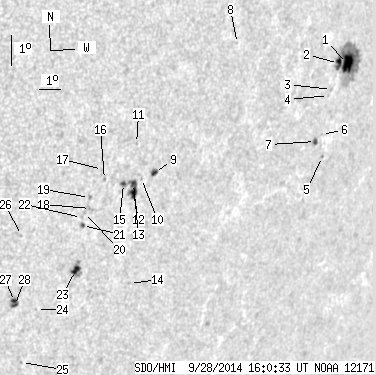

back to the solar disc SDO HMI 2014-09-28 16:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.55 | 70.20 | 13.21 | 63.78 | -8.24 | 270.59 | 55.06 | 255.51 | 0.8400 | 751.9 | 131.5 | |
| 4.59 | -1.00 | 4.11 | -1.00 | -8.19 | 270.10 | 54.57 | 255.43 | 0.8354 | 890.3 | 999999 | |
| 0.00 | 1.41 | 0.00 | 1.27 | -8.98 | 269.90 | 54.37 | 254.46 | 0.8354 | 410.0 | 364.5 | |
| 0.00 | 0.71 | 0.00 | 0.63 | -9.15 | 269.78 | 54.25 | 254.22 | 0.8348 | 500.0 | 434.4 | |
| 0.00 | 0.97 | 0.00 | 0.88 | -11.07 | 269.94 | 54.41 | 252.05 | 0.8410 | -533.0 | -457.1 | |
| 0.00 | 0.26 | 0.00 | 0.24 | -10.36 | 269.70 | 54.17 | 252.80 | 0.8370 | 479.0 | 469.3 | |
| 1.76 | 2.91 | 1.58 | 2.61 | -10.55 | 269.44 | 53.90 | 252.49 | 0.8351 | 558.8 | 443.0 | |
| 0.00 | 0.62 | 0.00 | 0.49 | -7.07 | 264.91 | 49.38 | 255.20 | 0.7813 | 563.0 | 459.0 | |
| 2.38 | 4.06 | 1.81 | 3.08 | -10.79 | 261.78 | 46.24 | 249.40 | 0.7602 | 558.0 | 392.0 | |
| 0.00 | 0.97 | 0.00 | 0.73 | -10.93 | 261.23 | 45.70 | 249.00 | 0.7550 | 387.0 | 375.4 | |
| 0.00 | 0.88 | 0.00 | 0.65 | -9.80 | 260.80 | 45.27 | 250.25 | 0.7461 | -225.0 | -290.8 | |
| 5.38 | 16.49 | 4.04 | 12.34 | -11.35 | 260.96 | 45.43 | 248.36 | 0.7537 | 754.8 | 645.6 | |
| 2.38 | -12.00 | 1.78 | -12.00 | -11.06 | 260.90 | 45.37 | 248.69 | 0.7520 | 765.4 | 999999 | |
| 0.00 | 1.32 | 0.00 | 1.02 | -14.27 | 261.47 | 45.93 | 244.99 | 0.7707 | -183.0 | -148.8 | |
| 1.32 | -12.00 | 0.98 | -12.00 | -11.02 | 260.46 | 44.93 | 248.55 | 0.7471 | 840.6 | 999999 | |
| 0.00 | 1.23 | 0.00 | 0.90 | -10.82 | 259.60 | 44.07 | 248.42 | 0.7370 | 716.0 | 561.9 | |
| 0.00 | 0.44 | 0.00 | 0.32 | -10.49 | 259.46 | 43.93 | 248.77 | 0.7341 | 522.0 | 559.6 | |
| 0.00 | 2.73 | 0.00 | 1.99 | -11.69 | 259.17 | 43.64 | 247.10 | 0.7359 | -524.0 | -328.0 | |
| 0.00 | 1.41 | 0.00 | 1.02 | -11.34 | 259.06 | 43.53 | 247.50 | 0.7332 | -400.0 | -368.1 | |
| 0.00 | 1.50 | 0.00 | 1.09 | -11.80 | 258.94 | 43.41 | 246.85 | 0.7338 | -357.0 | -353.8 | |
| 0.71 | 1.68 | 0.51 | 1.22 | -12.21 | 258.94 | 43.40 | 246.33 | 0.7356 | -572.0 | -493.1 | |
| 0.00 | 0.88 | 0.00 | 0.64 | -11.95 | 258.84 | 43.31 | 246.62 | 0.7334 | -568.0 | -510.7 | |
| 4.14 | 11.20 | 3.05 | 8.25 | -13.64 | 258.95 | 43.42 | 244.54 | 0.7421 | -807.5 | -480.0 | |
| 0.00 | 0.53 | 0.00 | 0.38 | -14.76 | 257.56 | 42.03 | 242.40 | 0.7328 | -478.0 | -387.2 | |
| 0.00 | 1.06 | 0.00 | 0.78 | -16.46 | 257.36 | 41.82 | 240.20 | 0.7393 | -648.0 | -505.6 | |
| 0.00 | 0.71 | 0.00 | 0.49 | -12.31 | 256.42 | 40.89 | 244.90 | 0.7085 | -552.0 | -506.0 | |
| 2.03 | 5.91 | 1.44 | 4.21 | -14.42 | 256.57 | 41.03 | 242.27 | 0.7206 | -810.3 | -715.0 | |
| 1.32 | -27.00 | 0.94 | -27.00 | -14.56 | 256.60 | 41.06 | 242.13 | 0.7216 | -792.5 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
