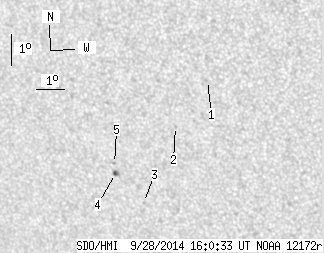

SDO HMI 2014-09-28 16:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.41 | 5.82 | 0.89 | 3.63 | -14.81 | 185.02 | -30.52 | 125.70 | 0.6065 | -134.9 | -159.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-28 16:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.79 | 0.00 | 0.47 | -12.23 | 187.81 | -27.72 | 124.57 | 0.5542 | 626.0 | 498.3 | |
| 0.00 | 0.88 | 0.00 | 0.54 | -13.78 | 186.49 | -29.04 | 125.59 | 0.5819 | 596.0 | 493.2 | |
| 0.00 | 0.62 | 0.00 | 0.39 | -16.32 | 184.95 | -30.59 | 127.68 | 0.6193 | -549.0 | -495.3 | |
| 1.41 | 2.47 | 0.89 | 1.56 | -15.44 | 184.08 | -31.46 | 125.74 | 0.6220 | -744.7 | -566.2 | |
| 0.00 | 1.06 | 0.00 | 0.67 | -15.11 | 184.10 | -31.44 | 125.32 | 0.6194 | -670.0 | -544.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
