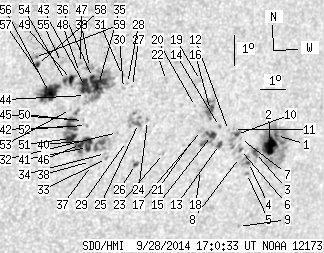

SDO HMI 2014-09-28 17:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 113.49 | 401.54 | 74.20 | 267.18 | -16.53 | 249.91 | 34.92 | 235.45 | 0.6666 | -233.5 | -11.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-28 17:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.59 | 92.85 | 1.13 | 66.39 | -17.32 | 254.66 | 39.67 | 237.86 | 0.7221 | 763.6 | 228.8 | |
| 15.34 | -1.00 | 10.95 | -1.00 | -17.63 | 254.49 | 39.51 | 237.37 | 0.7222 | 944.1 | 999999 | |
| 2.65 | -1.00 | 1.88 | -1.00 | -17.81 | 253.93 | 38.95 | 236.79 | 0.7176 | 774.0 | 999999 | |
| 0.97 | 7.67 | 0.69 | 5.42 | -18.13 | 253.73 | 38.74 | 236.27 | 0.7174 | 660.1 | 613.9 | |
| 0.00 | 1.85 | 0.00 | 1.32 | -18.49 | 253.74 | 38.76 | 235.84 | 0.7198 | 604.0 | 503.6 | |
| 0.97 | 6.53 | 0.68 | 4.57 | -17.67 | 253.28 | 38.30 | 236.55 | 0.7101 | 730.1 | 504.5 | |
| 0.00 | 1.23 | 0.00 | 0.86 | -17.30 | 253.19 | 38.21 | 236.94 | 0.7070 | 633.0 | 585.7 | |
| 0.00 | 1.41 | 0.00 | 0.99 | -17.93 | 253.31 | 38.33 | 236.24 | 0.7120 | 282.0 | 276.9 | |
| 0.00 | 1.15 | 0.00 | 0.83 | -20.26 | 253.92 | 38.93 | 233.85 | 0.7324 | 509.0 | 381.2 | |
| 1.23 | 11.37 | 0.86 | 7.91 | -17.15 | 253.00 | 38.01 | 236.99 | 0.7041 | 949.1 | 739.8 | |
| 0.00 | 1.68 | 0.00 | 1.16 | -16.98 | 252.83 | 37.85 | 237.10 | 0.7013 | 758.0 | 548.3 | |
| 0.00 | 0.79 | 0.00 | 0.55 | -16.99 | 252.64 | 37.66 | 236.94 | 0.6994 | 616.0 | 551.8 | |
| 2.03 | 20.63 | 1.40 | 14.16 | -17.43 | 252.39 | 37.40 | 236.23 | 0.6995 | 738.8 | 718.9 | |
| 0.00 | 1.50 | 0.00 | 1.03 | -16.83 | 252.24 | 37.26 | 236.88 | 0.6943 | 806.0 | 718.2 | |
| 3.97 | -13.00 | 2.72 | -13.00 | -17.11 | 251.99 | 37.01 | 236.36 | 0.6934 | 962.3 | 999999 | |
| 3.97 | 14.90 | 2.69 | 10.10 | -16.28 | 251.77 | 36.78 | 237.25 | 0.6857 | 863.2 | 723.4 | |
| 0.00 | 2.03 | 0.00 | 1.38 | -16.91 | 251.55 | 36.57 | 236.30 | 0.6875 | 316.0 | 400.5 | |
| 0.00 | 0.97 | 0.00 | 0.67 | -18.24 | 251.83 | 36.85 | 234.84 | 0.6990 | 768.0 | 682.0 | |
| 0.00 | 0.88 | 0.00 | 0.59 | -15.26 | 251.16 | 36.18 | 238.14 | 0.6728 | 823.0 | 703.8 | |
| 0.00 | 0.88 | 0.00 | 0.59 | -16.10 | 251.14 | 36.16 | 237.04 | 0.6779 | 692.0 | 521.0 | |
| 0.00 | 0.88 | 0.00 | 0.60 | -17.15 | 251.29 | 36.31 | 235.81 | 0.6864 | 477.0 | 428.9 | |
| 0.00 | 2.29 | 0.00 | 1.50 | -15.16 | 249.84 | 34.86 | 237.32 | 0.6577 | 643.0 | 442.3 | |
| 0.00 | 1.06 | 0.00 | 0.71 | -17.56 | 250.22 | 35.24 | 234.51 | 0.6779 | -454.0 | -365.0 | |
| 0.00 | 1.76 | 0.00 | 1.16 | -16.42 | 249.37 | 34.38 | 235.32 | 0.6610 | -558.0 | -436.8 | |
| 0.97 | 12.79 | 0.64 | 8.37 | -16.50 | 249.04 | 34.06 | 234.97 | 0.6580 | -717.0 | -459.4 | |
| 1.23 | 3.62 | 0.82 | 2.40 | -17.85 | 249.21 | 34.22 | 233.38 | 0.6694 | -617.2 | -508.8 | |
| 0.00 | 0.79 | 0.00 | 0.51 | -15.27 | 248.58 | 33.59 | 236.23 | 0.6444 | -436.0 | -334.3 | |
| 0.00 | 1.06 | 0.00 | 0.68 | -15.16 | 248.37 | 33.39 | 236.21 | 0.6414 | -516.0 | -353.7 | |
| 0.00 | 0.79 | 0.00 | 0.52 | -17.06 | 248.70 | 33.71 | 233.98 | 0.6584 | -347.0 | -244.4 | |
| 0.00 | 1.23 | 0.00 | 0.79 | -15.31 | 248.25 | 33.27 | 235.91 | 0.6411 | -485.0 | -425.8 | |
| 0.00 | 1.23 | 0.00 | 0.79 | -14.88 | 248.14 | 33.15 | 236.40 | 0.6369 | -476.0 | -386.1 | |
| 0.00 | 0.71 | 0.00 | 0.46 | -16.74 | 248.29 | 33.31 | 234.07 | 0.6518 | 674.0 | 594.6 | |
| 0.00 | 0.97 | 0.00 | 0.63 | -17.57 | 248.05 | 33.06 | 232.80 | 0.6553 | -463.0 | -365.3 | |
| 0.00 | 1.59 | 0.00 | 1.04 | -17.40 | 247.98 | 32.99 | 232.96 | 0.6533 | -448.0 | -310.8 | |
| 15.08 | 82.01 | 9.59 | 51.99 | -15.11 | 247.29 | 32.30 | 235.40 | 0.6290 | -704.6 | -288.1 | |
| 2.20 | -35.00 | 1.39 | -35.00 | -14.87 | 247.03 | 32.04 | 235.52 | 0.6244 | -817.6 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.63 | -17.77 | 247.52 | 32.54 | 232.13 | 0.6512 | -407.0 | -263.3 | |
| 0.00 | 1.06 | 0.00 | 0.69 | -17.63 | 247.46 | 32.48 | 232.24 | 0.6495 | -411.0 | -342.5 | |
| 0.00 | 5.11 | 0.00 | 3.22 | -14.54 | 246.86 | 31.88 | 235.83 | 0.6201 | -616.0 | -549.1 | |
| 4.06 | 69.48 | 2.61 | 44.62 | -16.93 | 247.25 | 32.26 | 232.97 | 0.6420 | -839.5 | -568.5 | |
| 3.17 | -40.00 | 2.05 | -40.00 | -17.16 | 247.25 | 32.27 | 232.68 | 0.6438 | -776.6 | 999999 | |
| 0.00 | 1.32 | 0.00 | 0.85 | -16.43 | 247.08 | 32.09 | 233.48 | 0.6364 | -442.0 | -328.6 | |
| 10.85 | -35.00 | 6.86 | -35.00 | -15.15 | 246.81 | 31.83 | 234.97 | 0.6240 | -854.8 | 999999 | |
| 0.00 | 1.85 | 0.00 | 1.17 | -15.44 | 246.86 | 31.88 | 234.61 | 0.6267 | -410.0 | -442.9 | |
| 0.00 | 1.41 | 0.00 | 0.90 | -16.25 | 246.93 | 31.95 | 233.58 | 0.6336 | -443.0 | -355.9 | |
| 5.11 | -40.00 | 3.29 | -40.00 | -17.04 | 246.97 | 31.99 | 232.59 | 0.6399 | -820.0 | 999999 | |
| 0.00 | 1.68 | 0.00 | 1.05 | -14.39 | 246.51 | 31.52 | 235.75 | 0.6150 | -459.0 | -364.7 | |
| 0.00 | 1.06 | 0.00 | 0.66 | -14.68 | 246.52 | 31.53 | 235.36 | 0.6172 | -576.0 | -430.4 | |
| 3.26 | -35.00 | 2.05 | -35.00 | -14.88 | 246.26 | 31.28 | 234.85 | 0.6159 | -872.1 | 999999 | |
| 2.65 | -40.00 | 1.68 | -40.00 | -16.19 | 246.48 | 31.50 | 233.28 | 0.6282 | -980.8 | 999999 | |
| 5.91 | -40.00 | 3.77 | -40.00 | -16.82 | 246.56 | 31.57 | 232.53 | 0.6338 | -866.7 | 999999 | |
| 4.94 | -40.00 | 3.14 | -40.00 | -16.42 | 246.48 | 31.50 | 232.98 | 0.6300 | -942.9 | 999999 | |
| 0.00 | 0.53 | 0.00 | 0.33 | -15.86 | 246.39 | 31.40 | 233.64 | 0.6247 | -744.0 | -641.8 | |
| 1.41 | -35.00 | 0.88 | -35.00 | -14.90 | 246.04 | 31.06 | 234.64 | 0.6136 | -935.7 | 999999 | |
| 0.00 | 1.32 | 0.00 | 0.82 | -14.31 | 245.81 | 30.82 | 235.26 | 0.6064 | -738.0 | -633.9 | |
| 18.34 | 27.95 | 11.45 | 17.44 | -15.25 | 245.52 | 30.54 | 233.70 | 0.6104 | -943.1 | -725.6 | |
| 0.00 | 1.23 | 0.00 | 0.77 | -14.85 | 245.28 | 30.29 | 234.04 | 0.6046 | -759.0 | -688.5 | |
| 1.59 | 2.91 | 0.98 | 1.79 | -14.32 | 244.94 | 29.96 | 234.49 | 0.5967 | -797.3 | -612.9 | |
| 0.00 | 2.56 | 0.00 | 1.57 | -14.08 | 244.80 | 29.82 | 234.69 | 0.5933 | -1036.0 | -849.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
