SDO HMI 2014-09-28 17:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 274.84 | 1238.19 | 196.79 | 890.81 | 15.21 | 261.35 | 46.37 | 284.67 | 0.7233 | 3.6 | -153.7 | |
|
previous
or next observation for the same group /

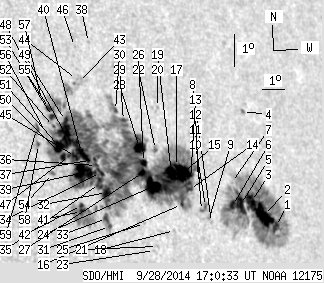

back to the solar disc SDO HMI 2014-09-28 17:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.23 | 294.43 | 3.35 | 229.28 | 13.21 | 266.74 | 51.76 | 281.48 | 0.7825 | -522.2 | -259.9 | |
| 25.04 | -1.00 | 19.64 | -1.00 | 13.59 | 266.26 | 51.28 | 281.99 | 0.7775 | -906.9 | 999999 | |
| 10.40 | -1.00 | 8.08 | -1.00 | 14.06 | 265.81 | 50.83 | 282.62 | 0.7729 | -853.2 | 999999 | |
| 0.44 | 1.85 | 0.35 | 1.46 | 16.79 | 266.30 | 51.32 | 286.09 | 0.7801 | -514.4 | -387.4 | |
| 15.17 | -1.00 | 11.66 | -1.00 | 14.02 | 265.26 | 50.27 | 282.60 | 0.7669 | -879.9 | 999999 | |
| 5.29 | -1.00 | 4.03 | -1.00 | 14.02 | 264.87 | 49.89 | 282.63 | 0.7627 | -984.7 | 999999 | |
| 0.00 | 0.44 | 0.00 | 0.34 | 14.71 | 265.04 | 50.05 | 283.52 | 0.7649 | -440.0 | -372.8 | |
| 0.00 | 1.06 | 0.00 | 0.79 | 13.60 | 263.75 | 48.76 | 282.15 | 0.7500 | -486.0 | -473.8 | |
| 0.00 | 1.76 | 0.00 | 1.31 | 13.76 | 263.70 | 48.71 | 282.36 | 0.7495 | -745.0 | -635.3 | |
| 0.62 | 4.59 | 0.46 | 3.41 | 14.10 | 263.61 | 48.62 | 282.83 | 0.7487 | -763.9 | -641.6 | |
| 0.53 | -10.00 | 0.39 | -10.00 | 14.00 | 263.39 | 48.41 | 282.71 | 0.7462 | -724.0 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.79 | 14.82 | 263.49 | 48.51 | 283.80 | 0.7479 | -452.0 | -336.2 | |
| 2.20 | 856.03 | 1.63 | 600.91 | 14.94 | 263.15 | 48.17 | 283.99 | 0.7442 | -642.6 | -169.2 | |
| 2.29 | -13.00 | 1.69 | -13.00 | 14.68 | 263.02 | 48.04 | 283.65 | 0.7426 | -787.0 | 999999 | |
| 19.75 | -13.00 | 14.53 | -13.00 | 15.18 | 262.85 | 47.87 | 284.35 | 0.7411 | -970.5 | 999999 | |
| 1.23 | -13.00 | 0.90 | -13.00 | 14.26 | 262.53 | 47.55 | 283.13 | 0.7366 | -14.4 | 999999 | |
| 2.12 | -13.00 | 1.55 | -13.00 | 15.42 | 262.64 | 47.66 | 284.69 | 0.7389 | -920.8 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.70 | 13.51 | 262.01 | 47.03 | 282.15 | 0.7300 | 464.0 | 314.0 | |
| 11.99 | -13.00 | 8.73 | -13.00 | 15.23 | 262.35 | 47.37 | 284.46 | 0.7354 | -1318.8 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.77 | 17.26 | 262.35 | 47.37 | 287.22 | 0.7379 | -516.0 | -462.2 | |
| 0.00 | 1.23 | 0.00 | 0.88 | 13.10 | 261.14 | 46.15 | 281.64 | 0.7195 | 291.0 | 267.5 | |
| 0.88 | 3.62 | 0.64 | 2.61 | 16.01 | 261.85 | 46.87 | 285.58 | 0.7306 | -686.8 | -501.7 | |
| 0.00 | 0.88 | 0.00 | 0.62 | 12.99 | 260.98 | 45.99 | 281.51 | 0.7176 | 601.0 | 446.0 | |
| 19.40 | -13.00 | 13.89 | -13.00 | 14.91 | 261.39 | 46.41 | 284.13 | 0.7241 | 599.6 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.69 | 13.83 | 260.74 | 45.76 | 282.70 | 0.7154 | 431.0 | 361.9 | |
| 4.59 | -13.00 | 3.27 | -13.00 | 15.66 | 261.20 | 46.22 | 285.20 | 0.7227 | -1061.6 | 999999 | |
| 3.35 | -13.00 | 2.39 | -13.00 | 15.37 | 261.07 | 46.09 | 284.80 | 0.7208 | -1145.8 | 999999 | |
| 11.11 | -13.00 | 7.94 | -13.00 | 16.13 | 261.16 | 46.18 | 285.85 | 0.7228 | -1072.4 | 999999 | |
| 1.68 | -13.00 | 1.19 | -13.00 | 17.00 | 260.71 | 45.72 | 287.12 | 0.7188 | -720.3 | 999999 | |
| 1.32 | -13.00 | 0.94 | -13.00 | 17.33 | 260.45 | 45.47 | 287.62 | 0.7163 | -528.9 | 999999 | |
| 1.32 | -13.00 | 0.91 | -13.00 | 13.87 | 259.21 | 44.23 | 282.91 | 0.6971 | 708.5 | 999999 | |
| 8.02 | -13.00 | 5.55 | -13.00 | 14.90 | 259.34 | 44.36 | 284.37 | 0.6998 | 795.3 | 999999 | |
| 3.35 | -13.00 | 2.31 | -13.00 | 14.12 | 259.14 | 44.16 | 283.28 | 0.6965 | 793.8 | 999999 | |
| 3.17 | -13.00 | 2.19 | -13.00 | 15.52 | 259.25 | 44.27 | 285.27 | 0.6995 | 469.6 | 999999 | |
| 6.44 | -13.00 | 4.44 | -13.00 | 15.19 | 259.12 | 44.13 | 284.82 | 0.6975 | 763.6 | 999999 | |
| 1.94 | -13.00 | 1.34 | -13.00 | 15.74 | 259.14 | 44.15 | 285.61 | 0.6984 | 69.5 | 999999 | |
| 1.23 | -13.00 | 0.85 | -13.00 | 15.93 | 259.10 | 44.12 | 285.88 | 0.6983 | 164.0 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.68 | 19.48 | 259.96 | 44.98 | 290.70 | 0.7147 | 351.0 | 346.5 | |
| 27.34 | -13.00 | 18.67 | -13.00 | 15.58 | 258.53 | 43.54 | 285.47 | 0.6908 | 986.2 | 999999 | |
| 14.11 | -13.00 | 9.66 | -13.00 | 16.18 | 258.61 | 43.62 | 286.33 | 0.6927 | 728.1 | 999999 | |
| 3.70 | 42.50 | 2.51 | 28.83 | 14.41 | 258.14 | 43.16 | 283.83 | 0.6846 | 1044.6 | 549.5 | |
| 1.68 | -41.00 | 1.14 | -41.00 | 14.59 | 258.19 | 43.20 | 284.09 | 0.6854 | 1003.9 | 999999 | |
| 0.00 | 3.88 | 0.00 | 2.69 | 18.30 | 259.11 | 44.13 | 289.25 | 0.7025 | 72.0 | 96.6 | |
| 0.00 | 1.23 | 0.00 | 0.86 | 18.40 | 259.06 | 44.07 | 289.40 | 0.7021 | 315.0 | 309.1 | |
| 5.47 | -13.00 | 3.73 | -13.00 | 16.08 | 258.32 | 43.34 | 286.23 | 0.6891 | 934.8 | 999999 | |
| 0.00 | 0.62 | 0.00 | 0.43 | 19.41 | 259.31 | 44.32 | 290.75 | 0.7071 | 362.0 | 331.1 | |
| 2.12 | -13.00 | 1.44 | -13.00 | 16.13 | 258.07 | 43.09 | 286.35 | 0.6862 | 968.2 | 999999 | |
| 25.04 | -13.00 | 17.04 | -13.00 | 16.75 | 258.12 | 43.13 | 287.23 | 0.6878 | 834.3 | 999999 | |
| 2.82 | -13.00 | 1.92 | -13.00 | 17.20 | 258.20 | 43.22 | 287.87 | 0.6897 | 690.4 | 999999 | |
| 3.79 | -13.00 | 2.56 | -13.00 | 16.12 | 257.81 | 42.83 | 286.38 | 0.6830 | 1043.8 | 999999 | |
| 12.08 | -13.00 | 8.16 | -13.00 | 16.44 | 257.73 | 42.75 | 286.86 | 0.6825 | 1122.6 | 999999 | |
| 0.62 | -13.00 | 0.42 | -13.00 | 17.06 | 257.65 | 42.66 | 287.78 | 0.6827 | 838.6 | 999999 | |
| 2.91 | -13.00 | 1.97 | -13.00 | 17.37 | 257.69 | 42.71 | 288.21 | 0.6838 | 868.9 | 999999 | |
| 0.53 | 2.73 | 0.35 | 1.83 | 15.65 | 257.22 | 42.24 | 285.79 | 0.6750 | 857.5 | 741.2 | |
| 3.00 | -13.00 | 2.03 | -13.00 | 17.62 | 257.64 | 42.65 | 288.59 | 0.6836 | 835.5 | 999999 | |
| 0.00 | 5.73 | 0.00 | 3.85 | 16.91 | 257.26 | 42.28 | 287.63 | 0.6777 | 320.0 | 358.8 | |
| 0.00 | 0.71 | 0.00 | 0.48 | 17.92 | 257.38 | 42.40 | 289.08 | 0.6812 | 534.0 | 430.5 | |
| 0.53 | 3.70 | 0.35 | 2.47 | 16.57 | 256.87 | 41.89 | 287.22 | 0.6723 | 942.2 | 794.8 | |
| 0.00 | 6.17 | 0.00 | 4.13 | 17.03 | 256.91 | 41.93 | 287.88 | 0.6737 | 758.0 | 735.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
