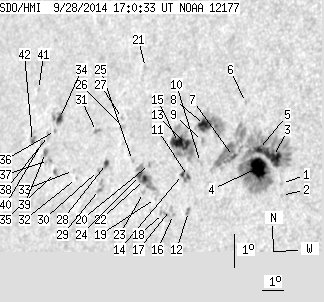

SDO HMI 2014-09-28 17:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 93.10 | 451.92 | 66.56 | 323.60 | 12.21 | 168.58 | -46.40 | 79.56 | 0.7210 | -10.4 | 60.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-28 17:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.32 | 0.00 | 0.89 | 11.65 | 171.95 | -43.03 | 80.20 | 0.6805 | -390.0 | -310.5 | |
| 0.00 | 0.97 | 0.00 | 0.65 | 11.30 | 172.02 | -42.96 | 80.72 | 0.6795 | -366.0 | -331.4 | |
| 16.84 | 243.11 | 11.45 | 167.30 | 12.44 | 171.46 | -43.52 | 79.09 | 0.6872 | -925.4 | -220.9 | |
| 24.16 | -3.00 | 16.57 | -3.00 | 12.06 | 170.90 | -44.09 | 79.68 | 0.6939 | -962.3 | 999999 | |
| 5.64 | -3.00 | 3.88 | -3.00 | 12.59 | 170.78 | -44.20 | 78.91 | 0.6957 | -675.3 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.74 | 13.96 | 169.90 | -45.08 | 77.05 | 0.7075 | -423.0 | -318.8 | |
| 1.50 | -3.00 | 1.05 | -3.00 | 12.30 | 169.76 | -45.22 | 79.41 | 0.7079 | -658.2 | 999999 | |
| 10.93 | 39.59 | 7.85 | 28.28 | 13.15 | 168.27 | -46.71 | 78.32 | 0.7261 | 846.3 | 549.0 | |
| 0.00 | 2.47 | 0.00 | 1.77 | 12.63 | 168.31 | -46.68 | 79.03 | 0.7254 | 831.0 | 703.9 | |
| 0.00 | 2.56 | 0.00 | 1.83 | 12.00 | 168.36 | -46.62 | 79.91 | 0.7244 | -344.0 | -169.0 | |
| 0.97 | 7.23 | 0.70 | 5.23 | 11.54 | 167.93 | -47.06 | 80.56 | 0.7294 | -544.5 | -361.7 | |
| 0.00 | 2.91 | 0.00 | 2.09 | 10.49 | 168.14 | -46.84 | 82.00 | 0.7266 | 607.0 | 572.0 | |
| 4.67 | 58.64 | 3.39 | 42.72 | 12.48 | 167.62 | -47.37 | 79.28 | 0.7334 | 959.0 | 420.2 | |
| 1.06 | -11.00 | 0.77 | -11.00 | 11.57 | 167.65 | -47.34 | 80.52 | 0.7327 | -293.7 | 999999 | |
| 11.99 | -13.00 | 8.77 | -13.00 | 12.51 | 167.24 | -47.74 | 79.26 | 0.7377 | 738.2 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.83 | 10.35 | 167.49 | -47.49 | 82.20 | 0.7342 | 657.0 | 559.1 | |
| 0.00 | 2.38 | 0.00 | 1.74 | 10.48 | 167.33 | -47.65 | 82.02 | 0.7362 | 695.0 | 611.9 | |
| 0.00 | 3.88 | 0.00 | 2.84 | 10.34 | 167.04 | -47.94 | 82.22 | 0.7395 | 502.0 | 474.4 | |
| 0.00 | 0.88 | 0.00 | 0.65 | 10.75 | 166.59 | -48.40 | 81.66 | 0.7448 | 648.0 | 576.9 | |
| 0.00 | 1.76 | 0.00 | 1.32 | 11.74 | 166.08 | -48.90 | 80.34 | 0.7507 | 643.0 | 630.9 | |
| 0.00 | 1.50 | 0.00 | 1.14 | 14.62 | 165.11 | -49.87 | 76.58 | 0.7629 | 210.0 | 242.2 | |
| 2.91 | 25.31 | 2.18 | 18.93 | 11.28 | 165.96 | -49.02 | 80.97 | 0.7520 | 923.3 | 603.9 | |
| 0.00 | 1.59 | 0.00 | 1.19 | 10.88 | 166.00 | -48.98 | 81.49 | 0.7515 | 589.0 | 521.5 | |
| 2.91 | -22.00 | 2.19 | -22.00 | 11.37 | 165.70 | -49.28 | 80.84 | 0.7550 | 765.0 | 999999 | |
| 0.00 | 1.94 | 0.00 | 1.47 | 11.79 | 165.27 | -49.71 | 80.30 | 0.7599 | 623.0 | 483.9 | |
| 0.00 | 2.56 | 0.00 | 1.97 | 12.76 | 164.53 | -50.45 | 79.05 | 0.7682 | 622.0 | 471.5 | |
| 0.00 | 1.32 | 0.00 | 1.02 | 13.00 | 164.47 | -50.51 | 78.74 | 0.7690 | 600.0 | 471.5 | |
| 2.29 | 4.23 | 1.78 | 3.29 | 11.59 | 164.06 | -50.92 | 80.58 | 0.7731 | -595.2 | -476.5 | |
| 0.53 | 5.73 | 0.41 | 4.47 | 10.79 | 163.92 | -51.07 | 81.63 | 0.7746 | -678.0 | -536.7 | |
| 0.00 | 0.88 | 0.00 | 0.69 | 11.35 | 163.73 | -51.25 | 80.90 | 0.7767 | -496.0 | -416.5 | |
| 0.00 | 3.00 | 0.00 | 2.37 | 12.50 | 163.33 | -51.66 | 79.43 | 0.7812 | -690.0 | -572.3 | |
| 0.00 | 0.79 | 0.00 | 0.63 | 11.02 | 162.72 | -52.26 | 81.34 | 0.7875 | -341.0 | -268.0 | |
| 0.00 | 1.59 | 0.00 | 1.27 | 11.24 | 162.51 | -52.47 | 81.05 | 0.7897 | -436.0 | -308.6 | |
| 4.14 | 8.82 | 3.42 | 7.28 | 12.72 | 161.38 | -53.61 | 79.20 | 0.8016 | 796.5 | 539.0 | |
| 0.00 | 2.38 | 0.00 | 1.95 | 11.10 | 161.63 | -53.35 | 81.23 | 0.7989 | 592.0 | 523.2 | |
| 0.00 | 1.41 | 0.00 | 1.17 | 12.34 | 161.28 | -53.70 | 79.67 | 0.8025 | 656.0 | 574.4 | |
| 0.00 | 3.79 | 0.00 | 3.14 | 11.42 | 161.18 | -53.80 | 80.82 | 0.8035 | 692.0 | 519.9 | |
| 0.00 | 2.91 | 0.00 | 2.42 | 12.16 | 160.97 | -54.01 | 79.90 | 0.8057 | 619.0 | 527.1 | |
| 1.50 | 3.62 | 1.25 | 3.01 | 11.64 | 160.96 | -54.02 | 80.55 | 0.8057 | 721.5 | 610.9 | |
| 0.00 | 1.68 | 0.00 | 1.40 | 11.89 | 160.68 | -54.30 | 80.24 | 0.8086 | 532.0 | 408.6 | |
| 0.00 | 0.79 | 0.00 | 0.68 | 13.48 | 160.02 | -54.97 | 78.29 | 0.8154 | 473.0 | 393.6 | |
| 1.06 | 6.17 | 0.90 | 5.23 | 11.91 | 160.19 | -54.79 | 80.22 | 0.8134 | 577.2 | 382.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
