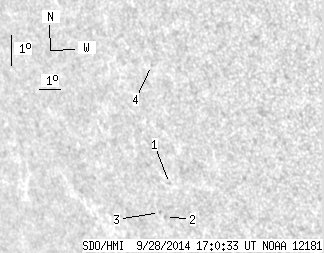

SDO HMI 2014-09-28 17:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.68 | 0.00 | 3.74 | -12.88 | 166.75 | -48.24 | 112.30 | 0.7884 | 494.5 | 400.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-28 17:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.15 | 0.00 | 0.91 | -13.13 | 167.07 | -47.91 | 112.76 | 0.7860 | 531.0 | 417.5 | |
| 0.00 | 1.32 | 0.00 | 1.08 | -14.23 | 166.58 | -48.40 | 113.86 | 0.7948 | 496.0 | 450.9 | |
| 0.00 | 1.15 | 0.00 | 0.93 | -14.12 | 166.33 | -48.65 | 113.62 | 0.7969 | 414.0 | 336.6 | |
| 0.00 | 1.06 | 0.00 | 0.82 | -9.43 | 167.08 | -47.91 | 108.24 | 0.7730 | 537.0 | 387.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
