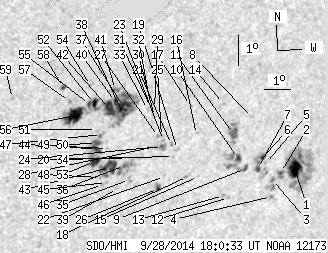

SDO HMI 2014-09-28 18:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 109.33 | 378.53 | 71.92 | 253.76 | -16.54 | 249.90 | 35.47 | 235.84 | 0.6725 | -288.2 | 3.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-28 18:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.87 | 86.41 | 11.43 | 62.39 | -17.64 | 254.52 | 40.09 | 237.72 | 0.7282 | 911.1 | 213.0 | |
| 1.41 | -1.00 | 1.01 | -1.00 | -17.73 | 253.96 | 39.53 | 237.27 | 0.7231 | 842.6 | 999999 | |
| 0.71 | 8.11 | 0.50 | 5.79 | -17.94 | 253.69 | 39.26 | 236.84 | 0.7215 | 810.6 | 574.9 | |
| 0.00 | 1.94 | 0.00 | 1.39 | -18.50 | 253.80 | 39.37 | 236.23 | 0.7260 | 631.0 | 482.0 | |
| 0.00 | 0.88 | 0.00 | 0.62 | -17.38 | 253.26 | 38.83 | 237.25 | 0.7139 | 767.0 | 603.0 | |
| 2.29 | 17.72 | 1.61 | 12.46 | -17.17 | 253.09 | 38.66 | 237.39 | 0.7108 | 910.7 | 677.5 | |
| 1.76 | -6.00 | 1.24 | -6.00 | -17.52 | 252.97 | 38.54 | 236.88 | 0.7118 | 784.5 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.73 | -15.81 | 252.37 | 37.94 | 238.62 | 0.6952 | 684.0 | 513.2 | |
| 1.76 | 23.63 | 1.23 | 16.34 | -17.48 | 252.48 | 38.05 | 236.61 | 0.7065 | 727.3 | 686.7 | |
| 2.65 | -9.00 | 1.83 | -9.00 | -17.12 | 252.12 | 37.68 | 236.80 | 0.7005 | 919.9 | 999999 | |
| 4.58 | 14.72 | 3.13 | 10.06 | -16.28 | 251.72 | 37.29 | 237.59 | 0.6912 | 853.0 | 693.8 | |
| 0.00 | 1.15 | 0.00 | 0.80 | -18.40 | 252.03 | 37.60 | 235.17 | 0.7076 | 610.0 | 554.8 | |
| 0.00 | 1.76 | 0.00 | 1.23 | -18.31 | 251.81 | 37.38 | 235.12 | 0.7048 | 740.0 | 559.8 | |
| 0.00 | 0.88 | 0.00 | 0.59 | -15.26 | 251.11 | 36.68 | 238.48 | 0.6784 | 706.0 | 662.1 | |
| 0.00 | 0.79 | 0.00 | 0.54 | -17.60 | 250.65 | 36.22 | 235.18 | 0.6883 | -237.0 | -128.2 | |
| 0.00 | 0.44 | 0.00 | 0.30 | -16.20 | 250.26 | 35.83 | 236.67 | 0.6751 | -254.0 | -228.0 | |
| 0.00 | 1.59 | 0.00 | 1.05 | -15.23 | 249.83 | 35.40 | 237.62 | 0.6642 | 649.0 | 561.9 | |
| 0.00 | 2.73 | 0.00 | 1.85 | -17.57 | 250.21 | 35.78 | 234.90 | 0.6836 | -445.0 | -321.2 | |
| 0.00 | 2.20 | 0.00 | 1.47 | -16.64 | 249.62 | 35.19 | 235.64 | 0.6712 | -378.0 | -342.2 | |
| 0.00 | 1.15 | 0.00 | 0.76 | -16.86 | 249.51 | 35.08 | 235.28 | 0.6715 | -309.0 | -228.3 | |
| 0.00 | 1.50 | 0.00 | 0.99 | -16.46 | 249.35 | 34.92 | 235.67 | 0.6671 | -483.0 | -412.7 | |
| 0.00 | 0.97 | 0.00 | 0.65 | -17.50 | 249.31 | 34.87 | 234.31 | 0.6737 | -501.0 | -364.8 | |
| 0.00 | 1.15 | 0.00 | 0.76 | -16.31 | 249.02 | 34.58 | 235.62 | 0.6624 | -763.0 | -598.5 | |
| 0.79 | 4.06 | 0.52 | 2.68 | -16.50 | 249.02 | 34.59 | 235.37 | 0.6638 | -747.4 | -544.0 | |
| 0.00 | 0.26 | 0.00 | 0.17 | -16.17 | 248.91 | 34.48 | 235.72 | 0.6604 | -705.0 | -689.0 | |
| 1.50 | 4.23 | 1.00 | 2.83 | -17.89 | 249.16 | 34.73 | 233.72 | 0.6748 | -599.5 | -535.4 | |
| 0.00 | 1.59 | 0.00 | 1.04 | -16.16 | 248.80 | 34.37 | 235.64 | 0.6591 | -888.0 | -620.3 | |
| 0.00 | 1.59 | 0.00 | 1.04 | -16.48 | 248.75 | 34.32 | 235.19 | 0.6607 | -646.0 | -464.9 | |
| 0.00 | 0.97 | 0.00 | 0.63 | -15.23 | 248.47 | 34.04 | 236.61 | 0.6491 | -421.0 | -350.5 | |
| 0.00 | 0.97 | 0.00 | 0.63 | -15.49 | 248.52 | 34.09 | 236.30 | 0.6514 | -414.0 | -377.4 | |
| 0.00 | 0.97 | 0.00 | 0.63 | -15.16 | 248.30 | 33.87 | 236.59 | 0.6468 | -471.0 | -382.1 | |
| 0.00 | 0.35 | 0.00 | 0.23 | -14.89 | 248.22 | 33.79 | 236.87 | 0.6440 | -414.0 | -381.2 | |
| 0.00 | 0.62 | 0.00 | 0.40 | -15.25 | 248.21 | 33.78 | 236.39 | 0.6463 | -535.0 | -481.7 | |
| 0.00 | 2.03 | 0.00 | 1.33 | -16.81 | 248.28 | 33.85 | 234.41 | 0.6580 | 633.0 | 486.2 | |
| 0.00 | 2.47 | 0.00 | 1.62 | -17.50 | 247.97 | 33.54 | 233.27 | 0.6598 | -552.0 | -371.4 | |
| 0.71 | 14.02 | 0.46 | 9.16 | -17.03 | 247.68 | 33.25 | 233.65 | 0.6533 | -718.1 | -469.6 | |
| 11.73 | 113.74 | 7.50 | 72.25 | -15.08 | 247.28 | 32.85 | 235.88 | 0.6349 | -742.4 | -350.9 | |
| 2.20 | -37.00 | 1.41 | -37.00 | -15.35 | 247.33 | 32.90 | 235.57 | 0.6373 | -391.0 | 999999 | |
| 0.00 | 0.71 | 0.00 | 0.46 | -17.77 | 247.57 | 33.14 | 232.61 | 0.6576 | -411.0 | -362.5 | |
| 2.56 | -37.00 | 1.63 | -37.00 | -14.90 | 246.95 | 32.52 | 235.87 | 0.6300 | -870.0 | 999999 | |
| 0.00 | 5.73 | 0.00 | 3.63 | -14.51 | 246.89 | 32.46 | 236.35 | 0.6265 | -647.0 | -509.2 | |
| 10.32 | -37.00 | 6.56 | -37.00 | -15.11 | 246.77 | 32.34 | 235.43 | 0.6294 | -866.3 | 999999 | |
| 11.20 | 19.31 | 7.26 | 12.52 | -17.05 | 247.13 | 32.70 | 233.16 | 0.6475 | -827.0 | -571.9 | |
| 0.00 | 0.71 | 0.00 | 0.45 | -16.42 | 246.93 | 32.50 | 233.82 | 0.6408 | -540.0 | -446.0 | |
| 0.00 | 0.88 | 0.00 | 0.57 | -17.54 | 247.11 | 32.68 | 232.52 | 0.6510 | -417.0 | -354.8 | |
| 0.00 | 1.06 | 0.00 | 0.69 | -17.60 | 246.97 | 32.54 | 232.34 | 0.6500 | -436.0 | -341.8 | |
| 0.00 | 2.12 | 0.00 | 1.35 | -15.94 | 246.62 | 32.19 | 234.19 | 0.6339 | -778.0 | -776.0 | |
| 0.00 | 0.44 | 0.00 | 0.29 | -17.36 | 246.85 | 32.42 | 232.54 | 0.6469 | -472.0 | -455.0 | |
| 3.35 | 22.04 | 2.15 | 14.13 | -16.42 | 246.52 | 32.09 | 233.48 | 0.6364 | -922.2 | -659.4 | |
| 3.09 | -49.00 | 1.97 | -49.00 | -16.23 | 246.49 | 32.06 | 233.71 | 0.6345 | -982.1 | 999999 | |
| 0.00 | 0.35 | 0.00 | 0.22 | -15.77 | 246.40 | 31.97 | 234.25 | 0.6302 | -543.0 | -619.0 | |
| 3.70 | -37.00 | 2.34 | -37.00 | -14.91 | 246.18 | 31.75 | 235.22 | 0.6215 | -868.3 | 999999 | |
| 6.44 | -49.00 | 4.14 | -49.00 | -16.82 | 246.52 | 32.09 | 232.97 | 0.6393 | -835.4 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.66 | -14.32 | 245.94 | 31.51 | 235.83 | 0.6144 | -538.0 | -391.6 | |
| 1.32 | -37.00 | 0.83 | -37.00 | -14.93 | 246.01 | 31.57 | 235.04 | 0.6196 | -918.2 | 999999 | |
| 18.16 | -37.00 | 11.40 | -37.00 | -15.26 | 245.51 | 31.08 | 234.18 | 0.6165 | -950.1 | 999999 | |
| 0.00 | 1.59 | 0.00 | 0.99 | -14.79 | 245.25 | 30.82 | 234.59 | 0.6101 | -649.0 | -608.8 | |
| 1.23 | 2.38 | 0.77 | 1.48 | -14.32 | 244.96 | 30.53 | 234.99 | 0.6033 | -816.1 | -628.7 | |
| 0.00 | 1.50 | 0.00 | 0.91 | -14.56 | 243.18 | 28.75 | 233.02 | 0.5849 | 573.0 | 426.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
