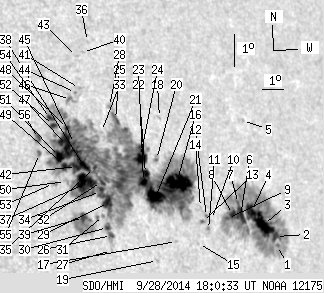

SDO HMI 2014-09-28 18:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 269.56 | 1242.43 | 195.05 | 902.01 | 15.18 | 261.44 | 47.01 | 284.53 | 0.7307 | -75.4 | -127.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-28 18:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.79 | 293.79 | 0.64 | 231.44 | 12.91 | 266.75 | 52.32 | 281.08 | 0.7883 | -529.6 | -256.6 | |
| 3.79 | -1.00 | 3.04 | -1.00 | 13.19 | 266.73 | 52.30 | 281.43 | 0.7882 | -572.9 | 999999 | |
| 25.57 | -1.00 | 20.28 | -1.00 | 13.60 | 266.26 | 51.82 | 281.97 | 0.7833 | -889.3 | 999999 | |
| 11.73 | -1.00 | 9.21 | -1.00 | 14.04 | 265.79 | 51.36 | 282.56 | 0.7786 | -854.4 | 999999 | |
| 0.00 | 1.23 | 0.00 | 0.98 | 16.80 | 266.31 | 51.88 | 286.05 | 0.7859 | -419.0 | -450.1 | |
| 11.11 | -1.00 | 8.63 | -1.00 | 13.97 | 265.23 | 50.80 | 282.50 | 0.7725 | -937.2 | 999999 | |
| 0.26 | -1.00 | 0.21 | -1.00 | 14.34 | 265.24 | 50.81 | 282.98 | 0.7729 | -657.3 | 999999 | |
| 4.23 | -1.00 | 3.26 | -1.00 | 14.04 | 264.85 | 50.42 | 282.61 | 0.7685 | -1001.2 | 999999 | |
| 1.06 | -1.00 | 0.81 | -1.00 | 13.94 | 264.58 | 50.15 | 282.50 | 0.7655 | -862.9 | 999999 | |
| 0.00 | 0.53 | 0.00 | 0.40 | 13.98 | 263.82 | 49.39 | 282.60 | 0.7572 | -519.0 | -562.8 | |
| 0.00 | 2.65 | 0.00 | 1.99 | 13.69 | 263.60 | 49.16 | 282.24 | 0.7545 | -735.0 | -595.1 | |
| 0.00 | 1.32 | 0.00 | 0.99 | 14.09 | 263.61 | 49.18 | 282.76 | 0.7550 | -734.0 | -648.1 | |
| 0.71 | 1.59 | 0.53 | 1.19 | 13.95 | 263.39 | 48.96 | 282.60 | 0.7523 | -813.6 | -685.3 | |
| 0.00 | 0.88 | 0.00 | 0.66 | 14.38 | 263.42 | 48.99 | 283.17 | 0.7529 | -369.0 | -360.3 | |
| 0.00 | 0.97 | 0.00 | 0.72 | 13.31 | 263.02 | 48.59 | 281.77 | 0.7478 | 371.0 | 273.0 | |
| 38.27 | 852.89 | 28.26 | 603.92 | 15.19 | 262.53 | 48.10 | 284.34 | 0.7437 | -1195.6 | -137.3 | |
| 0.00 | 0.97 | 0.00 | 0.71 | 13.46 | 262.04 | 47.61 | 282.04 | 0.7367 | 547.0 | 443.2 | |
| 0.00 | 1.41 | 0.00 | 1.04 | 17.24 | 262.40 | 47.97 | 287.10 | 0.7445 | -436.0 | -412.4 | |
| 0.00 | 1.85 | 0.00 | 1.33 | 12.97 | 261.04 | 46.61 | 281.43 | 0.7249 | 558.0 | 419.2 | |
| 0.53 | 3.53 | 0.39 | 2.58 | 15.99 | 261.85 | 47.42 | 285.49 | 0.7368 | -684.0 | -453.2 | |
| 20.10 | -16.00 | 14.55 | -16.00 | 14.89 | 261.47 | 47.04 | 284.03 | 0.7313 | 514.5 | 999999 | |
| 5.29 | -16.00 | 3.82 | -16.00 | 15.61 | 261.22 | 46.79 | 285.06 | 0.7293 | -1027.7 | 999999 | |
| 7.58 | -16.00 | 5.45 | -16.00 | 15.38 | 261.06 | 46.63 | 284.76 | 0.7272 | -1205.9 | 999999 | |
| 15.08 | -16.00 | 10.88 | -16.00 | 16.14 | 261.16 | 46.73 | 285.79 | 0.7291 | -1042.4 | 999999 | |
| 4.06 | -16.00 | 2.89 | -16.00 | 17.35 | 260.40 | 45.97 | 287.56 | 0.7221 | -431.8 | 999999 | |
| 2.03 | -16.00 | 1.41 | -16.00 | 13.88 | 259.23 | 44.80 | 282.87 | 0.7040 | 720.0 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.67 | 13.43 | 259.12 | 44.69 | 282.24 | 0.7023 | 226.0 | 264.7 | |
| 0.00 | 3.53 | 0.00 | 2.51 | 17.76 | 260.26 | 45.83 | 288.15 | 0.7212 | -356.0 | -255.9 | |
| 14.64 | -16.00 | 10.21 | -16.00 | 14.88 | 259.35 | 44.92 | 284.27 | 0.7065 | 715.7 | 999999 | |
| 2.29 | -16.00 | 1.59 | -16.00 | 14.14 | 259.12 | 44.69 | 283.24 | 0.7029 | 764.7 | 999999 | |
| 0.00 | 1.50 | 0.00 | 1.04 | 14.51 | 259.04 | 44.61 | 283.79 | 0.7023 | 776.0 | 666.9 | |
| 3.44 | -16.00 | 2.40 | -16.00 | 15.54 | 259.23 | 44.79 | 285.22 | 0.7058 | 452.5 | 999999 | |
| 0.00 | 0.79 | 0.00 | 0.56 | 17.04 | 259.67 | 45.24 | 287.26 | 0.7132 | -49.0 | -30.9 | |
| 5.82 | -16.00 | 4.05 | -16.00 | 15.24 | 259.10 | 44.67 | 284.81 | 0.7039 | 710.9 | 999999 | |
| 1.41 | -16.00 | 0.98 | -16.00 | 15.98 | 259.04 | 44.61 | 285.87 | 0.7042 | 208.9 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.63 | 19.81 | 259.98 | 45.55 | 291.02 | 0.7218 | 517.0 | 463.6 | |
| 26.01 | -16.00 | 17.92 | -16.00 | 15.53 | 258.52 | 44.09 | 285.32 | 0.6974 | 991.4 | 999999 | |
| 7.58 | -16.00 | 5.24 | -16.00 | 16.05 | 258.62 | 44.19 | 286.03 | 0.6993 | 767.4 | 999999 | |
| 5.38 | 44.26 | 3.68 | 30.26 | 14.52 | 258.17 | 43.74 | 283.91 | 0.6919 | 1036.5 | 555.0 | |
| 0.00 | 1.15 | 0.00 | 0.81 | 19.49 | 259.64 | 45.21 | 290.67 | 0.7173 | 450.0 | 448.2 | |
| 0.00 | 1.15 | 0.00 | 0.80 | 18.41 | 259.13 | 44.70 | 289.28 | 0.7093 | 429.0 | 383.5 | |
| 4.32 | -16.00 | 2.97 | -16.00 | 16.07 | 258.28 | 43.85 | 286.13 | 0.6953 | 996.4 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.68 | 19.39 | 259.33 | 44.90 | 290.60 | 0.7136 | 561.0 | 416.7 | |
| 0.00 | 0.88 | 0.00 | 0.62 | 18.31 | 258.91 | 44.48 | 289.18 | 0.7066 | 453.0 | 419.2 | |
| 0.26 | -16.00 | 0.18 | -16.00 | 16.77 | 258.39 | 43.96 | 287.11 | 0.6978 | 369.3 | 999999 | |
| 0.00 | 6.52 | 0.00 | 4.53 | 18.11 | 258.63 | 44.20 | 288.96 | 0.7030 | 564.0 | 389.5 | |
| 20.72 | -16.00 | 14.21 | -16.00 | 16.74 | 258.08 | 43.65 | 287.12 | 0.6939 | 856.2 | 999999 | |
| 2.47 | -16.00 | 1.70 | -16.00 | 17.25 | 258.23 | 43.80 | 287.82 | 0.6966 | 644.9 | 999999 | |
| 5.47 | -16.00 | 3.73 | -16.00 | 16.11 | 257.81 | 43.38 | 286.26 | 0.6897 | 1038.6 | 999999 | |
| 0.00 | 2.73 | 0.00 | 1.86 | 15.66 | 257.69 | 43.26 | 285.63 | 0.6876 | 750.0 | 732.5 | |
| 7.14 | -16.00 | 4.86 | -16.00 | 16.43 | 257.64 | 43.21 | 286.76 | 0.6882 | 1201.7 | 999999 | |
| 3.09 | -16.00 | 2.11 | -16.00 | 17.39 | 257.66 | 43.23 | 288.13 | 0.6901 | 878.9 | 999999 | |
| 0.00 | 3.88 | 0.00 | 2.62 | 15.64 | 257.17 | 42.74 | 285.69 | 0.6812 | 813.0 | 657.7 | |
| 3.53 | -16.00 | 2.41 | -16.00 | 17.61 | 257.60 | 43.17 | 288.46 | 0.6898 | 799.4 | 999999 | |
| 1.15 | 2.56 | 0.77 | 1.72 | 16.59 | 256.83 | 42.40 | 287.14 | 0.6786 | 911.0 | 819.5 | |
| 2.65 | 7.05 | 1.78 | 4.75 | 17.05 | 256.92 | 42.48 | 287.79 | 0.6805 | 855.1 | 709.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
