SDO HMI 2014-09-28 18:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 95.49 | 444.72 | 67.82 | 314.85 | 12.20 | 168.66 | -45.77 | 79.54 | 0.7134 | 27.2 | 34.4 | |
|
previous
or next observation for the same group /

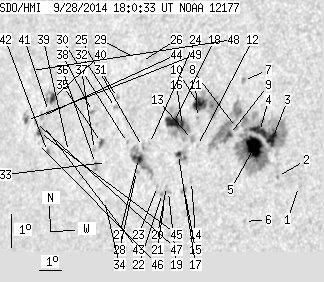

back to the solar disc SDO HMI 2014-09-28 18:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.79 | 0.00 | 0.52 | 11.02 | 172.93 | -41.50 | 81.06 | 0.6607 | -444.0 | -449.4 | |
| 0.00 | 1.23 | 0.00 | 0.82 | 11.25 | 172.02 | -42.41 | 80.76 | 0.6725 | -480.0 | -341.6 | |
| 11.02 | 245.65 | 7.41 | 167.43 | 12.37 | 171.60 | -42.83 | 79.13 | 0.6785 | -977.5 | -244.1 | |
| 10.58 | -3.00 | 7.18 | -3.00 | 12.54 | 171.01 | -43.42 | 78.93 | 0.6859 | -794.7 | 999999 | |
| 23.63 | -3.00 | 16.07 | -3.00 | 12.07 | 170.90 | -43.53 | 79.62 | 0.6871 | -998.3 | 999999 | |
| 0.00 | 1.32 | 0.00 | 0.90 | 9.80 | 170.89 | -43.54 | 82.95 | 0.6863 | -471.0 | -417.6 | |
| 0.00 | 3.00 | 0.00 | 2.07 | 14.01 | 169.99 | -44.44 | 76.91 | 0.6998 | -571.0 | -399.0 | |
| 0.00 | 2.12 | 0.00 | 1.46 | 12.58 | 170.02 | -44.41 | 78.95 | 0.6982 | -525.0 | -378.6 | |
| 2.29 | -3.00 | 1.59 | -3.00 | 12.35 | 169.77 | -44.66 | 79.31 | 0.7012 | -667.7 | 999999 | |
| 11.64 | 40.03 | 8.27 | 28.30 | 13.13 | 168.26 | -46.17 | 78.30 | 0.7197 | 838.7 | 562.3 | |
| 0.00 | 1.06 | 0.00 | 0.75 | 12.74 | 168.27 | -46.16 | 78.85 | 0.7194 | 799.0 | 733.9 | |
| 0.00 | 0.71 | 0.00 | 0.50 | 11.90 | 168.46 | -45.97 | 80.01 | 0.7167 | -254.0 | -211.8 | |
| 0.00 | 3.62 | 0.00 | 2.57 | 12.06 | 168.20 | -46.23 | 79.80 | 0.7198 | -91.0 | 34.3 | |
| 0.00 | 1.23 | 0.00 | 0.87 | 10.81 | 168.42 | -46.01 | 81.55 | 0.7168 | 543.0 | 450.4 | |
| 0.97 | 2.73 | 0.69 | 1.94 | 10.51 | 168.17 | -46.26 | 81.96 | 0.7198 | 613.8 | 516.5 | |
| 3.88 | 40.29 | 2.79 | 29.05 | 12.44 | 167.67 | -46.77 | 79.30 | 0.7263 | 990.0 | 547.5 | |
| 2.03 | 9.61 | 1.45 | 6.88 | 11.56 | 167.68 | -46.75 | 80.52 | 0.7258 | -389.6 | -344.8 | |
| 12.34 | -16.00 | 8.94 | -16.00 | 12.50 | 167.24 | -47.19 | 79.25 | 0.7313 | 764.8 | 999999 | |
| 0.00 | 1.85 | 0.00 | 1.33 | 10.42 | 167.47 | -46.96 | 82.09 | 0.7280 | 673.0 | 605.5 | |
| 0.00 | 1.06 | 0.00 | 0.76 | 10.56 | 167.35 | -47.08 | 81.90 | 0.7295 | 715.0 | 646.5 | |
| 0.00 | 0.79 | 0.00 | 0.57 | 10.17 | 167.34 | -47.09 | 82.45 | 0.7296 | 572.0 | 492.3 | |
| 0.00 | 1.68 | 0.00 | 1.21 | 10.34 | 167.22 | -47.22 | 82.21 | 0.7310 | 622.0 | 564.9 | |
| 0.00 | 0.97 | 0.00 | 0.71 | 10.53 | 166.95 | -47.48 | 81.95 | 0.7341 | 534.0 | 463.4 | |
| 0.00 | 1.23 | 0.00 | 0.91 | 11.78 | 166.31 | -48.12 | 80.27 | 0.7418 | 501.0 | 417.1 | |
| 0.00 | 1.85 | 0.00 | 1.37 | 11.66 | 166.02 | -48.41 | 80.43 | 0.7451 | 855.0 | 730.6 | |
| 0.00 | 0.79 | 0.00 | 0.60 | 14.20 | 165.31 | -49.12 | 77.09 | 0.7543 | 610.0 | 524.6 | |
| 6.08 | 27.25 | 4.51 | 20.16 | 11.29 | 165.92 | -48.51 | 80.94 | 0.7462 | 869.4 | 612.0 | |
| 0.00 | 2.12 | 0.00 | 1.57 | 10.90 | 165.91 | -48.52 | 81.47 | 0.7462 | 674.0 | 559.4 | |
| 0.00 | 0.26 | 0.00 | 0.20 | 14.26 | 165.00 | -49.43 | 77.02 | 0.7578 | 542.0 | 501.0 | |
| 0.00 | 0.97 | 0.00 | 0.73 | 11.72 | 165.30 | -49.13 | 80.38 | 0.7533 | 531.0 | 483.3 | |
| 0.00 | 1.76 | 0.00 | 1.34 | 13.02 | 164.49 | -49.94 | 78.69 | 0.7627 | 565.0 | 479.3 | |
| 0.00 | 2.29 | 0.00 | 1.75 | 12.72 | 164.48 | -49.95 | 79.09 | 0.7628 | 490.0 | 444.1 | |
| 0.00 | 0.26 | 0.00 | 0.20 | 11.04 | 164.47 | -49.96 | 81.29 | 0.7625 | 306.0 | 335.7 | |
| 0.00 | 0.62 | 0.00 | 0.47 | 9.90 | 164.62 | -49.81 | 82.79 | 0.7608 | 484.0 | 489.4 | |
| 1.94 | 4.50 | 1.49 | 3.46 | 11.62 | 164.09 | -50.34 | 80.54 | 0.7668 | -624.0 | -451.6 | |
| 0.35 | 3.00 | 0.27 | 2.31 | 10.97 | 163.96 | -50.48 | 81.40 | 0.7682 | -766.5 | -618.1 | |
| 0.00 | 1.50 | 0.00 | 1.16 | 11.38 | 163.81 | -50.62 | 80.86 | 0.7698 | -490.0 | -406.6 | |
| 0.00 | 2.20 | 0.00 | 1.72 | 12.50 | 163.42 | -51.01 | 79.41 | 0.7743 | -715.0 | -576.5 | |
| 0.00 | 0.71 | 0.00 | 0.56 | 11.20 | 162.57 | -51.86 | 81.09 | 0.7832 | -412.0 | -381.6 | |
| 4.23 | 11.37 | 3.45 | 9.29 | 12.71 | 161.35 | -53.08 | 79.20 | 0.7962 | 846.3 | 526.3 | |
| 0.00 | 1.41 | 0.00 | 1.15 | 12.30 | 161.26 | -53.17 | 79.71 | 0.7970 | 700.0 | 588.9 | |
| 0.71 | 1.85 | 0.57 | 1.50 | 11.11 | 161.54 | -52.89 | 81.22 | 0.7941 | 655.6 | 574.2 | |
| 0.00 | 1.50 | 0.00 | 1.23 | 11.86 | 161.13 | -53.30 | 80.27 | 0.7984 | 616.0 | 482.1 | |
| 0.00 | 2.82 | 0.00 | 2.32 | 12.12 | 160.95 | -53.48 | 79.95 | 0.8002 | 643.0 | 543.8 | |
| 2.12 | 5.55 | 1.74 | 4.56 | 11.64 | 160.99 | -53.45 | 80.55 | 0.7998 | 740.9 | 585.2 | |
| 0.00 | 0.97 | 0.00 | 0.80 | 11.30 | 161.02 | -53.41 | 80.97 | 0.7994 | 412.0 | 394.5 | |
| 0.00 | 1.59 | 0.00 | 1.31 | 11.91 | 160.70 | -53.73 | 80.21 | 0.8028 | 567.0 | 463.2 | |
| 0.00 | 1.06 | 0.00 | 0.89 | 13.44 | 160.02 | -54.42 | 78.32 | 0.8099 | 494.0 | 358.8 | |
| 1.68 | 5.55 | 1.40 | 4.65 | 11.93 | 160.22 | -54.21 | 80.19 | 0.8076 | 596.4 | 367.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
