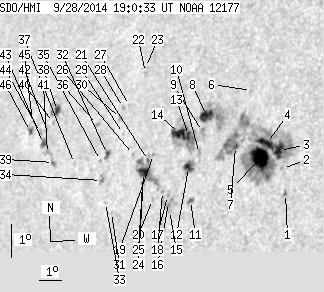

SDO HMI 2014-09-28 19:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 96.63 | 457.43 | 67.83 | 321.31 | 12.14 | 168.54 | -45.34 | 79.60 | 0.7083 | 22.5 | 76.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-28 19:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.44 | 1.76 | 0.29 | 1.17 | 11.09 | 172.08 | -41.80 | 80.97 | 0.6646 | -304.2 | -271.9 | |
| 0.00 | 1.32 | 0.00 | 0.88 | 11.82 | 171.82 | -42.06 | 79.88 | 0.6683 | -615.0 | -531.3 | |
| 9.43 | 241.76 | 6.29 | 163.42 | 12.35 | 171.59 | -42.29 | 79.11 | 0.6716 | -1012.9 | -249.7 | |
| 9.35 | -3.00 | 6.29 | -3.00 | 12.52 | 171.01 | -42.86 | 78.91 | 0.6790 | -786.1 | 999999 | |
| 26.36 | -3.00 | 17.78 | -3.00 | 12.08 | 170.85 | -43.03 | 79.57 | 0.6808 | -977.0 | 999999 | |
| 0.00 | 1.23 | 0.00 | 0.85 | 14.06 | 170.03 | -43.84 | 76.77 | 0.6926 | -572.0 | -442.9 | |
| 2.12 | -3.00 | 1.45 | -3.00 | 12.33 | 169.74 | -44.14 | 79.30 | 0.6948 | -640.6 | 999999 | |
| 10.84 | 39.76 | 7.63 | 27.85 | 13.15 | 168.29 | -45.59 | 78.23 | 0.7129 | 882.5 | 556.1 | |
| 0.00 | 3.35 | 0.00 | 2.36 | 12.66 | 168.22 | -45.65 | 78.93 | 0.7133 | 919.0 | 747.3 | |
| 0.00 | 2.65 | 0.00 | 1.86 | 11.99 | 168.24 | -45.64 | 79.87 | 0.7127 | -107.0 | 69.6 | |
| 1.06 | 2.73 | 0.75 | 1.93 | 10.56 | 168.14 | -45.74 | 81.89 | 0.7135 | 652.4 | 502.3 | |
| 4.76 | 11.55 | 3.37 | 8.18 | 11.54 | 167.85 | -46.03 | 80.53 | 0.7172 | -542.3 | -42.2 | |
| 3.17 | 46.38 | 2.26 | 33.11 | 12.49 | 167.64 | -46.24 | 79.21 | 0.7201 | 1020.8 | 523.4 | |
| 11.20 | -13.00 | 8.02 | -13.00 | 12.52 | 167.23 | -46.65 | 79.19 | 0.7250 | 771.0 | 999999 | |
| 0.00 | 2.03 | 0.00 | 1.45 | 10.18 | 167.28 | -46.60 | 82.43 | 0.7238 | 506.0 | 448.5 | |
| 0.00 | 9.08 | 0.00 | 6.50 | 10.42 | 167.19 | -46.69 | 82.10 | 0.7248 | 509.0 | 527.5 | |
| 0.00 | 0.97 | 0.00 | 0.70 | 10.62 | 167.10 | -46.78 | 81.82 | 0.7259 | 674.0 | 594.5 | |
| 0.00 | 1.06 | 0.00 | 0.76 | 10.72 | 166.86 | -47.02 | 81.68 | 0.7288 | 705.0 | 591.2 | |
| 0.00 | 0.97 | 0.00 | 0.71 | 11.79 | 166.22 | -47.66 | 80.24 | 0.7365 | 524.0 | 471.3 | |
| 0.00 | 1.50 | 0.00 | 1.09 | 10.45 | 166.46 | -47.42 | 82.07 | 0.7334 | 423.0 | 352.4 | |
| 0.62 | 32.62 | 0.45 | 23.88 | 11.59 | 166.04 | -47.84 | 80.51 | 0.7386 | 912.9 | 614.4 | |
| 0.00 | 1.15 | 0.00 | 0.85 | 14.21 | 165.23 | -48.65 | 77.04 | 0.7491 | 686.0 | 609.6 | |
| 0.00 | 1.06 | 0.00 | 0.79 | 14.36 | 165.18 | -48.69 | 76.84 | 0.7497 | 358.0 | 299.2 | |
| 7.94 | -21.00 | 5.82 | -21.00 | 11.22 | 165.89 | -47.99 | 81.03 | 0.7402 | 871.0 | 999999 | |
| 0.00 | 1.68 | 0.00 | 1.23 | 10.88 | 165.92 | -47.96 | 81.48 | 0.7398 | 643.0 | 565.9 | |
| 0.00 | 0.97 | 0.00 | 0.72 | 11.71 | 165.31 | -48.56 | 80.37 | 0.7469 | 411.0 | 447.5 | |
| 0.00 | 0.88 | 0.00 | 0.66 | 13.16 | 164.76 | -49.12 | 78.47 | 0.7537 | 565.0 | 515.4 | |
| 0.00 | 1.68 | 0.00 | 1.26 | 13.07 | 164.50 | -49.38 | 78.59 | 0.7565 | 492.0 | 446.1 | |
| 0.00 | 0.79 | 0.00 | 0.60 | 12.30 | 164.70 | -49.18 | 79.61 | 0.7540 | 172.0 | 163.8 | |
| 0.00 | 2.20 | 0.00 | 1.66 | 12.73 | 164.45 | -49.43 | 79.05 | 0.7570 | 440.0 | 395.0 | |
| 0.00 | 1.15 | 0.00 | 0.86 | 9.90 | 164.68 | -49.20 | 82.81 | 0.7539 | 526.0 | 396.9 | |
| 2.20 | 4.32 | 1.67 | 3.28 | 11.61 | 164.11 | -49.76 | 80.55 | 0.7604 | -581.0 | -440.7 | |
| 0.00 | 1.06 | 0.00 | 0.80 | 10.17 | 164.34 | -49.53 | 82.44 | 0.7577 | 533.0 | 414.4 | |
| 0.53 | 3.70 | 0.40 | 2.82 | 10.81 | 164.01 | -49.86 | 81.60 | 0.7614 | -683.3 | -598.9 | |
| 0.00 | 0.88 | 0.00 | 0.67 | 11.40 | 163.83 | -50.05 | 80.82 | 0.7635 | -450.0 | -393.2 | |
| 0.00 | 2.12 | 0.00 | 1.63 | 12.46 | 163.42 | -50.46 | 79.45 | 0.7683 | -697.0 | -540.0 | |
| 0.00 | 0.97 | 0.00 | 0.76 | 11.20 | 162.62 | -51.26 | 81.10 | 0.7768 | -469.0 | -395.8 | |
| 2.91 | 9.35 | 2.34 | 7.54 | 12.70 | 161.36 | -52.52 | 79.20 | 0.7903 | 899.9 | 538.6 | |
| 0.00 | 3.88 | 0.00 | 3.11 | 11.14 | 161.59 | -52.29 | 81.18 | 0.7878 | 683.0 | 532.0 | |
| 0.00 | 0.88 | 0.00 | 0.71 | 12.32 | 161.27 | -52.61 | 79.68 | 0.7913 | 624.0 | 574.7 | |
| 0.00 | 3.79 | 0.00 | 3.06 | 11.38 | 161.22 | -52.66 | 80.88 | 0.7916 | 703.0 | 601.9 | |
| 0.00 | 2.56 | 0.00 | 2.08 | 12.11 | 160.97 | -52.91 | 79.95 | 0.7943 | 692.0 | 568.8 | |
| 2.38 | 4.67 | 1.93 | 3.79 | 11.65 | 160.94 | -52.94 | 80.53 | 0.7946 | 694.4 | 561.3 | |
| 0.00 | 2.20 | 0.00 | 1.80 | 11.97 | 160.70 | -53.18 | 80.14 | 0.7971 | 587.0 | 446.2 | |
| 0.00 | 0.71 | 0.00 | 0.58 | 12.26 | 160.20 | -53.67 | 79.78 | 0.8022 | 342.0 | 309.0 | |
| 1.32 | 4.06 | 1.09 | 3.35 | 11.95 | 160.19 | -53.69 | 80.16 | 0.8023 | 593.6 | 444.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
