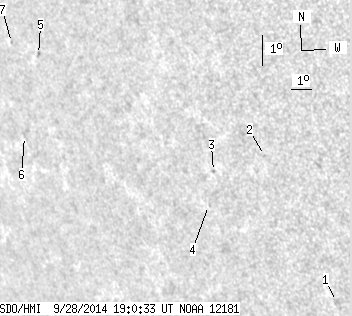

SDO HMI 2014-09-28 19:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 10.32 | 0.00 | 8.52 | -13.25 | 164.63 | -49.25 | 112.70 | 0.7989 | 168.1 | 70.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-28 19:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.35 | 0.00 | 2.49 | -16.95 | 171.48 | -42.40 | 120.08 | 0.7476 | 60.0 | 154.8 | |
| 0.00 | 1.06 | 0.00 | 0.78 | -12.44 | 169.53 | -44.35 | 113.50 | 0.7467 | 491.0 | 373.6 | |
| 0.00 | 1.15 | 0.00 | 0.89 | -13.15 | 167.10 | -46.77 | 113.28 | 0.7747 | 643.0 | 489.2 | |
| 0.00 | 0.53 | 0.00 | 0.42 | -14.28 | 166.58 | -47.30 | 114.40 | 0.7844 | 455.0 | 477.3 | |
| 0.00 | 2.12 | 0.00 | 1.92 | -10.21 | 159.34 | -54.54 | 106.92 | 0.8400 | -527.0 | -375.2 | |
| 0.00 | 1.23 | 0.00 | 1.19 | -12.94 | 157.76 | -56.12 | 109.53 | 0.8606 | -332.0 | -266.5 | |
| 0.00 | 0.88 | 0.00 | 0.83 | -9.97 | 157.95 | -55.93 | 106.24 | 0.8518 | 387.0 | 386.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
