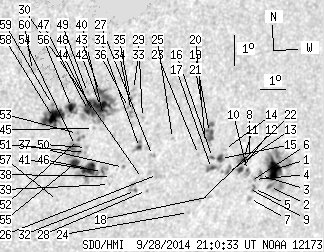

SDO HMI 2014-09-28 21:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 106.44 | 370.25 | 71.89 | 252.86 | -16.50 | 249.72 | 36.95 | 236.97 | 0.6879 | -193.0 | -22.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-28 21:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.40 | 67.72 | 14.39 | 50.31 | -17.66 | 254.67 | 41.90 | 238.79 | 0.7463 | 773.2 | 188.8 | |
| 1.06 | -1.00 | 0.79 | -1.00 | -18.21 | 254.66 | 41.89 | 238.12 | 0.7492 | 521.0 | 999999 | |
| 0.00 | 3.97 | 0.00 | 2.92 | -17.81 | 254.16 | 41.39 | 238.31 | 0.7421 | 778.0 | 658.6 | |
| 0.00 | 1.59 | 0.00 | 1.17 | -17.92 | 253.94 | 41.17 | 238.04 | 0.7406 | 789.0 | 720.1 | |
| 0.88 | 2.56 | 0.65 | 1.88 | -18.22 | 253.99 | 41.21 | 237.71 | 0.7426 | 616.3 | 546.3 | |
| 0.00 | 1.06 | 0.00 | 0.78 | -17.98 | 253.79 | 41.02 | 237.88 | 0.7393 | 476.0 | 441.7 | |
| 0.00 | 2.12 | 0.00 | 1.56 | -18.55 | 253.91 | 41.14 | 237.28 | 0.7437 | 591.0 | 507.2 | |
| 0.00 | 1.32 | 0.00 | 0.96 | -17.20 | 253.53 | 40.76 | 238.66 | 0.7325 | 467.0 | 538.5 | |
| 0.00 | 1.06 | 0.00 | 0.78 | -18.20 | 253.77 | 41.00 | 237.60 | 0.7404 | 483.0 | 434.2 | |
| 0.53 | 4.67 | 0.39 | 3.40 | -17.60 | 253.56 | 40.78 | 238.20 | 0.7349 | 741.7 | 586.6 | |
| 2.12 | 13.40 | 1.53 | 9.68 | -17.22 | 253.29 | 40.52 | 238.50 | 0.7301 | 937.5 | 703.3 | |
| 2.29 | -11.00 | 1.66 | -11.00 | -17.54 | 253.25 | 40.48 | 238.08 | 0.7315 | 740.5 | 999999 | |
| 0.79 | 5.38 | 0.57 | 3.86 | -17.59 | 252.73 | 39.95 | 237.69 | 0.7266 | 637.9 | 579.1 | |
| 0.00 | 1.94 | 0.00 | 1.38 | -16.82 | 252.40 | 39.63 | 238.44 | 0.7188 | 744.0 | 525.4 | |
| 2.91 | 6.61 | 2.07 | 4.69 | -17.10 | 252.31 | 39.54 | 238.03 | 0.7195 | 897.8 | 706.5 | |
| 0.71 | -15.00 | 0.50 | -15.00 | -17.04 | 251.97 | 39.20 | 237.89 | 0.7157 | 769.0 | 999999 | |
| 2.38 | 7.67 | 1.69 | 5.45 | -17.41 | 252.02 | 39.25 | 237.48 | 0.7183 | 777.2 | 622.4 | |
| 0.00 | 1.06 | 0.00 | 0.76 | -18.34 | 252.23 | 39.46 | 236.47 | 0.7259 | 565.0 | 533.8 | |
| 0.00 | 15.70 | 0.00 | 10.97 | -16.20 | 251.65 | 38.87 | 238.73 | 0.7074 | 818.0 | 714.3 | |
| 0.00 | 0.44 | 0.00 | 0.31 | -16.52 | 251.56 | 38.79 | 238.27 | 0.7084 | 534.0 | 560.2 | |
| 0.00 | 1.32 | 0.00 | 0.91 | -15.36 | 251.17 | 38.40 | 239.49 | 0.6975 | 737.0 | 650.4 | |
| 0.00 | 0.79 | 0.00 | 0.57 | -18.44 | 251.85 | 39.07 | 236.10 | 0.7227 | 736.0 | 622.4 | |
| 0.00 | 0.88 | 0.00 | 0.62 | -16.90 | 251.37 | 38.59 | 237.68 | 0.7086 | 336.0 | 319.7 | |
| 0.00 | 0.97 | 0.00 | 0.69 | -18.81 | 251.46 | 38.68 | 235.41 | 0.7210 | 379.0 | 389.4 | |
| 0.00 | 0.79 | 0.00 | 0.54 | -16.29 | 250.19 | 37.42 | 237.67 | 0.6925 | -357.0 | -281.2 | |
| 0.00 | 5.03 | 0.00 | 3.46 | -17.43 | 249.86 | 37.09 | 236.00 | 0.6963 | 143.0 | 145.6 | |
| 0.00 | 2.38 | 0.00 | 1.62 | -16.79 | 249.51 | 36.74 | 236.57 | 0.6885 | -524.0 | -353.4 | |
| 0.00 | 1.06 | 0.00 | 0.73 | -17.93 | 249.54 | 36.77 | 235.16 | 0.6962 | -259.0 | -265.9 | |
| 0.00 | 1.23 | 0.00 | 0.83 | -15.50 | 248.85 | 36.08 | 237.75 | 0.6733 | -282.0 | -267.8 | |
| 0.00 | 0.79 | 0.00 | 0.54 | -17.52 | 249.29 | 36.52 | 235.49 | 0.6909 | -421.0 | -379.7 | |
| 1.32 | 6.17 | 0.89 | 4.16 | -16.48 | 248.94 | 36.16 | 236.55 | 0.6805 | -631.8 | -527.7 | |
| 0.53 | 5.82 | 0.36 | 3.97 | -17.90 | 249.10 | 36.33 | 234.89 | 0.6915 | -498.8 | -455.2 | |
| 0.00 | 2.12 | 0.00 | 1.39 | -14.56 | 248.32 | 35.55 | 238.61 | 0.6615 | -459.0 | -374.6 | |
| 0.00 | 4.67 | 0.00 | 3.10 | -15.28 | 248.38 | 35.61 | 237.71 | 0.6667 | -427.0 | -366.9 | |
| 0.00 | 2.03 | 0.00 | 1.34 | -14.88 | 248.27 | 35.49 | 238.15 | 0.6629 | -356.0 | -307.6 | |
| 0.00 | 0.71 | 0.00 | 0.47 | -15.14 | 248.24 | 35.47 | 237.79 | 0.6642 | -666.0 | -549.9 | |
| 0.00 | 1.32 | 0.00 | 0.89 | -17.10 | 248.45 | 35.68 | 235.42 | 0.6794 | -537.0 | -344.1 | |
| 0.00 | 0.79 | 0.00 | 0.53 | -17.36 | 248.05 | 35.27 | 234.79 | 0.6769 | -227.0 | -208.4 | |
| 0.00 | 0.79 | 0.00 | 0.53 | -17.62 | 248.03 | 35.25 | 234.44 | 0.6785 | -426.0 | -371.6 | |
| 0.26 | 76.98 | 0.17 | 50.09 | -15.33 | 247.32 | 34.55 | 236.87 | 0.6554 | -322.7 | -166.7 | |
| 0.79 | 58.55 | 0.53 | 38.55 | -17.17 | 247.66 | 34.88 | 234.74 | 0.6715 | -636.3 | -563.4 | |
| 14.20 | -40.00 | 9.25 | -40.00 | -15.03 | 247.15 | 34.38 | 237.14 | 0.6515 | -740.0 | 999999 | |
| 3.53 | -40.00 | 2.29 | -40.00 | -14.53 | 247.03 | 34.25 | 237.71 | 0.6468 | -479.7 | 999999 | |
| 2.56 | -40.00 | 1.66 | -40.00 | -15.20 | 246.92 | 34.15 | 236.73 | 0.6502 | -689.4 | 999999 | |
| 0.00 | 1.41 | 0.00 | 0.92 | -15.73 | 247.02 | 34.25 | 236.12 | 0.6548 | -426.0 | -337.4 | |
| 10.76 | -41.00 | 7.12 | -41.00 | -17.03 | 247.09 | 34.32 | 234.48 | 0.6646 | -826.8 | 999999 | |
| 4.41 | -40.00 | 2.86 | -40.00 | -15.12 | 246.72 | 33.95 | 236.68 | 0.6474 | -794.4 | 999999 | |
| 3.62 | -40.00 | 2.34 | -40.00 | -14.93 | 246.68 | 33.91 | 236.92 | 0.6457 | -966.3 | 999999 | |
| 0.00 | 1.59 | 0.00 | 1.02 | -14.53 | 246.58 | 33.80 | 237.36 | 0.6418 | -624.0 | -520.8 | |
| 0.00 | 1.76 | 0.00 | 1.16 | -16.33 | 246.87 | 34.10 | 235.21 | 0.6574 | -499.0 | -400.5 | |
| 0.00 | 0.79 | 0.00 | 0.52 | -16.49 | 246.87 | 34.09 | 235.00 | 0.6585 | -509.0 | -431.2 | |
| 0.44 | 3.44 | 0.29 | 2.24 | -16.05 | 246.51 | 33.74 | 235.31 | 0.6515 | -836.4 | -720.6 | |
| 0.00 | 1.06 | 0.00 | 0.69 | -15.85 | 246.44 | 33.67 | 235.51 | 0.6493 | -804.0 | -708.1 | |
| 0.79 | -41.00 | 0.52 | -41.00 | -16.24 | 246.44 | 33.67 | 235.00 | 0.6520 | -1000.2 | 999999 | |
| 5.56 | -41.00 | 3.64 | -41.00 | -16.83 | 246.52 | 33.74 | 234.30 | 0.6571 | -873.7 | 999999 | |
| 5.11 | 12.79 | 3.28 | 8.22 | -14.98 | 246.06 | 33.28 | 236.36 | 0.6390 | -885.7 | -561.3 | |
| 0.00 | 1.15 | 0.00 | 0.76 | -18.01 | 246.12 | 33.35 | 232.47 | 0.6615 | -558.0 | -442.4 | |
| 19.49 | 29.80 | 12.45 | 19.05 | -15.26 | 245.44 | 32.66 | 235.49 | 0.6341 | -958.8 | -606.6 | |
| 0.00 | 1.15 | 0.00 | 0.73 | -14.83 | 245.33 | 32.55 | 235.98 | 0.6298 | -837.0 | -708.9 | |
| 0.00 | 1.85 | 0.00 | 1.16 | -13.68 | 244.41 | 31.64 | 236.82 | 0.6112 | -208.0 | -190.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
