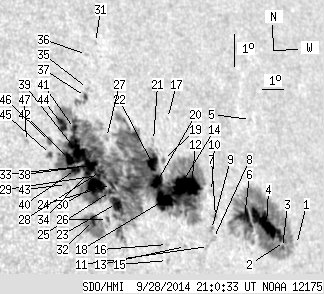

SDO HMI 2014-09-28 21:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 245.05 | 1229.08 | 182.95 | 917.18 | 15.24 | 261.29 | 48.51 | 284.45 | 0.7477 | -63.9 | -116.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-28 21:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.06 | 0.00 | 0.89 | 12.94 | 267.45 | 54.68 | 281.05 | 0.8125 | 216.0 | 177.3 | |
| 1.32 | 258.44 | 1.10 | 211.02 | 13.09 | 266.86 | 54.09 | 281.24 | 0.8066 | -404.0 | -271.4 | |
| 1.32 | -2.00 | 1.10 | -2.00 | 12.92 | 266.70 | 53.93 | 281.04 | 0.8049 | -542.5 | 999999 | |
| 38.71 | -2.00 | 31.73 | -2.00 | 13.68 | 266.11 | 53.34 | 282.01 | 0.7991 | -771.8 | 999999 | |
| 0.00 | 1.41 | 0.00 | 1.17 | 16.88 | 266.47 | 53.69 | 285.98 | 0.8044 | -547.0 | -422.8 | |
| 14.11 | -2.00 | 11.32 | -2.00 | 13.99 | 265.08 | 52.31 | 282.44 | 0.7886 | -927.3 | 999999 | |
| 0.44 | 2.12 | 0.34 | 1.65 | 14.15 | 263.68 | 50.91 | 282.73 | 0.7738 | -751.6 | -622.7 | |
| 0.00 | 3.00 | 0.00 | 2.32 | 13.50 | 263.38 | 50.61 | 281.90 | 0.7703 | -640.0 | -479.9 | |
| 0.00 | 2.56 | 0.00 | 1.98 | 13.78 | 263.37 | 50.59 | 282.27 | 0.7703 | -765.0 | -680.2 | |
| 0.00 | 2.29 | 0.00 | 1.79 | 14.91 | 263.73 | 50.95 | 283.71 | 0.7748 | 161.0 | 113.7 | |
| 0.00 | 0.79 | 0.00 | 0.61 | 13.29 | 263.08 | 50.30 | 281.64 | 0.7668 | 258.0 | 250.8 | |
| 20.28 | 877.52 | 15.55 | 639.19 | 15.15 | 262.82 | 50.05 | 284.09 | 0.7652 | -955.3 | -114.6 | |
| 0.00 | 1.23 | 0.00 | 0.93 | 13.38 | 262.00 | 49.23 | 281.82 | 0.7550 | 526.0 | 389.8 | |
| 18.52 | -12.00 | 14.04 | -12.00 | 15.20 | 262.26 | 49.48 | 284.21 | 0.7591 | -1266.6 | 999999 | |
| 0.00 | 1.32 | 0.00 | 0.98 | 13.04 | 261.06 | 48.29 | 281.42 | 0.7442 | 570.0 | 450.2 | |
| 0.00 | 1.23 | 0.00 | 0.91 | 13.52 | 261.19 | 48.41 | 282.05 | 0.7459 | 255.0 | 216.0 | |
| 0.00 | 0.26 | 0.00 | 0.20 | 17.28 | 262.40 | 49.62 | 286.93 | 0.7626 | -477.0 | -428.3 | |
| 18.16 | -12.00 | 13.53 | -12.00 | 14.85 | 261.38 | 48.61 | 283.82 | 0.7491 | 478.3 | 999999 | |
| 0.71 | 2.20 | 0.53 | 1.66 | 16.07 | 261.78 | 49.00 | 285.41 | 0.7546 | -561.4 | -432.2 | |
| 11.11 | -12.00 | 8.27 | -12.00 | 15.41 | 261.23 | 48.45 | 284.59 | 0.7479 | -1104.4 | 999999 | |
| 0.00 | 1.50 | 0.00 | 1.12 | 16.68 | 261.50 | 48.73 | 286.25 | 0.7523 | -593.0 | -457.3 | |
| 11.64 | -12.00 | 8.66 | -12.00 | 16.00 | 261.23 | 48.45 | 285.37 | 0.7484 | -1019.4 | 999999 | |
| 10.58 | -12.00 | 7.58 | -12.00 | 14.94 | 259.24 | 46.46 | 284.17 | 0.7247 | 813.8 | 999999 | |
| 3.35 | -12.00 | 2.40 | -12.00 | 15.53 | 259.18 | 46.41 | 284.98 | 0.7247 | 393.3 | 999999 | |
| 2.03 | -12.00 | 1.45 | -12.00 | 15.32 | 259.07 | 46.30 | 284.71 | 0.7233 | 724.4 | 999999 | |
| 0.62 | 42.59 | 0.44 | 29.91 | 14.50 | 258.71 | 45.94 | 283.61 | 0.7181 | 675.1 | 506.3 | |
| 0.00 | 3.09 | 0.00 | 2.22 | 16.96 | 259.40 | 46.62 | 286.92 | 0.7290 | -293.0 | -285.9 | |
| 2.12 | -12.00 | 1.51 | -12.00 | 15.96 | 258.81 | 46.04 | 285.63 | 0.7209 | 354.5 | 999999 | |
| 2.65 | -12.00 | 1.88 | -12.00 | 15.85 | 258.69 | 45.91 | 285.49 | 0.7194 | 595.6 | 999999 | |
| 20.72 | -12.00 | 14.67 | -12.00 | 15.56 | 258.47 | 45.69 | 285.12 | 0.7164 | 962.4 | 999999 | |
| 0.00 | 1.23 | 0.00 | 0.91 | 19.87 | 259.93 | 47.16 | 290.75 | 0.7397 | 411.0 | 397.0 | |
| 5.56 | -26.00 | 3.90 | -26.00 | 14.52 | 258.09 | 45.32 | 283.71 | 0.7108 | 988.3 | 999999 | |
| 10.58 | -12.00 | 7.49 | -12.00 | 16.18 | 258.42 | 45.65 | 285.99 | 0.7167 | 803.1 | 999999 | |
| 2.82 | -12.00 | 1.99 | -12.00 | 15.95 | 258.22 | 45.45 | 285.70 | 0.7141 | 966.5 | 999999 | |
| 0.00 | 1.59 | 0.00 | 1.14 | 18.51 | 259.05 | 46.28 | 289.09 | 0.7275 | 389.0 | 312.3 | |
| 0.00 | 1.15 | 0.00 | 0.83 | 19.54 | 259.38 | 46.61 | 290.42 | 0.7331 | 623.0 | 505.3 | |
| 1.41 | 9.70 | 1.01 | 6.93 | 18.27 | 258.87 | 46.10 | 288.80 | 0.7251 | 465.8 | 403.9 | |
| 1.41 | -12.00 | 0.99 | -12.00 | 16.17 | 258.11 | 45.34 | 286.03 | 0.7131 | 972.1 | 999999 | |
| 19.13 | -12.00 | 13.46 | -12.00 | 16.65 | 257.98 | 45.21 | 286.71 | 0.7123 | 834.9 | 999999 | |
| 5.20 | -12.00 | 3.64 | -12.00 | 16.11 | 257.74 | 44.96 | 286.00 | 0.7086 | 1015.5 | 999999 | |
| 3.62 | -12.00 | 2.55 | -12.00 | 17.35 | 258.07 | 45.30 | 287.67 | 0.7143 | 676.8 | 999999 | |
| 6.70 | -12.00 | 4.68 | -12.00 | 16.43 | 257.56 | 44.79 | 286.48 | 0.7070 | 1174.9 | 999999 | |
| 0.00 | 3.62 | 0.00 | 2.51 | 15.69 | 257.22 | 44.45 | 285.49 | 0.7019 | 686.0 | 638.2 | |
| 8.91 | -12.00 | 6.23 | -12.00 | 17.51 | 257.58 | 44.81 | 287.99 | 0.7090 | 819.0 | 999999 | |
| 1.32 | 3.44 | 0.91 | 2.37 | 16.65 | 256.79 | 44.02 | 286.92 | 0.6982 | 903.5 | 786.3 | |
| 0.00 | 4.06 | 0.00 | 2.80 | 17.05 | 256.86 | 44.09 | 287.47 | 0.6997 | 874.0 | 781.1 | |
| 0.00 | 1.68 | 0.00 | 1.14 | 17.12 | 255.89 | 43.11 | 287.77 | 0.6882 | 622.0 | 558.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
