SDO HMI 2014-09-28 22:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 36.86 | 125.12 | 32.13 | 112.73 | -9.77 | 266.30 | 54.08 | 253.18 | 0.8332 | 234.4 | 94.2 | |
|
previous
or next observation for the same group /

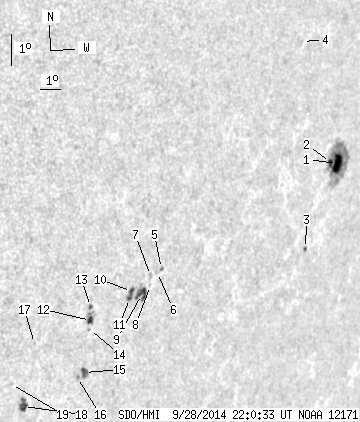

back to the solar disc SDO HMI 2014-09-28 22:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.43 | 67.37 | 12.37 | 67.00 | -8.20 | 270.61 | 58.39 | 256.43 | 0.8691 | 623.0 | 163.0 | |
| 2.20 | -1.00 | 2.16 | -1.00 | -8.13 | 270.19 | 57.97 | 256.41 | 0.8654 | 888.3 | 999999 | |
| 0.79 | 1.85 | 0.78 | 1.81 | -10.72 | 269.43 | 57.21 | 253.29 | 0.8645 | 223.4 | 159.8 | |
| 0.00 | 0.62 | 0.00 | 0.56 | -4.19 | 267.97 | 55.75 | 260.41 | 0.8382 | 422.0 | 385.1 | |
| 0.35 | 1.23 | 0.29 | 1.01 | -10.60 | 261.96 | 49.74 | 251.00 | 0.7955 | 506.0 | 365.8 | |
| 0.00 | 1.85 | 0.00 | 1.50 | -10.71 | 261.79 | 49.57 | 250.80 | 0.7942 | 188.0 | 232.0 | |
| 0.00 | 2.29 | 0.00 | 1.85 | -10.78 | 261.47 | 49.25 | 250.61 | 0.7912 | 531.0 | 398.0 | |
| 0.00 | 0.44 | 0.00 | 0.36 | -11.10 | 261.55 | 49.32 | 250.25 | 0.7930 | 386.0 | 321.2 | |
| 6.44 | 12.26 | 5.18 | 9.86 | -11.35 | 261.18 | 48.96 | 249.81 | 0.7902 | 606.9 | 497.6 | |
| 1.94 | 7.05 | 1.54 | 5.61 | -11.20 | 260.68 | 48.46 | 249.79 | 0.7847 | 778.0 | 611.7 | |
| 1.50 | -10.00 | 1.19 | -10.00 | -11.42 | 260.64 | 48.42 | 249.51 | 0.7850 | 696.2 | 999999 | |
| 3.09 | 8.82 | 2.39 | 6.81 | -11.96 | 258.98 | 46.76 | 248.17 | 0.7700 | -583.3 | -373.5 | |
| 0.71 | 2.29 | 0.54 | 1.76 | -11.51 | 258.88 | 46.66 | 248.68 | 0.7673 | -625.2 | -495.4 | |
| 0.00 | 1.15 | 0.00 | 0.89 | -12.25 | 259.00 | 46.78 | 247.83 | 0.7713 | -545.0 | -473.1 | |
| 3.35 | 6.44 | 2.63 | 5.05 | -13.62 | 259.11 | 46.89 | 246.21 | 0.7776 | -622.1 | -422.0 | |
| 0.00 | 1.50 | 0.00 | 1.17 | -13.75 | 258.82 | 46.60 | 245.92 | 0.7753 | -682.0 | -611.0 | |
| 0.00 | 0.62 | 0.00 | 0.46 | -12.48 | 256.62 | 44.40 | 246.47 | 0.7474 | -303.0 | -323.4 | |
| 4.06 | 8.55 | 3.06 | 6.44 | -14.48 | 256.61 | 44.39 | 243.99 | 0.7560 | -765.1 | -634.1 | |
| 0.00 | 0.79 | 0.00 | 0.59 | -13.71 | 255.91 | 43.69 | 244.58 | 0.7453 | -272.0 | -299.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
