SDO HMI 2014-09-28 22:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 98.66 | 341.69 | 67.44 | 235.61 | -16.54 | 249.82 | 37.60 | 237.35 | 0.6950 | -166.5 | -62.9 | |
|
previous
or next observation for the same group /

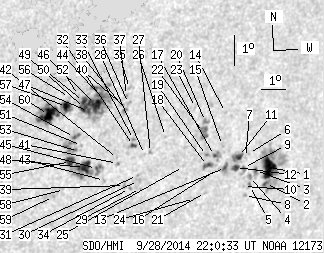

back to the solar disc SDO HMI 2014-09-28 22:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.34 | 65.87 | 13.75 | 49.45 | -17.68 | 254.72 | 42.50 | 239.11 | 0.7524 | 723.7 | 180.4 | |
| 1.50 | -1.00 | 1.13 | -1.00 | -18.20 | 254.75 | 42.53 | 238.50 | 0.7554 | 447.1 | 999999 | |
| 1.06 | 4.23 | 0.79 | 3.15 | -17.73 | 254.18 | 41.96 | 238.74 | 0.7473 | 766.1 | 560.9 | |
| 0.00 | 2.38 | 0.00 | 1.77 | -17.91 | 253.98 | 41.76 | 238.41 | 0.7463 | 728.0 | 675.3 | |
| 0.00 | 2.47 | 0.00 | 1.84 | -18.21 | 254.07 | 41.85 | 238.10 | 0.7488 | 635.0 | 517.5 | |
| 0.00 | 1.15 | 0.00 | 0.84 | -17.14 | 253.72 | 41.50 | 239.18 | 0.7396 | 309.0 | 303.4 | |
| 0.00 | 1.23 | 0.00 | 0.90 | -17.26 | 253.63 | 41.40 | 238.98 | 0.7393 | 590.0 | 522.8 | |
| 0.00 | 1.23 | 0.00 | 0.92 | -18.53 | 253.95 | 41.73 | 237.65 | 0.7493 | 595.0 | 530.3 | |
| 0.71 | 4.06 | 0.52 | 2.98 | -17.59 | 253.63 | 41.41 | 238.59 | 0.7411 | 766.8 | 579.5 | |
| 0.00 | 0.79 | 0.00 | 0.59 | -18.22 | 253.81 | 41.59 | 237.93 | 0.7464 | 471.0 | 424.8 | |
| 3.17 | 13.40 | 2.31 | 9.78 | -17.20 | 253.32 | 41.09 | 238.87 | 0.7359 | 921.6 | 716.9 | |
| 3.00 | -11.00 | 2.19 | -11.00 | -17.56 | 253.29 | 41.07 | 238.42 | 0.7375 | 719.7 | 999999 | |
| 2.03 | 5.64 | 1.47 | 4.10 | -17.52 | 252.86 | 40.64 | 238.20 | 0.7331 | 647.1 | 389.5 | |
| 0.00 | 1.15 | 0.00 | 0.81 | -15.70 | 252.40 | 40.17 | 240.17 | 0.7183 | 407.0 | 387.2 | |
| 0.00 | 1.76 | 0.00 | 1.27 | -16.78 | 252.54 | 40.32 | 238.92 | 0.7257 | 446.0 | 423.5 | |
| 0.00 | 0.62 | 0.00 | 0.45 | -17.53 | 252.57 | 40.35 | 238.02 | 0.7302 | 488.0 | 494.1 | |
| 0.88 | 6.26 | 0.63 | 4.49 | -17.08 | 252.29 | 40.07 | 238.39 | 0.7248 | 871.6 | 741.5 | |
| 2.73 | 5.91 | 1.96 | 4.23 | -17.39 | 252.08 | 39.86 | 237.88 | 0.7245 | 743.6 | 610.5 | |
| 0.00 | 1.68 | 0.00 | 1.19 | -17.06 | 251.95 | 39.73 | 238.21 | 0.7212 | 853.0 | 681.7 | |
| 0.00 | 3.44 | 0.00 | 2.42 | -15.93 | 251.63 | 39.41 | 239.42 | 0.7115 | 707.0 | 615.4 | |
| 0.00 | 1.41 | 0.00 | 1.02 | -18.29 | 252.24 | 40.02 | 236.89 | 0.7312 | 424.0 | 406.7 | |
| 0.00 | 9.70 | 0.00 | 6.84 | -16.28 | 251.64 | 39.42 | 238.97 | 0.7136 | 830.0 | 758.2 | |
| 0.00 | 0.79 | 0.00 | 0.55 | -15.43 | 251.12 | 38.90 | 239.72 | 0.7033 | 750.0 | 636.2 | |
| 0.00 | 0.88 | 0.00 | 0.64 | -18.45 | 251.83 | 39.61 | 236.44 | 0.7281 | 653.0 | 555.4 | |
| 0.00 | 0.88 | 0.00 | 0.62 | -17.34 | 251.09 | 38.87 | 237.31 | 0.7141 | -98.0 | 15.1 | |
| 0.00 | 0.71 | 0.00 | 0.49 | -16.29 | 250.11 | 37.89 | 237.98 | 0.6976 | -296.0 | -269.8 | |
| 0.00 | 1.59 | 0.00 | 1.09 | -16.77 | 249.63 | 37.41 | 237.05 | 0.6955 | -429.0 | -313.4 | |
| 0.00 | 0.26 | 0.00 | 0.18 | -16.82 | 249.40 | 37.18 | 236.83 | 0.6934 | -238.0 | -238.3 | |
| 0.00 | 0.71 | 0.00 | 0.49 | -17.94 | 249.51 | 37.29 | 235.51 | 0.7016 | -336.0 | -286.0 | |
| 0.00 | 2.65 | 0.00 | 1.83 | -17.67 | 249.36 | 37.14 | 235.75 | 0.6983 | -131.0 | -126.3 | |
| 0.00 | 0.44 | 0.00 | 0.30 | -17.50 | 249.28 | 37.06 | 235.91 | 0.6964 | -411.0 | -278.0 | |
| 1.32 | 2.82 | 0.90 | 1.92 | -16.49 | 248.89 | 36.67 | 236.90 | 0.6860 | -607.0 | -474.6 | |
| 0.00 | 1.50 | 0.00 | 1.02 | -16.29 | 248.85 | 36.63 | 237.12 | 0.6842 | -713.0 | -543.1 | |
| 0.00 | 1.23 | 0.00 | 0.85 | -17.91 | 249.07 | 36.84 | 235.25 | 0.6968 | -519.0 | -406.2 | |
| 0.00 | 1.85 | 0.00 | 1.23 | -14.61 | 248.35 | 36.13 | 238.96 | 0.6683 | -517.0 | -392.2 | |
| 0.00 | 2.03 | 0.00 | 1.35 | -15.09 | 248.41 | 36.19 | 238.36 | 0.6719 | -344.0 | -213.3 | |
| 0.00 | 0.88 | 0.00 | 0.59 | -14.83 | 248.28 | 36.06 | 238.62 | 0.6688 | -327.0 | -271.2 | |
| 0.00 | 1.59 | 0.00 | 1.06 | -15.28 | 248.33 | 36.11 | 238.06 | 0.6722 | -479.0 | -420.3 | |
| 0.00 | 2.38 | 0.00 | 1.63 | -17.79 | 248.84 | 36.62 | 235.23 | 0.6938 | -605.0 | -435.7 | |
| 0.00 | 1.85 | 0.00 | 1.23 | -15.11 | 248.14 | 35.92 | 238.15 | 0.6691 | -428.0 | -524.9 | |
| 0.00 | 1.23 | 0.00 | 0.84 | -17.04 | 248.39 | 36.17 | 235.85 | 0.6842 | -449.0 | -353.9 | |
| 0.00 | 0.44 | 0.00 | 0.30 | -16.87 | 248.35 | 36.13 | 236.03 | 0.6827 | -511.0 | -420.8 | |
| 0.00 | 1.68 | 0.00 | 1.13 | -17.57 | 248.00 | 35.78 | 234.91 | 0.6836 | -468.0 | -324.1 | |
| 3.26 | 67.99 | 2.14 | 44.56 | -14.75 | 247.27 | 35.05 | 238.00 | 0.6572 | -28.2 | -260.7 | |
| 0.79 | 6.61 | 0.53 | 4.44 | -17.14 | 247.60 | 35.38 | 235.14 | 0.6765 | -640.9 | -470.5 | |
| 13.58 | -44.00 | 8.90 | -44.00 | -15.03 | 247.13 | 34.91 | 237.53 | 0.6575 | -725.1 | 999999 | |
| 2.20 | -44.00 | 1.44 | -44.00 | -15.24 | 246.91 | 34.68 | 237.08 | 0.6563 | -648.5 | 999999 | |
| 10.49 | 53.17 | 6.99 | 35.21 | -17.07 | 247.12 | 34.90 | 234.87 | 0.6711 | -804.7 | -608.8 | |
| 3.88 | -44.00 | 2.53 | -44.00 | -15.13 | 246.73 | 34.51 | 237.10 | 0.6537 | -741.1 | 999999 | |
| 3.79 | -44.00 | 2.47 | -44.00 | -14.90 | 246.65 | 34.43 | 237.35 | 0.6513 | -899.1 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.76 | -16.34 | 246.85 | 34.63 | 235.61 | 0.6632 | -536.0 | -469.1 | |
| 0.00 | 0.97 | 0.00 | 0.63 | -14.69 | 246.43 | 34.21 | 237.46 | 0.6474 | -466.0 | -281.3 | |
| 0.00 | 1.68 | 0.00 | 1.11 | -16.53 | 246.78 | 34.56 | 235.31 | 0.6637 | -548.0 | -514.8 | |
| 0.71 | -48.00 | 0.46 | -48.00 | -16.06 | 246.53 | 34.31 | 235.73 | 0.6578 | -893.6 | 999999 | |
| 5.73 | -48.00 | 3.78 | -48.00 | -16.84 | 246.54 | 34.32 | 234.73 | 0.6632 | -829.4 | 999999 | |
| 0.00 | 0.26 | 0.00 | 0.17 | -14.73 | 246.10 | 33.88 | 237.15 | 0.6439 | -615.0 | -608.0 | |
| 5.29 | 45.33 | 3.42 | 29.18 | -15.02 | 246.03 | 33.81 | 236.72 | 0.6452 | -807.4 | -648.1 | |
| 0.00 | 0.53 | 0.00 | 0.35 | -17.75 | 246.50 | 34.28 | 233.54 | 0.6693 | -464.0 | -460.2 | |
| 0.00 | 1.23 | 0.00 | 0.82 | -17.95 | 246.13 | 33.90 | 232.99 | 0.6668 | -613.0 | -494.7 | |
| 14.20 | -57.00 | 9.13 | -57.00 | -15.23 | 245.40 | 33.18 | 235.94 | 0.6396 | -996.9 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
