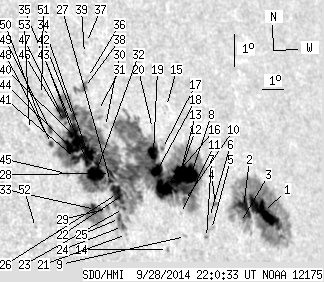

SDO HMI 2014-09-28 22:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 289.42 | 1198.04 | 216.68 | 903.21 | 15.22 | 261.22 | 49.00 | 284.36 | 0.7531 | 2.1 | -131.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-28 22:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 35.10 | 256.87 | 29.09 | 212.33 | 13.72 | 266.05 | 53.83 | 282.05 | 0.8041 | -759.9 | -264.0 | |
| 16.31 | -1.00 | 13.24 | -1.00 | 13.94 | 265.08 | 52.86 | 282.35 | 0.7942 | -903.4 | 999999 | |
| 0.00 | 1.32 | 0.00 | 1.07 | 13.51 | 264.78 | 52.56 | 281.82 | 0.7910 | -594.0 | -462.8 | |
| 0.62 | 2.12 | 0.49 | 1.67 | 14.16 | 263.73 | 51.50 | 282.70 | 0.7802 | -698.6 | -606.2 | |
| 0.00 | 3.62 | 0.00 | 2.82 | 13.43 | 263.30 | 51.08 | 281.79 | 0.7753 | -553.0 | -383.8 | |
| 0.00 | 2.56 | 0.00 | 2.00 | 13.80 | 263.31 | 51.09 | 282.26 | 0.7756 | -682.0 | -629.1 | |
| 0.00 | 1.50 | 0.00 | 1.16 | 13.21 | 262.99 | 50.77 | 281.52 | 0.7719 | 372.0 | 304.1 | |
| 20.28 | 853.69 | 15.71 | 627.55 | 15.13 | 262.80 | 50.58 | 284.02 | 0.7709 | -916.7 | -131.4 | |
| 0.00 | 1.23 | 0.00 | 0.94 | 13.33 | 262.01 | 49.79 | 281.73 | 0.7612 | 441.0 | 345.1 | |
| 2.20 | -8.00 | 1.69 | -8.00 | 14.41 | 262.28 | 50.06 | 283.12 | 0.7648 | -455.0 | 999999 | |
| 0.00 | 0.79 | 0.00 | 0.60 | 14.04 | 261.97 | 49.75 | 282.66 | 0.7612 | 92.0 | 89.2 | |
| 16.93 | -8.00 | 12.98 | -8.00 | 15.21 | 262.29 | 50.07 | 284.17 | 0.7655 | -1199.4 | 999999 | |
| 2.29 | -8.00 | 1.74 | -8.00 | 14.75 | 261.95 | 49.73 | 283.59 | 0.7614 | -53.7 | 999999 | |
| 0.00 | 1.68 | 0.00 | 1.25 | 13.02 | 261.06 | 48.84 | 281.36 | 0.7505 | 536.0 | 454.5 | |
| 0.00 | 0.26 | 0.00 | 0.20 | 17.30 | 262.39 | 50.17 | 286.88 | 0.7685 | -424.0 | -396.0 | |
| 30.07 | -8.00 | 22.69 | -8.00 | 14.91 | 261.52 | 49.30 | 283.84 | 0.7568 | -48.5 | 999999 | |
| 0.71 | 2.91 | 0.54 | 2.21 | 16.06 | 261.75 | 49.53 | 285.33 | 0.7603 | -526.5 | -329.3 | |
| 13.58 | -8.00 | 10.21 | -8.00 | 15.39 | 261.24 | 49.02 | 284.51 | 0.7541 | -1079.6 | 999999 | |
| 11.64 | -8.00 | 8.76 | -8.00 | 15.97 | 261.29 | 49.07 | 285.27 | 0.7552 | -961.8 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.80 | 16.70 | 261.49 | 49.27 | 286.20 | 0.7581 | -463.0 | -414.7 | |
| 0.00 | 0.88 | 0.00 | 0.64 | 13.63 | 259.33 | 47.11 | 282.30 | 0.7310 | 554.0 | 433.0 | |
| 0.26 | -8.00 | 0.19 | -8.00 | 14.86 | 259.58 | 47.36 | 283.96 | 0.7349 | 304.0 | 999999 | |
| 0.97 | -8.00 | 0.70 | -8.00 | 14.42 | 259.40 | 47.18 | 283.38 | 0.7326 | 539.3 | 999999 | |
| 1.59 | -8.00 | 1.15 | -8.00 | 13.88 | 259.21 | 46.99 | 282.66 | 0.7299 | 682.2 | 999999 | |
| 2.29 | -8.00 | 1.65 | -8.00 | 14.14 | 259.14 | 46.92 | 283.01 | 0.7293 | 682.0 | 999999 | |
| 14.90 | -8.00 | 10.79 | -8.00 | 14.89 | 259.26 | 47.04 | 284.03 | 0.7314 | 748.6 | 999999 | |
| 2.03 | -8.00 | 1.46 | -8.00 | 15.28 | 259.06 | 46.83 | 284.59 | 0.7294 | 698.2 | 999999 | |
| 3.79 | -8.00 | 2.74 | -8.00 | 15.52 | 259.13 | 46.91 | 284.91 | 0.7304 | 380.4 | 999999 | |
| 0.00 | 3.53 | 0.00 | 2.53 | 14.48 | 258.69 | 46.47 | 283.53 | 0.7244 | 668.0 | 520.7 | |
| 0.00 | 2.03 | 0.00 | 1.48 | 16.95 | 259.35 | 47.13 | 286.82 | 0.7347 | -218.0 | -216.5 | |
| 0.00 | 2.47 | 0.00 | 1.79 | 17.45 | 259.19 | 46.97 | 287.54 | 0.7337 | -167.0 | -150.5 | |
| 21.52 | -8.00 | 15.37 | -8.00 | 15.57 | 258.46 | 46.24 | 285.07 | 0.7228 | 909.1 | 999999 | |
| 6.44 | 33.33 | 4.57 | 23.60 | 14.50 | 258.16 | 45.94 | 283.61 | 0.7181 | 934.4 | 531.9 | |
| 19.05 | -8.00 | 13.58 | -8.00 | 16.23 | 258.30 | 46.08 | 286.00 | 0.7217 | 788.3 | 999999 | |
| 4.14 | -8.00 | 2.95 | -8.00 | 15.93 | 258.21 | 45.98 | 285.60 | 0.7203 | 961.7 | 999999 | |
| 0.00 | 1.59 | 0.00 | 1.15 | 18.49 | 259.05 | 46.83 | 288.97 | 0.7336 | 347.0 | 233.8 | |
| 0.00 | 1.06 | 0.00 | 0.78 | 19.55 | 259.40 | 47.17 | 290.33 | 0.7394 | 620.0 | 540.9 | |
| 1.85 | 9.96 | 1.34 | 7.18 | 18.20 | 258.80 | 46.58 | 288.62 | 0.7304 | 440.4 | 391.8 | |
| 0.00 | 0.53 | 0.00 | 0.39 | 19.23 | 259.18 | 46.96 | 289.94 | 0.7364 | 522.0 | 392.5 | |
| 15.17 | -8.00 | 10.78 | -8.00 | 16.63 | 258.01 | 45.79 | 286.59 | 0.7190 | 757.7 | 999999 | |
| 6.53 | -8.00 | 4.61 | -8.00 | 16.10 | 257.71 | 45.49 | 285.90 | 0.7148 | 977.3 | 999999 | |
| 4.50 | -8.00 | 3.20 | -8.00 | 17.37 | 258.02 | 45.80 | 287.61 | 0.7202 | 671.7 | 999999 | |
| 11.29 | -8.00 | 8.00 | -8.00 | 16.92 | 257.83 | 45.61 | 287.03 | 0.7173 | 774.9 | 999999 | |
| 11.02 | -8.00 | 7.77 | -8.00 | 16.45 | 257.60 | 45.37 | 286.40 | 0.7139 | 1089.4 | 999999 | |
| 0.00 | 2.82 | 0.00 | 1.97 | 15.68 | 257.19 | 44.97 | 285.39 | 0.7081 | 755.0 | 721.5 | |
| 0.62 | -8.00 | 0.44 | -8.00 | 17.22 | 257.61 | 45.39 | 287.47 | 0.7152 | 889.4 | 999999 | |
| 8.02 | -8.00 | 5.67 | -8.00 | 17.50 | 257.52 | 45.30 | 287.89 | 0.7147 | 840.6 | 999999 | |
| 1.59 | 2.73 | 1.10 | 1.90 | 16.64 | 256.81 | 44.59 | 286.80 | 0.7049 | 913.4 | 771.2 | |
| 2.12 | 4.06 | 1.48 | 2.83 | 17.06 | 256.89 | 44.67 | 287.38 | 0.7066 | 808.0 | 648.2 | |
| 0.00 | 0.97 | 0.00 | 0.67 | 16.86 | 256.65 | 44.43 | 287.15 | 0.7035 | 701.0 | 632.9 | |
| 0.00 | 1.15 | 0.00 | 0.80 | 18.15 | 256.84 | 44.61 | 288.92 | 0.7078 | 533.0 | 429.3 | |
| 0.00 | 0.88 | 0.00 | 0.60 | 14.17 | 255.45 | 43.23 | 283.46 | 0.6852 | 599.0 | 477.0 | |
| 0.00 | 0.44 | 0.00 | 0.30 | 17.13 | 255.99 | 43.77 | 287.66 | 0.6960 | 742.0 | 642.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
