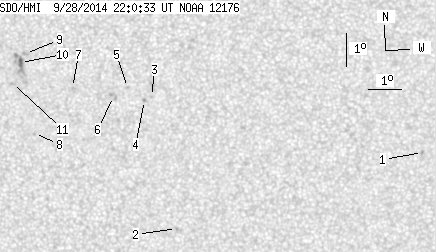

SDO HMI 2014-09-28 22:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.94 | 27.69 | 0.97 | 13.77 | 7.76 | 208.48 | -3.74 | 88.34 | 0.0830 | -37.8 | 286.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-28 22:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.59 | 0.00 | 0.79 | 5.69 | 218.95 | 6.73 | 260.65 | 0.1187 | 877.0 | 590.1 | |
| 0.00 | 0.97 | 0.00 | 0.48 | 3.46 | 211.51 | -0.71 | 168.18 | 0.0604 | -872.0 | -644.4 | |
| 0.00 | 1.06 | 0.00 | 0.52 | 7.42 | 210.76 | -1.46 | 67.83 | 0.0275 | -793.0 | -648.0 | |
| 0.00 | 1.23 | 0.00 | 0.61 | 7.30 | 210.55 | -1.68 | 74.16 | 0.0303 | -1035.0 | -845.7 | |
| 0.00 | 1.15 | 0.00 | 0.57 | 7.69 | 210.03 | -2.19 | 68.34 | 0.0410 | -912.0 | -747.0 | |
| 0.00 | 3.35 | 0.00 | 1.66 | 7.42 | 209.61 | -2.61 | 77.12 | 0.0466 | -650.0 | -842.6 | |
| 0.00 | 0.62 | 0.00 | 0.31 | 7.68 | 208.36 | -3.86 | 77.26 | 0.0687 | -790.0 | -620.7 | |
| 0.00 | 0.88 | 0.00 | 0.44 | 6.29 | 207.22 | -5.00 | 95.92 | 0.0875 | 811.0 | 647.3 | |
| 0.00 | 2.38 | 0.00 | 1.19 | 8.69 | 206.92 | -5.30 | 70.17 | 0.0975 | 762.0 | 630.8 | |
| 1.94 | 12.96 | 0.97 | 6.45 | 8.42 | 206.77 | -5.45 | 73.28 | 0.0985 | 1272.2 | 875.5 | |
| 0.00 | 1.50 | 0.00 | 0.75 | 7.79 | 206.54 | -5.68 | 80.05 | 0.1001 | 953.0 | 740.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
