SDO HMI 2014-09-28 22:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.53 | 8.74 | 0.46 | 6.99 | -11.46 | 163.69 | -48.53 | 110.64 | 0.7855 | 299.3 | 331.9 | |
|
previous
or next observation for the same group /

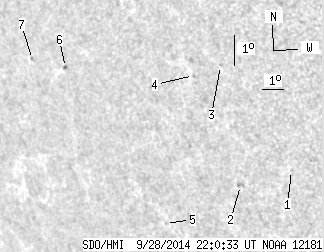

back to the solar disc SDO HMI 2014-09-28 22:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.62 | 0.00 | 0.45 | -12.46 | 169.44 | -42.78 | 114.30 | 0.7300 | 565.0 | 503.4 | |
| 0.00 | 2.82 | 0.00 | 2.13 | -13.13 | 167.10 | -45.12 | 114.01 | 0.7577 | 591.0 | 488.9 | |
| 0.00 | 0.62 | 0.00 | 0.46 | -9.37 | 166.99 | -45.23 | 109.23 | 0.7442 | 590.0 | 478.9 | |
| 0.00 | 1.06 | 0.00 | 0.80 | -9.79 | 165.73 | -46.49 | 109.25 | 0.7593 | 537.0 | 473.3 | |
| 0.00 | 0.71 | 0.00 | 0.58 | -14.69 | 163.26 | -48.96 | 114.16 | 0.8019 | 304.0 | 269.4 | |
| 0.53 | 1.41 | 0.46 | 1.22 | -10.11 | 159.62 | -52.60 | 107.42 | 0.8219 | -539.7 | -409.8 | |
| 0.00 | 1.50 | 0.00 | 1.35 | -10.02 | 157.94 | -54.28 | 106.79 | 0.8373 | 434.0 | 339.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
