SDO HMI 2014-09-28 23:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 301.65 | 1170.72 | 227.87 | 892.11 | 15.21 | 261.24 | 49.58 | 284.30 | 0.7594 | -9.6 | -124.6 | |
|
previous
or next observation for the same group /

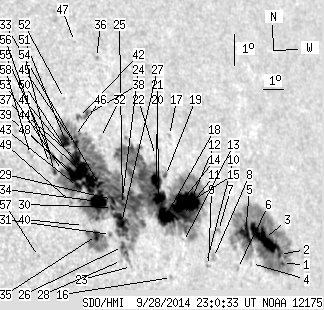

back to the solar disc SDO HMI 2014-09-28 23:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.32 | 250.90 | 1.13 | 210.06 | 12.90 | 266.72 | 55.05 | 281.00 | 0.8161 | -513.3 | -270.8 | |
| 1.41 | -1.00 | 1.20 | -1.00 | 13.19 | 266.65 | 54.98 | 281.35 | 0.8155 | -480.8 | 999999 | |
| 32.81 | -1.00 | 27.52 | -1.00 | 13.74 | 266.03 | 54.36 | 282.04 | 0.8094 | -723.8 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.94 | 13.06 | 265.12 | 53.45 | 281.22 | 0.8001 | -520.0 | -445.6 | |
| 13.32 | -1.00 | 10.95 | -1.00 | 13.98 | 265.11 | 53.44 | 282.38 | 0.8002 | -893.2 | 999999 | |
| 0.00 | 2.12 | 0.00 | 1.71 | 12.97 | 264.37 | 52.70 | 281.14 | 0.7923 | -431.0 | -438.7 | |
| 0.00 | 1.59 | 0.00 | 1.27 | 14.19 | 263.79 | 52.12 | 282.71 | 0.7867 | -750.0 | -643.5 | |
| 0.00 | 4.32 | 0.00 | 3.41 | 13.41 | 263.29 | 51.62 | 281.74 | 0.7811 | -617.0 | -455.5 | |
| 0.00 | 1.59 | 0.00 | 1.24 | 13.20 | 262.98 | 51.31 | 281.47 | 0.7777 | 276.0 | 265.9 | |
| 0.00 | 1.41 | 0.00 | 1.11 | 13.29 | 262.91 | 51.24 | 281.60 | 0.7770 | 283.0 | 217.0 | |
| 21.17 | 840.55 | 16.57 | 624.16 | 15.14 | 262.80 | 51.13 | 284.00 | 0.7768 | -884.3 | -118.4 | |
| 9.35 | -11.00 | 7.24 | -11.00 | 14.79 | 262.29 | 50.62 | 283.58 | 0.7711 | -888.5 | 999999 | |
| 0.00 | 0.44 | 0.00 | 0.34 | 14.02 | 261.99 | 50.33 | 282.60 | 0.7675 | 12.0 | 42.2 | |
| 14.20 | -11.00 | 11.00 | -11.00 | 15.22 | 262.28 | 50.61 | 284.14 | 0.7713 | -1128.7 | 999999 | |
| 4.14 | -11.00 | 3.19 | -11.00 | 15.00 | 262.01 | 50.34 | 283.87 | 0.7683 | -1458.0 | 999999 | |
| 0.00 | 1.50 | 0.00 | 1.13 | 13.00 | 261.12 | 49.45 | 281.30 | 0.7573 | 515.0 | 397.2 | |
| 0.00 | 1.50 | 0.00 | 1.17 | 17.25 | 262.41 | 50.74 | 286.75 | 0.7745 | -415.0 | -343.8 | |
| 31.22 | -11.00 | 23.79 | -11.00 | 14.90 | 261.44 | 49.77 | 283.79 | 0.7620 | -60.2 | 999999 | |
| 1.15 | -11.00 | 0.88 | -11.00 | 16.07 | 261.78 | 50.11 | 285.28 | 0.7667 | -436.8 | 999999 | |
| 12.96 | -11.00 | 9.85 | -11.00 | 15.41 | 261.22 | 49.55 | 284.48 | 0.7600 | -1097.3 | 999999 | |
| 11.73 | -11.00 | 8.92 | -11.00 | 15.93 | 261.30 | 49.63 | 285.15 | 0.7613 | -918.1 | 999999 | |
| 0.00 | 0.53 | 0.00 | 0.41 | 16.71 | 261.52 | 49.85 | 286.15 | 0.7645 | -484.0 | -399.0 | |
| 0.00 | 0.97 | 0.00 | 0.71 | 13.49 | 259.38 | 47.71 | 282.06 | 0.7379 | 449.0 | 329.4 | |
| 1.50 | -11.00 | 1.10 | -11.00 | 15.59 | 259.57 | 47.90 | 284.89 | 0.7418 | -55.4 | 999999 | |
| 1.50 | -11.00 | 1.10 | -11.00 | 15.38 | 259.50 | 47.83 | 284.61 | 0.7409 | -187.6 | 999999 | |
| 2.38 | -11.00 | 1.74 | -11.00 | 14.12 | 259.14 | 47.47 | 282.94 | 0.7356 | 688.6 | 999999 | |
| 15.79 | -11.00 | 11.54 | -11.00 | 14.84 | 259.30 | 47.63 | 283.91 | 0.7380 | 707.4 | 999999 | |
| 0.00 | 0.62 | 0.00 | 0.45 | 13.71 | 258.98 | 47.31 | 282.39 | 0.7334 | 408.0 | 439.3 | |
| 3.44 | -11.00 | 2.51 | -11.00 | 15.57 | 259.10 | 47.43 | 284.91 | 0.7364 | 366.4 | 999999 | |
| 1.50 | -11.00 | 1.09 | -11.00 | 15.33 | 259.02 | 47.35 | 284.59 | 0.7354 | 649.2 | 999999 | |
| 0.00 | 1.85 | 0.00 | 1.34 | 14.53 | 258.70 | 47.03 | 283.54 | 0.7309 | 699.0 | 588.7 | |
| 0.00 | 1.76 | 0.00 | 1.29 | 17.47 | 259.16 | 47.49 | 287.48 | 0.7395 | -187.0 | -150.1 | |
| 3.53 | -11.00 | 2.55 | -11.00 | 16.07 | 258.65 | 46.98 | 285.65 | 0.7319 | 441.5 | 999999 | |
| 22.93 | -11.00 | 16.54 | -11.00 | 15.56 | 258.45 | 46.78 | 284.98 | 0.7291 | 895.0 | 999999 | |
| 5.12 | 32.98 | 3.66 | 23.57 | 14.55 | 258.07 | 46.40 | 283.63 | 0.7236 | 980.4 | 546.8 | |
| 0.00 | 1.23 | 0.00 | 0.92 | 19.90 | 259.89 | 48.22 | 290.59 | 0.7513 | 472.0 | 445.9 | |
| 19.14 | -11.00 | 13.78 | -11.00 | 16.19 | 258.28 | 46.61 | 285.87 | 0.7278 | 773.8 | 999999 | |
| 1.68 | 8.73 | 1.22 | 6.35 | 18.22 | 258.77 | 47.10 | 288.55 | 0.7363 | 432.8 | 371.8 | |
| 2.38 | -11.00 | 1.70 | -11.00 | 16.15 | 257.99 | 46.32 | 285.86 | 0.7245 | 911.8 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.69 | 14.90 | 257.58 | 45.91 | 284.17 | 0.7182 | 382.0 | 345.8 | |
| 15.70 | -11.00 | 11.26 | -11.00 | 16.58 | 258.03 | 46.36 | 286.44 | 0.7255 | 692.9 | 999999 | |
| 0.97 | -38.00 | 0.70 | -38.00 | 18.16 | 258.38 | 46.71 | 288.54 | 0.7318 | 538.1 | 999999 | |
| 7.06 | -11.00 | 5.02 | -11.00 | 16.09 | 257.65 | 45.99 | 285.82 | 0.7205 | 1001.7 | 999999 | |
| 12.70 | -11.00 | 9.09 | -11.00 | 16.94 | 257.83 | 46.16 | 286.96 | 0.7237 | 755.2 | 999999 | |
| 3.79 | -11.00 | 2.72 | -11.00 | 17.36 | 257.96 | 46.30 | 287.52 | 0.7259 | 662.0 | 999999 | |
| 0.97 | -11.00 | 0.70 | -11.00 | 17.60 | 258.00 | 46.33 | 287.85 | 0.7266 | 466.8 | 999999 | |
| 0.00 | 0.44 | 0.00 | 0.33 | 20.47 | 259.07 | 47.40 | 291.52 | 0.7436 | 448.0 | 393.6 | |
| 11.99 | -11.00 | 8.53 | -11.00 | 16.44 | 257.53 | 45.87 | 286.32 | 0.7196 | 1094.2 | 999999 | |
| 0.00 | 1.23 | 0.00 | 0.87 | 15.63 | 257.25 | 45.58 | 285.24 | 0.7152 | 794.0 | 748.6 | |
| 0.62 | -11.00 | 0.44 | -11.00 | 17.21 | 257.55 | 45.88 | 287.38 | 0.7209 | 903.0 | 999999 | |
| 8.29 | -11.00 | 5.91 | -11.00 | 17.52 | 257.56 | 45.89 | 287.80 | 0.7215 | 832.3 | 999999 | |
| 0.00 | 0.79 | 0.00 | 0.57 | 18.79 | 257.95 | 46.28 | 289.47 | 0.7281 | 486.0 | 449.1 | |
| 0.71 | -11.00 | 0.50 | -11.00 | 16.63 | 257.14 | 45.47 | 286.64 | 0.7153 | 894.1 | 999999 | |
| 1.68 | 3.70 | 1.18 | 2.60 | 16.59 | 256.77 | 45.11 | 286.65 | 0.7110 | 831.4 | 712.2 | |
| 1.50 | 3.88 | 1.05 | 2.73 | 17.05 | 256.83 | 45.16 | 287.29 | 0.7123 | 811.1 | 644.4 | |
| 0.00 | 0.71 | 0.00 | 0.49 | 16.88 | 256.64 | 44.97 | 287.08 | 0.7098 | 547.0 | 551.5 | |
| 0.00 | 1.06 | 0.00 | 0.72 | 14.13 | 255.40 | 43.73 | 283.34 | 0.6913 | 496.0 | 426.6 | |
| 0.00 | 2.20 | 0.00 | 1.53 | 17.22 | 255.90 | 44.23 | 287.69 | 0.7017 | 626.0 | 594.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
