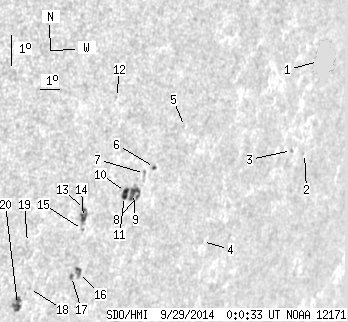

SDO HMI 2014-09-29 00:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.23 | 116.76 | 18.42 | 107.71 | -9.86 | 265.89 | 54.77 | 253.29 | 0.8398 | 43.7 | 107.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-29 00:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.73 | 60.86 | 2.78 | 62.46 | -8.12 | 270.20 | 59.08 | 256.70 | 0.8747 | 844.9 | 212.9 | |
| 0.00 | 0.62 | 0.00 | 0.64 | -10.98 | 270.17 | 59.05 | 253.52 | 0.8799 | -412.0 | -327.9 | |
| 0.00 | 1.23 | 0.00 | 1.25 | -10.80 | 269.34 | 58.22 | 253.49 | 0.8729 | 320.0 | 270.4 | |
| 0.00 | 0.71 | 0.00 | 0.65 | -13.23 | 265.17 | 54.05 | 249.47 | 0.8436 | 236.0 | 253.1 | |
| 0.00 | 0.44 | 0.00 | 0.38 | -9.43 | 263.23 | 52.11 | 253.22 | 0.8153 | -459.0 | -403.2 | |
| 0.62 | 1.41 | 0.52 | 1.18 | -10.59 | 262.01 | 50.89 | 251.43 | 0.8068 | 317.7 | 273.6 | |
| 0.00 | 1.85 | 0.00 | 1.53 | -10.73 | 261.56 | 50.44 | 251.10 | 0.8028 | 561.0 | 429.6 | |
| 0.62 | 19.05 | 0.51 | 15.65 | -11.44 | 261.38 | 50.27 | 250.20 | 0.8034 | 416.0 | 461.2 | |
| 4.94 | -8.00 | 4.07 | -8.00 | -11.32 | 261.16 | 50.05 | 250.25 | 0.8008 | 629.1 | 999999 | |
| 2.38 | -8.00 | 1.94 | -8.00 | -11.22 | 260.76 | 49.64 | 250.22 | 0.7965 | 720.8 | 999999 | |
| 2.03 | -8.00 | 1.66 | -8.00 | -11.38 | 260.75 | 49.63 | 250.03 | 0.7969 | 693.3 | 999999 | |
| 0.00 | 0.53 | 0.00 | 0.41 | -8.20 | 259.74 | 48.62 | 253.54 | 0.7767 | 475.0 | 412.8 | |
| 0.62 | 8.64 | 0.49 | 6.82 | -11.62 | 258.93 | 47.82 | 249.03 | 0.7796 | -621.7 | -444.9 | |
| 3.09 | -13.00 | 2.44 | -13.00 | -11.87 | 258.95 | 47.83 | 248.73 | 0.7806 | -608.7 | 999999 | |
| 0.00 | 1.23 | 0.00 | 0.98 | -12.25 | 258.99 | 47.87 | 248.28 | 0.7824 | -429.0 | -354.3 | |
| 0.00 | 5.56 | 0.00 | 4.46 | -13.63 | 259.16 | 48.04 | 246.70 | 0.7891 | -564.0 | -491.2 | |
| 0.53 | 2.29 | 0.42 | 1.83 | -13.73 | 258.86 | 47.74 | 246.45 | 0.7866 | -546.0 | -476.5 | |
| 0.00 | 1.23 | 0.00 | 0.95 | -13.94 | 257.01 | 45.89 | 245.36 | 0.7689 | -168.0 | -212.6 | |
| 0.00 | 0.97 | 0.00 | 0.73 | -12.44 | 256.56 | 45.44 | 246.99 | 0.7582 | -342.0 | -250.4 | |
| 4.67 | 10.14 | 3.59 | 7.79 | -14.42 | 256.60 | 45.48 | 244.59 | 0.7668 | -706.9 | -561.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
