SDO HMI 2014-09-29 01:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 96.40 | 323.78 | 67.53 | 229.39 | -16.61 | 250.04 | 39.47 | 238.49 | 0.7146 | -145.7 | -39.4 | |
|
previous
or next observation for the same group /

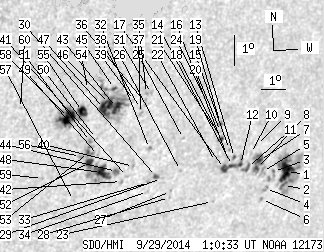

back to the solar disc SDO HMI 2014-09-29 01:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.73 | 66.78 | 11.40 | 51.78 | -17.75 | 254.93 | 44.36 | 240.05 | 0.7708 | 674.5 | 154.2 | |
| 2.38 | -1.00 | 1.85 | -1.00 | -18.21 | 254.94 | 44.37 | 239.52 | 0.7731 | 416.6 | 999999 | |
| 0.44 | 5.91 | 0.34 | 4.53 | -17.70 | 254.34 | 43.77 | 239.80 | 0.7648 | 737.4 | 567.6 | |
| 0.00 | 2.65 | 0.00 | 2.03 | -18.24 | 254.15 | 43.59 | 239.06 | 0.7658 | 603.0 | 522.6 | |
| 0.00 | 4.85 | 0.00 | 3.68 | -17.65 | 253.84 | 43.28 | 239.58 | 0.7598 | 781.0 | 508.5 | |
| 0.00 | 1.68 | 0.00 | 1.29 | -18.59 | 254.09 | 43.52 | 238.61 | 0.7669 | 519.0 | 462.5 | |
| 2.73 | 15.97 | 2.06 | 12.02 | -17.27 | 253.60 | 43.03 | 239.90 | 0.7556 | 885.2 | 638.7 | |
| 2.29 | -7.00 | 1.73 | -7.00 | -17.53 | 253.55 | 42.98 | 239.56 | 0.7563 | 741.8 | 999999 | |
| 0.00 | 0.71 | 0.00 | 0.53 | -16.73 | 253.32 | 42.75 | 240.39 | 0.7500 | 649.0 | 578.0 | |
| 0.00 | 1.59 | 0.00 | 1.18 | -17.01 | 253.14 | 42.57 | 239.96 | 0.7496 | 384.0 | 467.6 | |
| 1.85 | 4.94 | 1.39 | 3.69 | -17.46 | 253.14 | 42.57 | 239.41 | 0.7520 | 642.0 | 528.0 | |
| 1.23 | 15.61 | 0.92 | 11.53 | -17.34 | 252.80 | 42.24 | 239.37 | 0.7480 | 766.9 | 609.1 | |
| 0.79 | 1.94 | 0.59 | 1.43 | -17.08 | 252.48 | 41.91 | 239.49 | 0.7434 | 778.9 | 698.6 | |
| 2.21 | -12.00 | 1.63 | -12.00 | -17.34 | 252.46 | 41.90 | 239.17 | 0.7446 | 689.3 | 999999 | |
| 0.00 | 0.79 | 0.00 | 0.58 | -16.80 | 252.19 | 41.62 | 239.67 | 0.7390 | 650.0 | 621.3 | |
| 0.00 | 1.15 | 0.00 | 0.84 | -17.02 | 252.16 | 41.60 | 239.38 | 0.7400 | 702.0 | 646.5 | |
| 3.88 | -12.00 | 2.86 | -12.00 | -17.41 | 252.15 | 41.58 | 238.90 | 0.7418 | 763.6 | 999999 | |
| 1.50 | 3.09 | 1.09 | 2.24 | -16.43 | 251.76 | 41.19 | 239.86 | 0.7327 | 726.5 | 679.5 | |
| 0.00 | 1.76 | 0.00 | 1.27 | -15.90 | 251.58 | 41.01 | 240.41 | 0.7281 | 695.0 | 692.3 | |
| 0.00 | 0.88 | 0.00 | 0.64 | -16.17 | 251.65 | 41.08 | 240.13 | 0.7301 | 750.0 | 677.0 | |
| 0.00 | 1.06 | 0.00 | 0.76 | -16.12 | 251.47 | 40.90 | 240.08 | 0.7281 | 845.0 | 707.5 | |
| 0.00 | 1.06 | 0.00 | 0.77 | -17.14 | 251.69 | 41.13 | 238.96 | 0.7359 | 282.0 | 257.4 | |
| 0.00 | 0.79 | 0.00 | 0.59 | -18.48 | 251.94 | 41.38 | 237.51 | 0.7456 | 360.0 | 407.1 | |
| 0.00 | 1.15 | 0.00 | 0.81 | -14.96 | 250.70 | 40.13 | 241.07 | 0.7138 | 634.0 | 586.6 | |
| 0.00 | 1.06 | 0.00 | 0.75 | -16.27 | 250.15 | 39.58 | 239.09 | 0.7152 | -370.0 | -277.6 | |
| 0.00 | 1.15 | 0.00 | 0.82 | -17.32 | 250.29 | 39.72 | 237.88 | 0.7226 | -229.0 | -233.0 | |
| 0.00 | 0.44 | 0.00 | 0.32 | -17.99 | 250.06 | 39.49 | 236.92 | 0.7241 | -320.0 | -282.2 | |
| 0.00 | 0.88 | 0.00 | 0.63 | -18.19 | 250.07 | 39.50 | 236.69 | 0.7254 | -285.0 | -261.2 | |
| 0.00 | 1.68 | 0.00 | 1.19 | -17.53 | 249.57 | 39.00 | 237.17 | 0.7164 | 193.0 | 104.2 | |
| 1.23 | 2.56 | 0.87 | 1.80 | -17.44 | 249.34 | 38.77 | 237.13 | 0.7137 | -526.9 | -400.9 | |
| 0.00 | 0.88 | 0.00 | 0.60 | -14.69 | 248.51 | 37.95 | 240.07 | 0.6887 | -336.0 | -279.0 | |
| 0.00 | 1.68 | 0.00 | 1.16 | -16.49 | 248.83 | 38.26 | 237.98 | 0.7027 | -529.0 | -451.7 | |
| 0.00 | 1.59 | 0.00 | 1.12 | -17.62 | 249.06 | 38.49 | 236.73 | 0.7119 | -661.0 | -483.7 | |
| 0.00 | 1.15 | 0.00 | 0.81 | -17.92 | 249.10 | 38.53 | 236.39 | 0.7140 | -383.0 | -297.9 | |
| 0.00 | 1.15 | 0.00 | 0.78 | -14.67 | 248.31 | 37.75 | 239.96 | 0.6864 | -468.0 | -389.1 | |
| 0.00 | 2.56 | 0.00 | 1.74 | -14.96 | 248.33 | 37.77 | 239.60 | 0.6883 | -168.0 | -230.6 | |
| 0.00 | 2.12 | 0.00 | 1.44 | -15.31 | 248.21 | 37.64 | 239.07 | 0.6890 | -516.0 | -389.4 | |
| 0.00 | 0.88 | 0.00 | 0.60 | -15.15 | 248.17 | 37.61 | 239.26 | 0.6877 | -571.0 | -505.1 | |
| 0.00 | 0.53 | 0.00 | 0.36 | -14.87 | 247.88 | 37.31 | 239.43 | 0.6828 | -354.0 | -269.8 | |
| 0.00 | 1.32 | 0.00 | 0.92 | -17.04 | 248.32 | 37.75 | 236.96 | 0.7006 | -510.0 | -366.7 | |
| 0.00 | 0.97 | 0.00 | 0.67 | -17.35 | 248.15 | 37.59 | 236.45 | 0.7009 | -451.0 | -396.8 | |
| 0.00 | 1.50 | 0.00 | 1.04 | -17.50 | 247.95 | 37.38 | 236.13 | 0.6997 | -292.0 | -283.4 | |
| 7.15 | 63.51 | 4.79 | 42.45 | -15.04 | 247.21 | 36.65 | 238.75 | 0.6766 | -628.6 | -244.1 | |
| 1.41 | 3.88 | 0.97 | 2.67 | -17.15 | 247.67 | 37.10 | 236.37 | 0.6946 | -626.8 | -474.2 | |
| 1.15 | -43.00 | 0.76 | -43.00 | -14.41 | 247.01 | 36.45 | 239.43 | 0.6705 | -495.9 | 999999 | |
| 5.38 | -43.00 | 3.59 | -43.00 | -14.89 | 246.91 | 36.34 | 238.74 | 0.6723 | -701.7 | 999999 | |
| 8.47 | -43.00 | 5.64 | -43.00 | -15.04 | 246.75 | 36.18 | 238.43 | 0.6714 | -760.3 | 999999 | |
| 11.82 | 46.05 | 8.05 | 31.19 | -17.14 | 247.08 | 36.51 | 235.97 | 0.6883 | -767.3 | -525.1 | |
| 0.00 | 0.97 | 0.00 | 0.66 | -16.56 | 246.83 | 36.26 | 236.52 | 0.6820 | -627.0 | -498.9 | |
| 0.00 | 0.71 | 0.00 | 0.47 | -16.00 | 246.63 | 36.07 | 237.11 | 0.6763 | -278.0 | -343.0 | |
| 0.00 | 2.21 | 0.00 | 1.48 | -16.08 | 246.42 | 35.85 | 236.85 | 0.6745 | -864.0 | -762.9 | |
| 3.88 | -48.00 | 2.61 | -48.00 | -16.77 | 246.53 | 35.96 | 236.04 | 0.6801 | -823.2 | 999999 | |
| 1.06 | -48.00 | 0.71 | -48.00 | -16.44 | 246.41 | 35.85 | 236.39 | 0.6768 | -887.0 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.58 | -14.37 | 245.97 | 35.40 | 238.77 | 0.6586 | -397.0 | -328.1 | |
| 6.62 | 42.34 | 4.36 | 27.79 | -15.07 | 245.91 | 35.34 | 237.79 | 0.6624 | -757.0 | -607.1 | |
| 0.00 | 2.47 | 0.00 | 1.65 | -16.54 | 246.13 | 35.56 | 236.04 | 0.6745 | -432.0 | -402.2 | |
| 0.00 | 0.71 | 0.00 | 0.48 | -17.99 | 246.18 | 35.61 | 234.26 | 0.6846 | -646.0 | -561.2 | |
| 14.20 | -55.00 | 9.32 | -55.00 | -15.23 | 245.40 | 34.84 | 237.22 | 0.6579 | -947.6 | 999999 | |
| 0.00 | 0.71 | 0.00 | 0.47 | -17.17 | 244.80 | 34.23 | 234.25 | 0.6646 | -701.0 | -622.6 | |
| 0.00 | 0.88 | 0.00 | 0.56 | -14.81 | 243.53 | 32.96 | 236.34 | 0.6342 | 453.0 | 284.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
