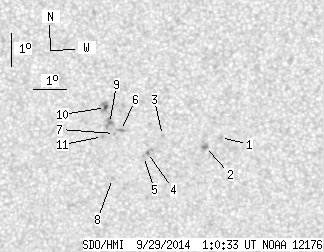

SDO HMI 2014-09-29 01:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.67 | 28.24 | 0.83 | 14.00 | 7.87 | 207.39 | -3.18 | 69.62 | 0.0588 | 27.2 | 275.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-29 01:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.23 | 0.00 | 0.61 | 7.69 | 210.07 | -0.50 | 29.82 | 0.0174 | -906.0 | -826.3 | |
| 0.00 | 3.09 | 0.00 | 1.53 | 7.42 | 209.62 | -0.95 | 57.97 | 0.0195 | -1105.0 | -892.5 | |
| 0.00 | 1.06 | 0.00 | 0.52 | 7.75 | 208.31 | -2.26 | 67.57 | 0.0424 | -1026.0 | -769.8 | |
| 0.35 | 3.09 | 0.17 | 1.53 | 7.23 | 207.86 | -2.71 | 81.27 | 0.0476 | -1044.2 | -763.9 | |
| 0.00 | 0.79 | 0.00 | 0.39 | 7.11 | 207.74 | -2.83 | 84.05 | 0.0495 | -876.0 | -717.0 | |
| 0.00 | 3.00 | 0.00 | 1.49 | 7.89 | 207.04 | -3.53 | 72.92 | 0.0641 | 835.0 | 681.2 | |
| 0.00 | 1.15 | 0.00 | 0.57 | 7.80 | 206.86 | -3.71 | 75.01 | 0.0667 | 745.0 | 575.7 | |
| 0.00 | 1.06 | 0.00 | 0.53 | 6.45 | 206.80 | -3.76 | 95.61 | 0.0658 | 842.0 | 681.0 | |
| 0.00 | 6.09 | 0.00 | 3.02 | 8.10 | 206.70 | -3.87 | 71.44 | 0.0707 | 1219.0 | 942.6 | |
| 1.32 | 6.53 | 0.66 | 3.24 | 8.58 | 206.57 | -3.99 | 65.89 | 0.0758 | 1152.6 | 851.7 | |
| 0.00 | 1.15 | 0.00 | 0.57 | 7.71 | 206.49 | -4.08 | 77.50 | 0.0725 | 1028.0 | 837.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
