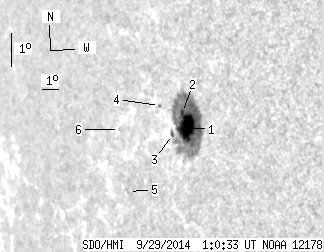

SDO HMI 2014-09-29 01:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 29.28 | 151.28 | 27.94 | 144.53 | -1.18 | 152.16 | -58.40 | 95.55 | 0.8575 | 737.5 | 273.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-29 01:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.14 | 147.93 | 26.83 | 141.00 | -1.16 | 152.27 | -58.29 | 95.55 | 0.8566 | 853.7 | 283.5 | |
| 0.26 | -1.00 | 0.25 | -1.00 | -0.73 | 152.06 | -58.51 | 95.01 | 0.8580 | 519.0 | 999999 | |
| 0.88 | -1.00 | 0.86 | -1.00 | -1.46 | 151.45 | -59.12 | 95.75 | 0.8643 | 46.9 | 999999 | |
| 0.00 | 1.15 | 0.00 | 1.14 | -0.66 | 150.70 | -59.87 | 94.70 | 0.8697 | 380.0 | 296.3 | |
| 0.00 | 1.41 | 0.00 | 1.53 | -3.50 | 148.56 | -62.00 | 97.51 | 0.8908 | -113.0 | -152.1 | |
| 0.00 | 0.79 | 0.00 | 0.86 | -1.65 | 148.14 | -62.42 | 95.40 | 0.8918 | -305.0 | -296.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
