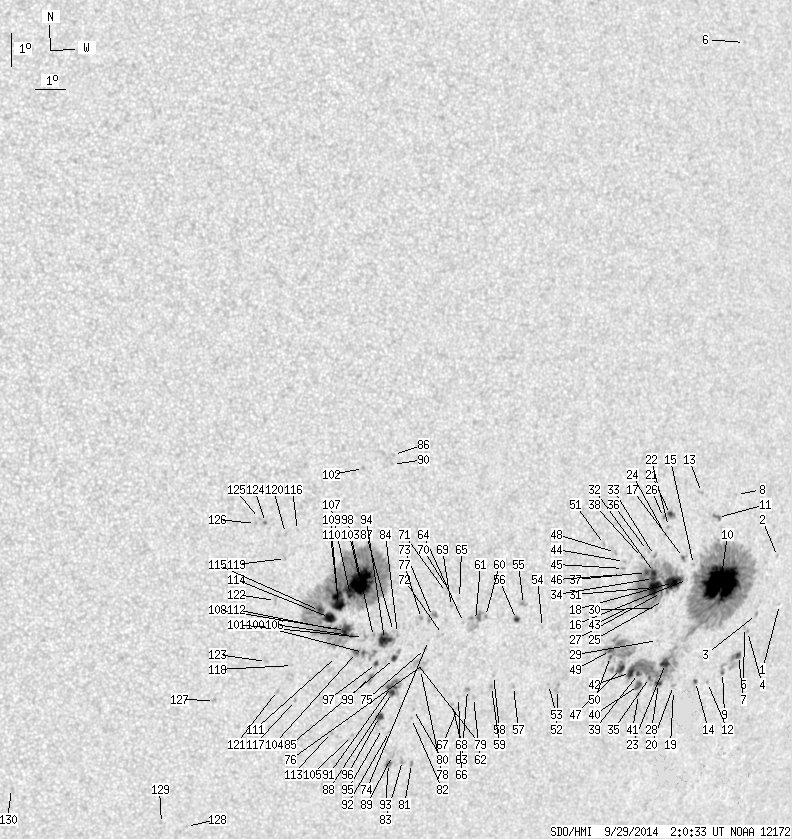

SDO HMI 2014-09-29 02:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 277.34 | 1513.22 | 172.16 | 943.00 | -11.51 | 242.21 | 32.20 | 239.79 | 0.6021 | -3.9 | 12.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-29 02:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.44 | 0.00 | 0.30 | -11.85 | 250.25 | 40.24 | 245.16 | 0.6990 | 464.0 | 423.6 | |
| 0.00 | 0.79 | 0.00 | 0.54 | -10.32 | 249.92 | 39.90 | 247.03 | 0.6878 | 494.0 | 409.7 | |
| 0.00 | 1.85 | 0.00 | 1.26 | -12.10 | 249.37 | 39.36 | 244.34 | 0.6903 | -563.0 | -404.4 | |
| 0.00 | 1.32 | 0.00 | 0.90 | -12.61 | 249.11 | 39.09 | 243.50 | 0.6899 | 501.0 | 463.0 | |
| 0.00 | 1.15 | 0.00 | 0.78 | -12.48 | 248.96 | 38.95 | 243.60 | 0.6876 | 556.0 | 454.5 | |
| 0.00 | 0.88 | 0.00 | 0.55 | 5.51 | 248.10 | 38.08 | 270.21 | 0.6162 | -516.0 | -443.2 | |
| 2.82 | 11.47 | 1.93 | 7.83 | -13.36 | 248.89 | 38.87 | 242.38 | 0.6914 | 472.3 | 155.8 | |
| 0.00 | 0.88 | 0.00 | 0.58 | -8.24 | 248.04 | 38.02 | 248.92 | 0.6556 | 622.0 | 529.0 | |
| 0.88 | 4.94 | 0.60 | 3.36 | -13.86 | 248.35 | 38.33 | 241.40 | 0.6882 | -114.7 | -139.0 | |
| 80.28 | 531.00 | 53.18 | 351.00 | -10.96 | 247.78 | 37.76 | 244.94 | 0.6659 | 1145.6 | 294.9 | |
| 1.59 | 4.50 | 1.03 | 2.93 | -8.90 | 247.38 | 37.36 | 247.61 | 0.6507 | 755.1 | 647.0 | |
| 0.00 | 0.97 | 0.00 | 0.66 | -14.14 | 247.81 | 37.80 | 240.70 | 0.6838 | -496.0 | -415.7 | |
| 0.00 | 1.76 | 0.00 | 1.13 | -8.07 | 246.68 | 36.66 | 248.42 | 0.6380 | 677.0 | 599.5 | |
| 0.88 | 2.38 | 0.59 | 1.60 | -14.07 | 247.33 | 37.31 | 240.47 | 0.6781 | -556.9 | -400.1 | |
| 0.00 | 1.24 | 0.00 | 0.80 | -10.31 | 246.64 | 36.63 | 245.17 | 0.6490 | 747.0 | 603.4 | |
| 0.00 | 0.62 | 0.00 | 0.40 | -10.77 | 246.48 | 36.46 | 244.42 | 0.6495 | 584.0 | 569.1 | |
| 0.97 | 3.62 | 0.63 | 2.33 | -10.06 | 246.23 | 36.21 | 245.27 | 0.6427 | 757.2 | 655.7 | |
| 16.32 | 153.68 | 10.54 | 98.34 | -10.83 | 245.95 | 35.94 | 244.01 | 0.6436 | 954.8 | 569.4 | |
| 0.53 | 67.93 | 0.35 | 45.78 | -14.29 | 246.52 | 36.50 | 239.64 | 0.6704 | -656.7 | -197.7 | |
| 0.00 | 1.76 | 0.00 | 1.17 | -14.13 | 246.49 | 36.47 | 239.83 | 0.6691 | -510.0 | -367.9 | |
| 2.21 | 5.47 | 1.40 | 3.47 | -8.68 | 245.58 | 35.56 | 246.89 | 0.6273 | 834.4 | 631.7 | |
| 0.00 | 1.24 | 0.00 | 0.79 | -9.05 | 245.54 | 35.52 | 246.32 | 0.6288 | 886.0 | 740.0 | |
| 5.47 | -10.00 | 3.59 | -10.00 | -13.40 | 246.05 | 36.03 | 240.52 | 0.6597 | -352.3 | 999999 | |
| 0.00 | 1.24 | 0.00 | 0.79 | -9.29 | 245.46 | 35.44 | 245.91 | 0.6291 | 779.0 | 653.6 | |
| 0.00 | 0.88 | 0.00 | 0.57 | -11.37 | 245.65 | 35.63 | 243.05 | 0.6431 | 273.0 | 247.4 | |
| 0.00 | 1.59 | 0.00 | 1.01 | -8.75 | 245.32 | 35.30 | 246.62 | 0.6245 | 816.0 | 729.7 | |
| 0.26 | -18.00 | 0.17 | -18.00 | -11.11 | 245.54 | 35.52 | 243.34 | 0.6402 | 618.0 | 999999 | |
| 3.00 | -10.00 | 1.98 | -10.00 | -14.02 | 245.89 | 35.87 | 239.57 | 0.6617 | -604.1 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.69 | -12.63 | 245.62 | 35.60 | 241.26 | 0.6501 | -485.0 | -266.8 | |
| 0.00 | 1.85 | 0.00 | 1.19 | -11.61 | 245.42 | 35.40 | 242.56 | 0.6417 | 728.0 | 520.6 | |
| 13.32 | -18.00 | 8.53 | -18.00 | -10.93 | 245.25 | 35.23 | 243.40 | 0.6358 | 1146.6 | 999999 | |
| 2.82 | -18.00 | 1.80 | -18.00 | -10.46 | 245.19 | 35.17 | 244.04 | 0.6323 | 1022.4 | 999999 | |
| 0.00 | 1.94 | 0.00 | 1.23 | -9.92 | 245.12 | 35.10 | 244.78 | 0.6284 | 673.0 | 637.5 | |
| 3.79 | -18.00 | 2.42 | -18.00 | -10.65 | 245.18 | 35.16 | 243.76 | 0.6332 | 1164.6 | 999999 | |
| 0.88 | -10.00 | 0.58 | -10.00 | -13.80 | 245.51 | 35.49 | 239.59 | 0.6560 | -667.3 | 999999 | |
| 0.00 | 2.38 | 0.00 | 1.51 | -9.74 | 244.84 | 34.82 | 244.85 | 0.6240 | 360.0 | 486.1 | |
| 2.47 | -18.00 | 1.57 | -18.00 | -10.44 | 244.89 | 34.87 | 243.88 | 0.6285 | 1044.1 | 999999 | |
| 0.00 | 1.41 | 0.00 | 0.89 | -9.95 | 244.68 | 34.66 | 244.44 | 0.6232 | 929.0 | 781.1 | |
| 1.68 | -10.00 | 1.09 | -10.00 | -13.64 | 245.06 | 35.05 | 239.50 | 0.6500 | -597.9 | 999999 | |
| 3.62 | -10.00 | 2.36 | -10.00 | -14.03 | 245.13 | 35.11 | 239.02 | 0.6532 | -749.7 | 999999 | |
| 0.00 | 1.59 | 0.00 | 1.04 | -14.32 | 245.18 | 35.17 | 238.66 | 0.6556 | -726.0 | -551.9 | |
| 5.73 | -10.00 | 3.71 | -10.00 | -13.59 | 244.75 | 34.73 | 239.35 | 0.6461 | -644.2 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.73 | -11.47 | 244.43 | 34.41 | 242.07 | 0.6291 | 878.0 | 765.5 | |
| 0.00 | 1.41 | 0.00 | 0.89 | -10.03 | 244.02 | 34.00 | 243.89 | 0.6155 | 881.0 | 748.4 | |
| 0.00 | 1.32 | 0.00 | 0.83 | -10.25 | 244.01 | 33.99 | 243.56 | 0.6167 | 868.0 | 740.6 | |
| 0.00 | 1.24 | 0.00 | 0.78 | -10.43 | 243.96 | 33.94 | 243.25 | 0.6172 | 660.0 | 588.6 | |
| 4.85 | 65.64 | 3.12 | 42.03 | -13.43 | 244.35 | 34.33 | 239.27 | 0.6405 | -750.4 | -30.9 | |
| 0.00 | 1.68 | 0.00 | 1.05 | -9.72 | 243.65 | 33.64 | 244.09 | 0.6092 | 837.0 | 736.6 | |
| 1.94 | -47.00 | 1.24 | -47.00 | -12.83 | 243.88 | 33.86 | 239.77 | 0.6311 | -511.3 | 999999 | |
| 0.79 | -47.00 | 0.51 | -47.00 | -13.02 | 243.91 | 33.89 | 239.52 | 0.6327 | -818.2 | 999999 | |
| 0.00 | 1.68 | 0.00 | 1.04 | -9.44 | 243.22 | 33.20 | 244.21 | 0.6022 | -489.0 | -366.1 | |
| 0.00 | 4.06 | 0.00 | 2.55 | -13.95 | 242.10 | 32.08 | 236.82 | 0.6181 | 458.0 | 550.4 | |
| 0.00 | 0.71 | 0.00 | 0.44 | -13.76 | 241.74 | 31.72 | 236.78 | 0.6127 | 835.0 | 689.2 | |
| 0.00 | 0.88 | 0.00 | 0.54 | -11.92 | 241.27 | 31.25 | 239.04 | 0.5941 | 628.0 | 507.6 | |
| 0.00 | 3.26 | 0.00 | 1.98 | -11.14 | 240.49 | 30.48 | 239.56 | 0.5794 | 695.0 | 608.9 | |
| 2.12 | 3.62 | 1.29 | 2.20 | -11.61 | 240.30 | 30.28 | 238.70 | 0.5802 | -633.4 | -481.9 | |
| 0.00 | 1.32 | 0.00 | 0.82 | -13.74 | 240.47 | 30.46 | 235.73 | 0.5980 | 602.0 | 498.2 | |
| 0.00 | 1.06 | 0.00 | 0.65 | -13.34 | 239.70 | 29.68 | 235.62 | 0.5860 | 696.0 | 513.7 | |
| 0.00 | 1.50 | 0.00 | 0.92 | -13.69 | 239.68 | 29.66 | 235.10 | 0.5884 | 759.0 | 638.4 | |
| 0.00 | 1.68 | 0.00 | 1.01 | -11.44 | 239.18 | 29.17 | 237.98 | 0.5655 | 621.0 | 518.3 | |
| 0.00 | 15.09 | 0.00 | 9.02 | -11.55 | 238.84 | 28.83 | 237.52 | 0.5622 | 375.0 | 506.7 | |
| 0.00 | 1.85 | 0.00 | 1.13 | -14.01 | 239.08 | 29.06 | 234.10 | 0.5841 | 641.0 | 539.6 | |
| 0.00 | 2.21 | 0.00 | 1.34 | -13.74 | 238.83 | 28.82 | 234.26 | 0.5790 | 873.0 | 693.0 | |
| 0.00 | 0.79 | 0.00 | 0.47 | -11.58 | 238.43 | 28.41 | 237.08 | 0.5574 | 758.0 | 618.4 | |
| 0.00 | 0.53 | 0.00 | 0.31 | -10.81 | 238.21 | 28.19 | 238.07 | 0.5489 | -571.0 | -482.0 | |
| 0.00 | 0.88 | 0.00 | 0.53 | -13.98 | 238.55 | 28.53 | 233.65 | 0.5777 | 702.0 | 545.8 | |
| 0.00 | 1.68 | 0.00 | 1.02 | -14.33 | 238.56 | 28.54 | 233.15 | 0.5807 | 571.0 | 473.6 | |
| 0.00 | 1.24 | 0.00 | 0.75 | -14.19 | 238.36 | 28.35 | 233.17 | 0.5773 | 710.0 | 511.4 | |
| 0.00 | 1.06 | 0.00 | 0.63 | -11.05 | 237.95 | 27.94 | 237.46 | 0.5476 | -695.0 | -557.4 | |
| 0.00 | 1.06 | 0.00 | 0.62 | -10.51 | 237.80 | 27.78 | 238.17 | 0.5415 | -751.0 | -532.2 | |
| 0.00 | 0.53 | 0.00 | 0.31 | -10.60 | 237.74 | 27.72 | 237.97 | 0.5414 | -731.0 | -714.0 | |
| 0.00 | 0.79 | 0.00 | 0.47 | -11.92 | 237.73 | 27.72 | 235.90 | 0.5517 | 416.0 | 400.2 | |
| 0.00 | 6.79 | 0.00 | 4.00 | -11.33 | 237.33 | 27.31 | 236.42 | 0.5420 | -506.0 | -577.6 | |
| 0.00 | 0.62 | 0.00 | 0.36 | -12.09 | 237.27 | 27.25 | 235.20 | 0.5474 | -642.0 | -547.9 | |
| 0.00 | 0.97 | 0.00 | 0.57 | -12.33 | 237.19 | 27.17 | 234.74 | 0.5485 | -546.0 | -517.9 | |
| 0.00 | 3.18 | 0.00 | 1.88 | -12.81 | 237.21 | 27.19 | 234.04 | 0.5527 | 752.0 | 559.6 | |
| 0.00 | 1.76 | 0.00 | 1.04 | -11.37 | 236.95 | 26.93 | 235.99 | 0.5378 | -839.0 | -710.2 | |
| 0.00 | 2.03 | 0.00 | 1.20 | -13.00 | 237.09 | 27.08 | 233.65 | 0.5528 | 192.0 | 152.3 | |
| 0.00 | 3.18 | 0.00 | 1.88 | -12.76 | 236.93 | 26.91 | 233.83 | 0.5489 | -123.0 | -141.1 | |
| 0.00 | 1.06 | 0.00 | 0.63 | -14.27 | 237.01 | 26.99 | 231.70 | 0.5626 | -600.0 | -513.0 | |
| 0.00 | 1.68 | 0.00 | 1.02 | -16.02 | 237.18 | 27.16 | 229.43 | 0.5799 | -718.0 | -625.3 | |
| 0.00 | 0.88 | 0.00 | 0.53 | -14.56 | 236.98 | 26.96 | 231.26 | 0.5648 | -659.0 | -521.1 | |
| 0.00 | 2.91 | 0.00 | 1.76 | -15.91 | 236.85 | 26.83 | 229.24 | 0.5752 | -736.0 | -632.2 | |
| 0.00 | 1.76 | 0.00 | 1.03 | -11.80 | 236.17 | 26.15 | 234.52 | 0.5319 | -590.0 | -526.7 | |
| 2.29 | 6.62 | 1.35 | 3.88 | -12.59 | 236.15 | 26.13 | 233.28 | 0.5384 | -652.0 | -487.1 | |
| 0.00 | 1.41 | 0.00 | 0.80 | -6.19 | 235.61 | 25.59 | 243.55 | 0.4816 | -631.0 | -506.1 | |
| 0.00 | 0.71 | 0.00 | 0.41 | -11.73 | 236.03 | 26.01 | 234.48 | 0.5296 | -642.0 | -583.9 | |
| 2.38 | 18.26 | 1.41 | 10.79 | -13.68 | 236.21 | 26.19 | 231.72 | 0.5484 | -776.3 | -620.6 | |
| 0.00 | 2.12 | 0.00 | 1.27 | -15.72 | 236.47 | 26.45 | 229.10 | 0.5695 | -481.0 | -587.0 | |
| 0.00 | 0.88 | 0.00 | 0.50 | -6.50 | 235.59 | 25.57 | 242.97 | 0.4835 | -595.0 | -496.2 | |
| 3.53 | -88.00 | 2.08 | -88.00 | -13.49 | 236.15 | 26.13 | 231.94 | 0.5461 | -927.5 | 999999 | |
| 0.00 | 1.24 | 0.00 | 0.74 | -14.94 | 236.26 | 26.24 | 229.97 | 0.5601 | -539.0 | -426.0 | |
| 1.85 | 3.88 | 1.12 | 2.34 | -15.98 | 236.37 | 26.35 | 228.64 | 0.5707 | -940.4 | -754.2 | |
| 12.35 | 19.50 | 7.20 | 11.36 | -11.97 | 235.74 | 25.73 | 233.81 | 0.5282 | -918.5 | -547.2 | |
| 0.00 | 1.59 | 0.00 | 0.94 | -14.82 | 236.00 | 25.99 | 229.85 | 0.5563 | -592.0 | -409.8 | |
| 3.44 | 6.79 | 2.04 | 4.03 | -14.43 | 235.85 | 25.83 | 230.25 | 0.5510 | -808.4 | -585.9 | |
| 1.41 | 2.65 | 0.82 | 1.55 | -12.72 | 235.55 | 25.53 | 232.45 | 0.5324 | -658.0 | -507.2 | |
| 0.00 | 2.21 | 0.00 | 1.28 | -11.85 | 235.36 | 25.34 | 233.58 | 0.5226 | -879.0 | -719.6 | |
| 0.62 | 4.41 | 0.36 | 2.58 | -13.12 | 235.39 | 25.37 | 231.66 | 0.5341 | -826.7 | -680.1 | |
| 0.79 | 9.09 | 0.46 | 5.29 | -12.34 | 235.07 | 25.05 | 232.50 | 0.5234 | -955.3 | -696.4 | |
| 0.00 | 5.82 | 0.00 | 3.37 | -11.86 | 235.02 | 25.00 | 233.19 | 0.5187 | -551.0 | -583.5 | |
| 0.00 | 1.15 | 0.00 | 0.64 | -6.57 | 234.62 | 24.61 | 241.90 | 0.4709 | -820.0 | -677.9 | |
| 43.23 | 435.11 | 24.70 | 248.25 | -10.12 | 234.76 | 24.74 | 235.74 | 0.5006 | -1210.7 | -471.6 | |
| 1.85 | 6.26 | 1.07 | 3.63 | -12.33 | 234.83 | 24.81 | 232.25 | 0.5205 | -891.1 | -520.5 | |
| 0.00 | 1.06 | 0.00 | 0.63 | -14.99 | 234.99 | 24.97 | 228.49 | 0.5467 | -615.0 | -476.6 | |
| 1.41 | -103.00 | 0.81 | -103.00 | -11.78 | 234.60 | 24.59 | 232.86 | 0.5130 | -719.3 | 999999 | |
| 2.03 | -103.00 | 1.16 | -103.00 | -10.51 | 234.46 | 24.44 | 234.75 | 0.5002 | -985.5 | 999999 | |
| 7.76 | -103.00 | 4.46 | -103.00 | -11.61 | 234.39 | 24.37 | 232.88 | 0.5089 | -904.3 | 999999 | |
| 10.15 | -103.00 | 5.79 | -103.00 | -10.77 | 234.08 | 24.06 | 233.88 | 0.4978 | -1071.3 | 999999 | |
| 6.88 | -103.00 | 3.92 | -103.00 | -10.49 | 234.02 | 24.00 | 234.29 | 0.4946 | -1384.6 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.66 | -12.42 | 234.16 | 24.14 | 231.35 | 0.5135 | -640.0 | -547.0 | |
| 1.59 | -103.00 | 0.91 | -103.00 | -11.56 | 234.04 | 24.03 | 232.57 | 0.5044 | -987.6 | 999999 | |
| 0.00 | 1.41 | 0.00 | 0.83 | -14.86 | 234.25 | 24.24 | 227.83 | 0.5374 | -765.0 | -612.1 | |
| 9.00 | -103.00 | 5.13 | -103.00 | -11.17 | 233.81 | 23.79 | 232.93 | 0.4980 | -988.6 | 999999 | |
| 5.56 | -103.00 | 3.16 | -103.00 | -10.93 | 233.45 | 23.44 | 232.90 | 0.4916 | -1164.9 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.54 | -8.38 | 232.54 | 22.53 | 236.24 | 0.4578 | -503.0 | -455.4 | |
| 0.00 | 1.15 | 0.00 | 0.66 | -13.76 | 232.91 | 22.90 | 227.81 | 0.5121 | -742.0 | -566.8 | |
| 0.00 | 0.79 | 0.00 | 0.45 | -12.63 | 232.70 | 22.69 | 229.26 | 0.4987 | -671.0 | -495.9 | |
| 0.00 | 0.97 | 0.00 | 0.54 | -9.24 | 232.20 | 22.19 | 234.28 | 0.4610 | -806.0 | -680.5 | |
| 0.00 | 1.59 | 0.00 | 0.88 | -8.46 | 232.15 | 22.14 | 235.63 | 0.4534 | -564.0 | -619.0 | |
| 0.00 | 1.59 | 0.00 | 0.91 | -13.41 | 232.28 | 22.26 | 227.53 | 0.5015 | -600.0 | -510.9 | |
| 0.00 | 2.65 | 0.00 | 1.48 | -10.54 | 231.96 | 21.95 | 231.71 | 0.4701 | -752.0 | -571.1 | |
| 0.00 | 0.97 | 0.00 | 0.55 | -12.46 | 231.82 | 21.81 | 228.40 | 0.4870 | -681.0 | -548.8 | |
| 0.00 | 1.41 | 0.00 | 0.78 | -8.08 | 231.48 | 21.46 | 235.48 | 0.4415 | -963.0 | -826.9 | |
| 0.00 | 1.06 | 0.00 | 0.58 | -7.95 | 231.28 | 21.26 | 235.47 | 0.4377 | -800.0 | -689.2 | |
| 0.00 | 1.24 | 0.00 | 0.68 | -8.10 | 231.15 | 21.14 | 235.03 | 0.4374 | -814.0 | -707.2 | |
| 0.00 | 2.29 | 0.00 | 1.29 | -13.63 | 230.21 | 20.19 | 224.40 | 0.4813 | -795.0 | -572.2 | |
| 0.00 | 0.97 | 0.00 | 0.56 | -17.70 | 229.69 | 19.67 | 218.13 | 0.5214 | -508.0 | -401.5 | |
| 0.00 | 0.71 | 0.00 | 0.41 | -17.57 | 228.84 | 18.82 | 217.08 | 0.5121 | -700.0 | -555.4 | |
| 0.00 | 0.97 | 0.00 | 0.54 | -16.24 | 223.81 | 13.79 | 210.51 | 0.4527 | -167.0 | -293.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
